VWD Premium Awning Van Window (SR103-AW)

VWD Premium Awning Van Window (SR103-AW) – Sprinter 170 Passenger Side Rear Quarter

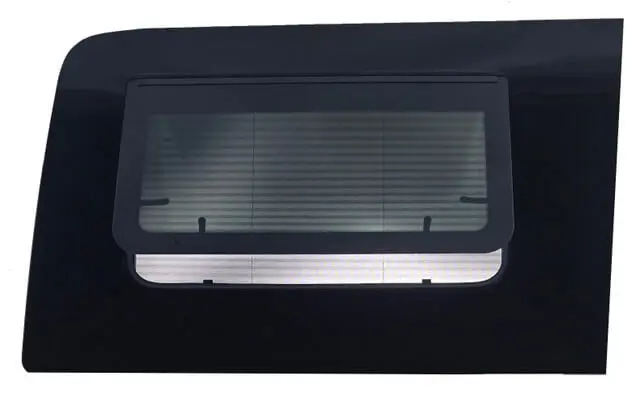

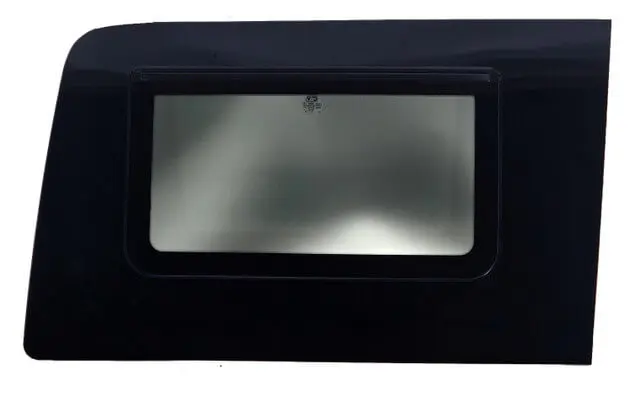

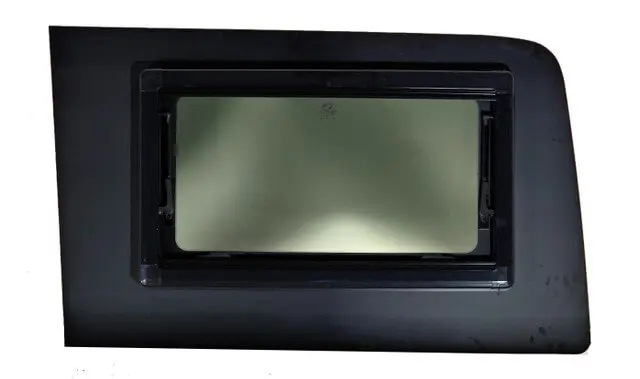

The VWD SR103-AW Premium Awning Window is designed specifically for the passenger-side rear quarter position of Mercedes-Benz Sprinter 170 vans. Featuring piston-assisted awning ventilation, solar privacy glass, an integrated UV shade, and a retractable bug screen, it provides airflow, privacy, and comfort in a streamlined OEM-style design.

Features

• Direct-fit design for Mercedes-Benz Sprinter 170 vans.

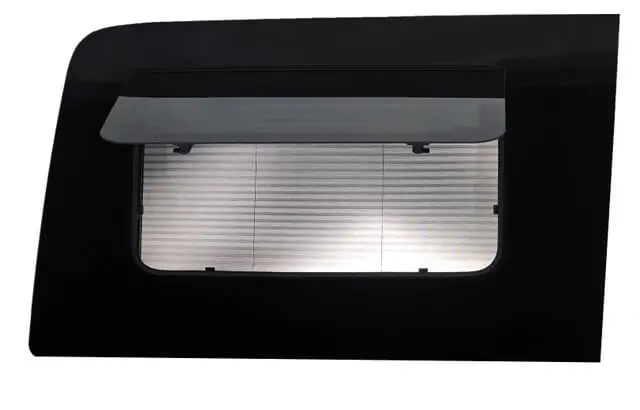

• Piston-driven awning operation for smooth, controlled ventilation.
• Awning design allows ventilation during light rain.
• Built-in retractable bug screen.

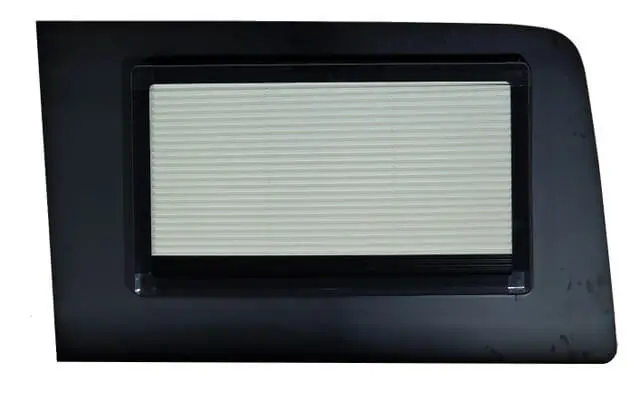

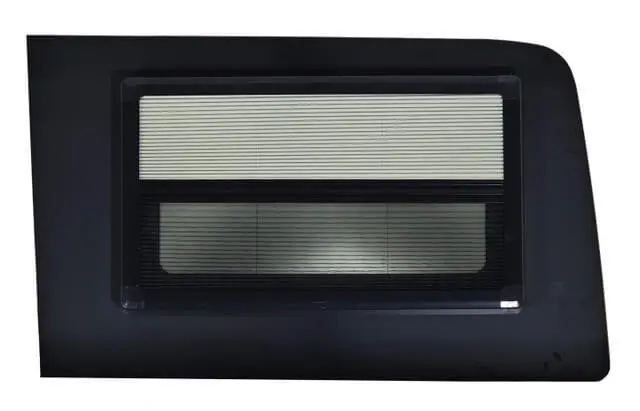

• Integrated pleated UV shade for privacy and heat reduction.
• Solar privacy-tinted tempered glass with 17% tint.
• Flush, modern appearance for a clean vehicle finish.

Specifications

• Product Type: Premium Awning Van Window
• Model: SR103-AW
• SKU: SR103-AW
• Vehicle Compatibility: Mercedes-Benz Sprinter Van
• Model Years: 2007–2026
• Wheelbase: 170"
• Roof Height: Low Roof or High Roof

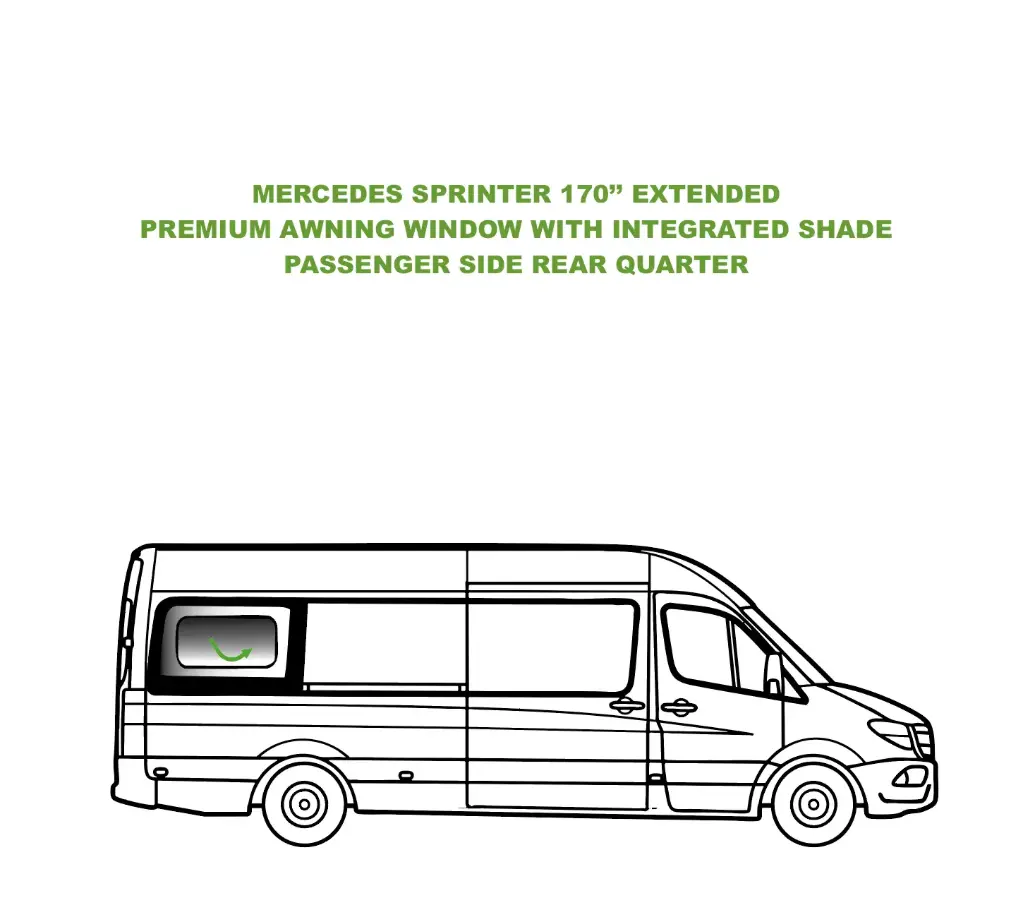

• Position: Passenger Side Rear Quarter
• Glass Type: Solar Privacy Tinted Tempered Glass (17% tint)
• Screen Type: Built-In Retractable Bug Screen
• Shade Type: Integrated Pleated UV Shade
• Internal Frame Depth: 65 mm (2-9/16")
• Overall Dimensions: 1290 mm x 768 mm (50.78" x 30.23")
• Awning Opening Dimensions: 820 mm x 455 mm (32.28" x 17.91")
• Warranty: 1 Year

Compatibility & Installation

• Designed for Mercedes-Benz Sprinter 170 vans (2007–2026).
• Compatible with low roof and high roof configurations.
• Passenger-side rear quarter installation position.
• May not be compatible with certain flare extensions.
• Verify measurements before cutting the vehicle body.
• Follow approved urethane adhesive procedures for installation.
• Protect exposed metal edges after cutting and support the window during adhesive curing.
