STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - (MID & HEAVY TUNE) - Van Compass

Unlock enhanced clearance, ride comfort, and confident handling with the Van Compass STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - MID TUNE (7112-M), specifically designed for 2015–2017 Ford Transit RWD vans. Whether you're running a lightly built camper or a daily work van, this system is tuned for mid-weight builds that need more capability without compromising ride quality.

This Stage 1 kit delivers a true 2.0" lift, improving ground clearance and allowing for larger tires while maintaining factory alignment specs. The MID TUNE variant features components selected for lighter camper conversions, passenger vans, or dual rear wheel vans with moderate payloads.

The front suspension pairs a 0.75” camber correction plate with a Van Compass-tuned coil spring, offering 1.25” of lift and more compression travel. Combined with Bilstein B6 struts, which add another 0.5” of lift and refined damping, your front-end control gets a serious upgrade.

Rear lift is achieved using 2” billet aluminum blocks, while ride stability and comfort are dialed in using Falcon 2.1 Monotube shocks, tuned by Van Compass to handle mid-weight vehicle setups. High-clearance rear shock brackets relocate the shock shaft to prevent trail damage and increase ground clearance.

Note: A professional alignment is required after installation to ensure proper tire wear and handling performance.

• True 2” Lift – Allows for larger tires and improved clearance

• Mid-Weight Tuning – Ideal for passenger vans and lighter camper builds

• Bilstein B6 Front Struts – Add lift and improve front-end damping

• Falcon 2.1 Rear Monotube Shocks (VC Tuned) – Smooth out impacts and reduce sway

• Improved Stability – Handles rough roads and uneven terrain with ease

• High-Clearance Rear Shock Brackets – Protect rear shock shafts from damage

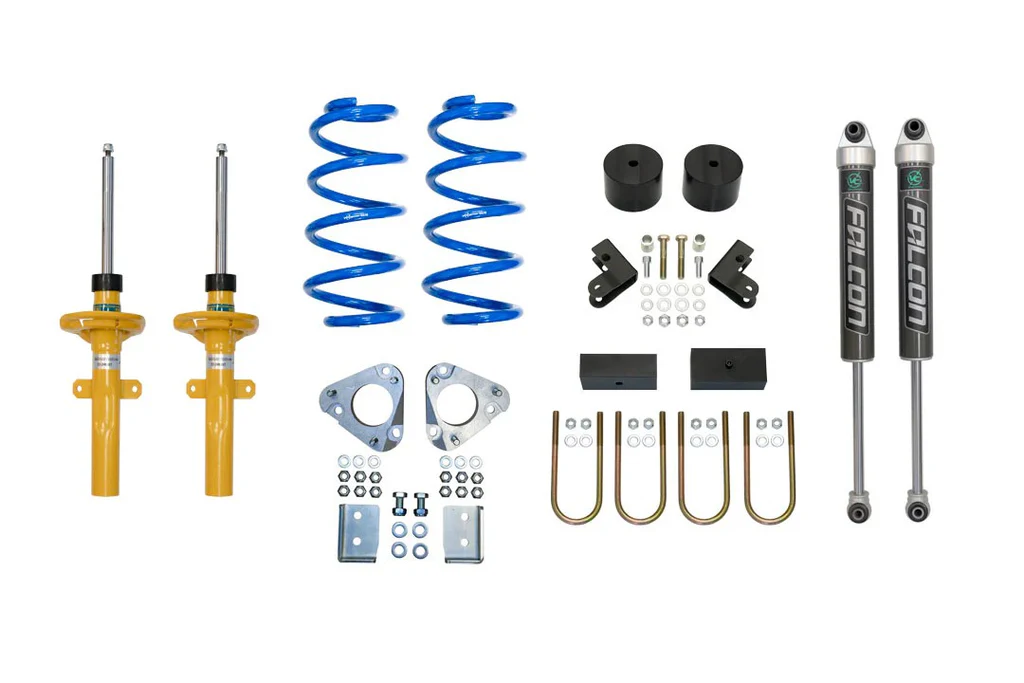

Van Compass STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - MID TUNE (7112-M) Included:

• TOPO 2.0 Front and Rear Lift Kit

• Bilstein B6 Front Strut Kit (1 Pair)

• Tuned Falcon 2.1 Monotube Rear Shocks (1 Pair)

• High-Clearance Rear Shock Brackets

• Complete hardware kit and detailed installation instructions

• Compatible with: 2015–2017 Ford Transit RWD, Single and Dual Rear Wheel

• MID TUNE: Best for lighter van builds or moderately loaded work vans

• Max Recommended Tire Size: 265/75/16

  • May require minor pinch seam trimming

  • Achieves up to 12.75” of ground clearance under front crossmember with this size

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 2.1 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Video: Van Compass Ford Transit RWD (2013+) Stage 1 Topo 2.0 System (Single or Dual Rear Wheel)

Video: 2020 Ford Transit AWD Front suspension overview

Designed for heavy-duty builds and serious adventure rigs, the Van Compass STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - HEAVY TUNE (7112-H) transforms your 2015–2017 Ford Transit RWD into a more capable and confident vehicle, ready for demanding terrain and greater payloads. This suspension upgrade is engineered specifically for heavily outfitted camper vans, overland conversions, and fully loaded work vans.

This Stage 1 kit delivers a true 2.0” lift for increased ground clearance, better approach and departure angles, and improved overall ride quality—while still maintaining factory alignment specs.

The front lift system includes a 0.75” camber correction plate combined with a HEAVY TUNE coil spring, engineered with increased spring rate and length to support heavier vehicle loads. The result is approximately 1.25” of lift, better compression travel, and stable handling even when fully loaded.

A Bilstein B6 front strut adds another 0.5” of preload lift and enhances damping characteristics, improving control and reducing front-end dive under braking or compression.

In the rear, a 2” billet aluminum lift block provides the lift, while Van Compass-tuned Falcon 2.1 Monotube shocks (HEAVY TUNE) deliver superior damping performance. These heavy-duty shocks feature a large 2.35” piston, tuned to manage extra weight and rough road conditions with confidence. High-clearance shock relocation brackets keep the shaft out of harm’s way while boosting ground clearance.

Note: A professional alignment is mandatory after installation to avoid adverse tire wear and degraded handling performance.

• True 2” Lift – Increases off-road capability and allows fitment of larger tires

• Heavy Load Tuning – Ideal for high-roof campers, overland builds, and cargo-heavy vans

• Bilstein B6 Struts – Provide lift and improve front-end handling

• Falcon 2.1 Monotube Rear Shocks (Heavy Tune) – Tuned for maximum damping under load

• Enhanced Control – Handles washboard roads, potholes, and side-to-side sway

• High-Clearance Rear Shock Brackets – Keeps critical components protected on rough trails

Van Compass STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - HEAVY TUNE (7112-H) Included:

• TOPO 2.0 Front and Rear Lift Kit

• Bilstein B6 Front Strut Kit (1 Pair)

• HEAVY TUNE Falcon 2.1 Monotube Rear Shocks (1 Pair)

• High-Clearance Rear Shock Relocation Brackets

• Complete hardware kit and installation instructions

• Ford Transit RWD (2015–2017)

• Fits both Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) models

• HEAVY TUNE recommended for:

  • Fully built camper vans

  • Overland/conversion vans

  • Heavily loaded work vehicles

• Recommended Max Tire Size: 265/75/16

  • Requires minor trimming of inner pinch seams

  • Delivers up to 12.75” ground clearance under front crossmember with this tire size

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 2.1 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Video: Van Compass Ford Transit RWD (2013+) Stage 1 Topo 2.0 System (Single or Dual Rear Wheel)

Video: 2020 Ford Transit AWD Front suspension overview
