STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - LIGHT/MID TUNE & MID/HEAVY TUNE - Van Compass

Looking to elevate the comfort, handling, and versatility of your Van Compass STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - LIGHT/MID TUNE (7114-LM) is the ideal solution for light to moderately outfitted vans, including passenger vans, partial camper builds, and dual rear wheel work vans that need a performance boost without compromising ride quality.

This precision-engineered system provides a true 2” of lift, improved ground clearance, and optimized ride dynamics—allowing you to run larger tires and explore rougher roads with confidence.

At the core of the Stage 2 TOPO system is a 0.75” camber correction plate and light/mid-tuned coil springs that deliver approximately 1.25” of front lift. These springs are carefully calibrated to improve comfort, maintain ride height under modest loads, and increase compression travel for better front-end control.

The rear lift setup features 2” billet aluminum blocks and bump stop spacers to retain proper suspension geometry. Included rear shock relocation brackets raise the lower mounting point of the shocks, eliminating the risk of bottoming out and increasing ground clearance under the axle tube.

The highlight of this system is the inclusion of Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks, VC-tuned for light/mid-weight builds. These high-performance dampers feature a Fast Adjust knob with 10 intuitive settings, allowing you to fine-tune the rear suspension between soft and plush or firm and planted, depending on load and terrain.

Paired with Bilstein B6 front struts, this kit drastically enhances both front and rear suspension dynamics—offering greater stability, reduced sway, and improved comfort across broken pavement and off-road surfaces.

Note: A professional alignment is required after installation to ensure safe handling and prevent tire wear.

• Designed for light to moderately outfitted Transit vans

• True 2" suspension lift for better ground clearance and larger tire fitment

• Bilstein B6 front struts for improved damping and handling

• Falcon 3.3 SP2 Adjustable Rear Shocks with 10-position Fast Adjust knob

• Enhanced comfort and stability across varied terrain

• Increased resistance to bottoming out under moderate loads

• Reduced body roll, sway, and harsh impacts

• Shock relocation brackets improve clearance and protect components

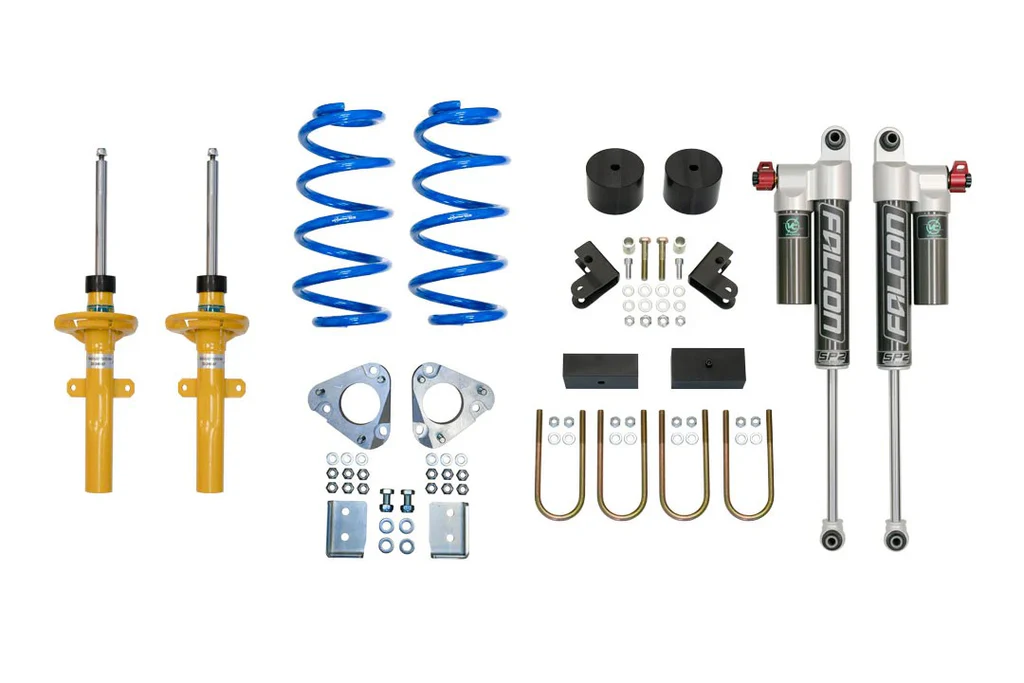

Van Compass STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - LIGHT/MID TUNE (7114-LM) Included :

• TOPO 2.0 Front and Rear Lift Kit

• Bilstein B6 Front Strut Kit (1 pair)

• VC-Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 pair)

• High Clearance Rear Shock Relocation Brackets

• 2" Rear Lift Blocks and Bump Stop Spacers

• All Required Hardware & Installation Instructions

• Ford Transit RWD (2015–2017)

• Fits Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) configurations

• Ideal for:

  • Passenger vans

  • Light/mid camper builds

  • DRW work vans with moderate loads

• 265/75/16 maximum

  • Minor trimming of inner pinch weld required

  • Up to 12.75” of front ground clearance achievable with this size

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 3.3 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Falcon 3.3 Shock Settings Guide

Video: Van Compass Ford Transit RWD (2013+) Stage 2 Topo 2.0 System (Single or Dual Rear Wheel)

Video: 2020 Ford Transit AWD front suspension overview

Video: how to adjust your Van Compass Falcon Shocks

Upgrade your heavily loaded Ford Transit RWD for better performance, control, and off-road capability with the Van Compass STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - MID/HEAVY TUNE (7114-MH). Designed specifically for heavier Transit builds—such as full camper conversions, overlanders, and fully loaded dual rear wheel work vans—this kit offers a true 2" suspension lift, enhanced handling, and ride customization for any terrain.

The Stage 2 TOPO system begins with a 0.75” camber correction plate and mid/heavy-rated front coil springs that deliver approximately 1.25” of front lift and increased compression travel. These coil springs are tuned to handle extra weight without compromising comfort, making them ideal for high-roof campers and fully built-out conversions.

Rear lift is achieved via 2” billet aluminum blocks and bump stop spacers, maintaining factory suspension geometry while offering added clearance. Also included are rear shock relocation brackets, which allow trimming of factory shock mounts for better ground clearance and protection of rear suspension components.

At the heart of the Stage 2 MID/HEAVY TUNE kit is a pair of Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks, precision-tuned by Van Compass to accommodate heavier payloads. Featuring a 10-position Fast Adjust knob, these shocks let you instantly dial in your ride—from smooth, compliant travel over rough trails to firmer, more controlled damping for highway cruising and load stability.

The system also includes Bilstein B6 front struts, which improve front-end damping and enhance the van’s handling and response, especially under increased weight.

Note: A professional alignment is required after installation. Improper alignment may result in abnormal tire wear and degraded handling performance.

• Optimized for heavily outfitted Transit RWD vans (2015–2017)

• True 2” suspension lift for better ground clearance and tire fitment

• Heavy-tuned front springs designed for full camper builds or work vans with equipment

• Falcon 3.3 SP2 Adjustable Rear Shocks with 10-position Fast Adjust knob

• Enhanced stability, ride comfort, and shock absorption over variable terrain

• Significantly improved handling and reduced sway under heavy loads

• High-clearance shock brackets eliminate low-hanging mounts and improve axle tube clearance

Van Compass STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2015-2017 - MID/HEAVY TUNE (7114-MH) Included :

• TOPO 2.0 Front and Rear Lift Kit

• Heavy-Tuned Front Coil Springs

• Bilstein B6 Front Strut Kit (1 pair)

• VC-Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 pair)

• High Clearance Rear Shock Relocation Brackets

• 2" Rear Lift Blocks & Bump Stop Spacers

• All Necessary Installation Hardware

• Ford Transit RWD (2015–2017)

• Fits Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) vans

• Best for:

  • Full camper conversions

  • High-roof models with gear/storage

  • Work vans with heavy tools or equipment

• Up to 265/75/16

  • May require minor trimming of the inner pinch weld

  • Achieves up to 12.75” ground clearance under the front suspension crossmember

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 3.3 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Falcon 3.3 Shock Settings Guide

Video: Van Compass Ford Transit RWD (2013+) Stage 2 Topo 2.0 System (Single or Dual Rear Wheel)

Video: 2020 Ford Transit AWD front suspension overview

Video: how to adjust your Van Compass Falcon Shocks
