STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - (LIGHT/MID TUNE & MID/HEAVY TUNE) - Van Compass

Upgrade your ride and take control of your driving experience with the Van Compass STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - LIGHT/MID TUNE (7113-LM) for the 2018+ Ford Transit RWD. Built for single and dual rear wheel vans with moderate to light build weights—such as weekend campers, partial conversions, and daily-driven work vans—this system delivers exceptional comfort, handling, and adaptability for all road conditions.

This Stage 2 kit provides a true 2.0” of lift, improving ground clearance, approach angles, and overall driving performance while maintaining factory alignment specs.

The Topo 2.0 front lift system features a 0.75” camber correction plate and LIGHT/MID tuned coil springs, delivering about 1.25” of front lift with enhanced compression travel for better shock absorption and ride quality. The front is further enhanced by Bilstein B6 struts, which offer improved front-end damping and responsiveness.

In the rear, 2” billet aluminum lift blocks and bump stop spacers help retain proper geometry under load. High-clearance rear shock brackets are included to raise the shock mount and eliminate vulnerable low-hanging factory brackets, significantly improving off-road capability.

The real game-changer? The Falcon 3.3 SP2 Adjustable Rear Shocks, specifically tuned by Van Compass. With 10 firmness settings controlled by an easy-to-reach Fast Adjust knob, you can dial in the perfect ride for any terrain—from plush comfort on rough trails to firm control on the highway.

Note: A professional alignment is required after installation to ensure proper handling and prevent premature tire wear.

• True 2” lift improves off-road performance and tire clearance

• Light/Mid Tune – Ideal for lighter camper builds and daily drivers

• Bilstein B6 Front Struts – Improve damping and reduce body motion

• Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks – 10-position Fast Adjust knob for quick, on-the-fly tuning

• Rear Shock Relocation Brackets – Raise clearance and protect components

• Increased stability in crosswinds and during cornering

• Reduced jostling over uneven surfaces and washboard roads

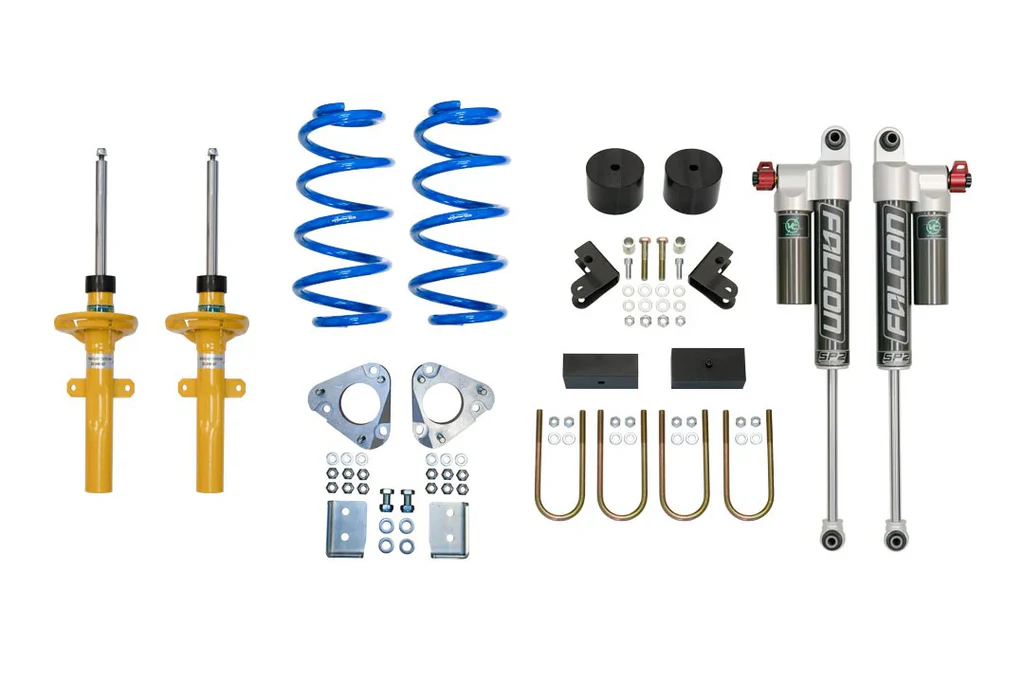

Van Compass STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - LIGHT/MID TUNE (7113-LM) Included :

• TOPO 2.0 Front and Rear Lift Kit

• Bilstein B6 Front Strut Kit (1 pair)

• Falcon 3.3 SP2 Adjustable Rear Shocks (1 pair)

• High Clearance Rear Shock Relocation Brackets

• 2" Rear Lift Blocks and Bump Stop Spacers

• Complete Hardware & Installation Instructions

• Ford Transit RWD (2018+)

• Compatible with Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) models

• Recommended for:

  • Weekend camper builds

  • Light to mid-weight conversions

  • Daily driven cargo and passenger vans

• Recommended Max Tire Size: 265/75/16

  • May require minor trimming at the inner pinch seam

  • Provides up to 12.75” ground clearance under front crossmember with this tire size

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 3.3 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Falcon 3.3 Shock Settings Guide

Video: Van Compass Ford Transit RWD (2013+) Stage 2 Topo 2.0 System (Single or Dual Rear Wheel)

Video: 2020 Ford Transit AWD front suspension overview

Video: How to adjust your Van Compass Falcon Shocks

Built for strength and performance, the Van Compass STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+, MID/HEAVY TUNE (7113-MH) is designed for heavier camper builds, overland conversions, work vans with built-in equipment, and any 2018+ RWD Ford Transit carrying serious weight. Whether your van is fully outfitted for adventure or working hard every day, this kit provides the durability, clearance, and control you need.

The system delivers a true 2.0” of lift while preserving factory alignment specs—ensuring confident handling, improved suspension geometry, and plenty of room for larger tires and added gear.

At the heart of the Stage 2 MID/HEAVY system is a 0.75” camber correction plate combined with heavier-rate, tuned front coil springs, engineered specifically for vans with added front weight (e.g., bumpers, winches, or storage). These springs offer approximately 1.25” of lift, extended compression travel, and improved control under load.

Rear lift is accomplished using 2” billet aluminum lift blocks and bump stop spacers, designed to maintain ideal suspension geometry while supporting the added mass. Rear shock relocation brackets raise the shock mount point and eliminate low-hanging brackets—critical for maintaining clearance under the axle on rough terrain.

The system features Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks, VC-tuned specifically for heavier builds. The Fast Adjust knob allows you to choose between 10 levels of damping on the fly—go soft for rough dirt roads or stiffen up for long highway drives with crosswinds or heavy loads.

Up front, Bilstein B6 front struts enhance control and ride quality, increasing damping force and reducing front-end dive and sway, even under challenging driving conditions.

Note: A professional alignment is required after lift kit installation to ensure safe driving and proper tire wear.

• Designed for mid/heavy-weight camper vans, overlanders, and work vans

• True 2” lift front and rear for greater clearance and a level stance

• Bilstein B6 Front Struts for increased front-end stability

• Falcon 3.3 SP2 Adjustable Rear Shocks with 10-position Fast Adjust knob

• Improved ride quality under heavy loads

• Reduced rear sag and side-to-side sway

• Enhanced control on broken pavement, washboard roads, and steep inclines

• Rear shock relocation brackets increase underbody clearance

Van Compass STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+, MID/HEAVY TUNE (7113-MH) Included :

• TOPO 2.0 Front and Rear Lift Kit

• Bilstein B6 Front Strut Kit (1 pair)

• Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 pair)

• High Clearance Rear Shock Relocation Brackets

• 2" Rear Lift Blocks and Bump Stop Spacers

• All Required Hardware & Installation Instructions

• Ford Transit RWD (2018+)

• Fits Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) configurations

• Ideal for:

  • Mid-to-heavy camper builds

  • Fully outfitted work vans

  • Overland conversions with front/rear accessories

• Recommended Max Tire Size: 265/75/16

  • Minor pinch weld trimming may be required

  • Achieves up to 12.75” of ground clearance under front crossmember with this tire size

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 3.3 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Falcon 3.3 Shock Settings Guide

Video: Van Compass Ford Transit RWD (2013+) Stage 2 Topo 2.0 System (Single or Dual Rear Wheel)

Video: 2020 Ford Transit AWD front suspension overview

Video: How to adjust your Van Compass Falcon Shocks
