STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - (LIGHT/MID TUNE & MID/HEAVY TUNE) - Van Compass

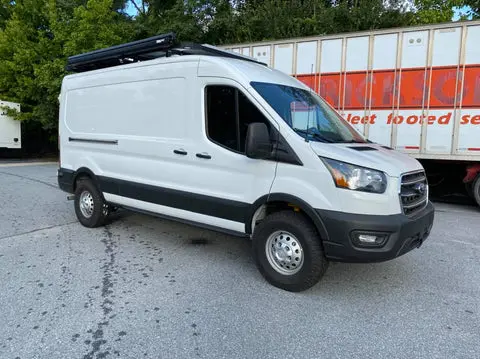

Upgrade your 2018+ Ford Transit RWD with the Van Compass Stage 2 TOPO 2-Inch Lift Kit, designed to improve ground clearance, suspension control, stability, and ride quality. Available in Light/Mid Tune and Mid/Heavy Tune, the system is suited to everything from daily-driven vans and lighter camper builds to fully equipped overland and work vans. The kit fits both Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) configurations.

FEATURES & INCLUDED COMPONENTS

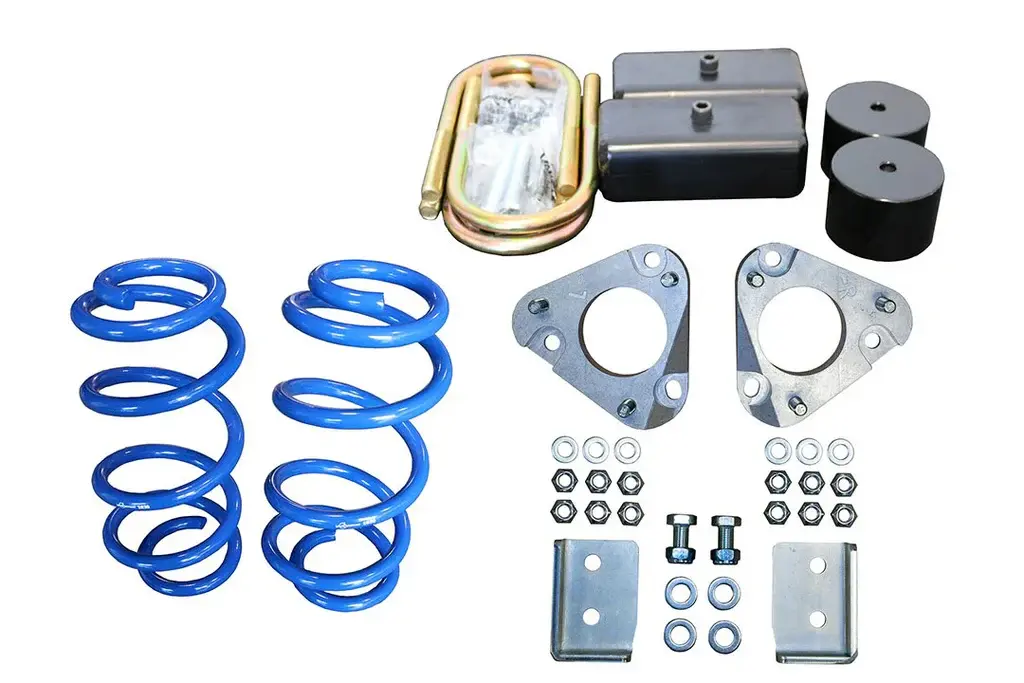

• True 2" lift with a 0.75" camber correction plate and tuned front coil springs providing approximately 1.25" of front lift with increased compression travel.

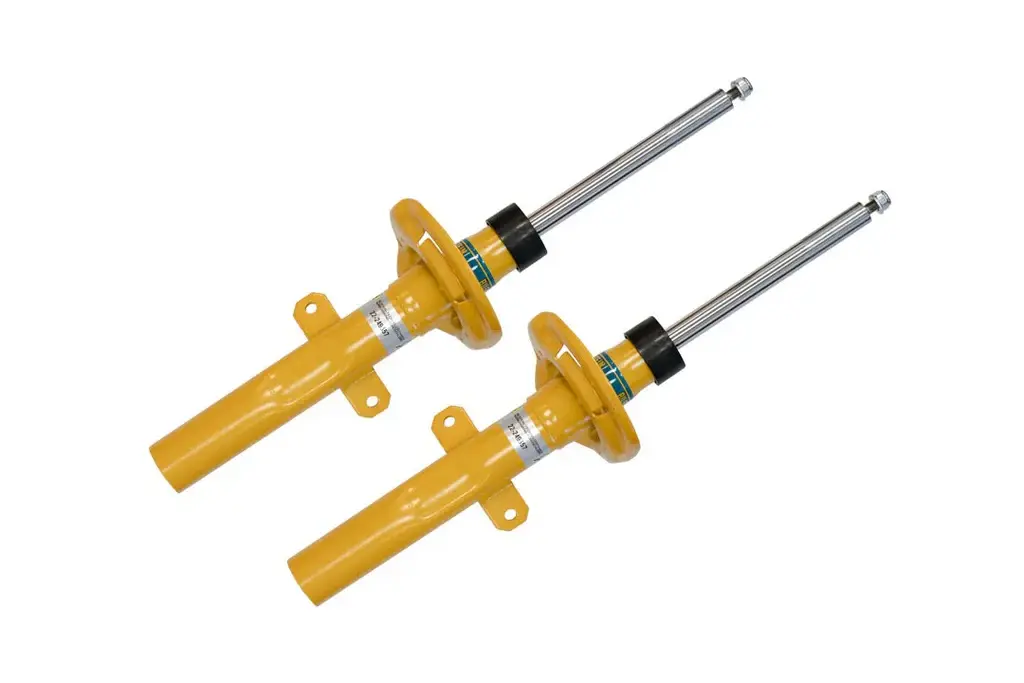

• Bilstein B6 front struts improve front-end damping, responsiveness, and stability.
• 2" billet aluminum rear lift blocks and bump stop spacers maintain proper suspension geometry under load.

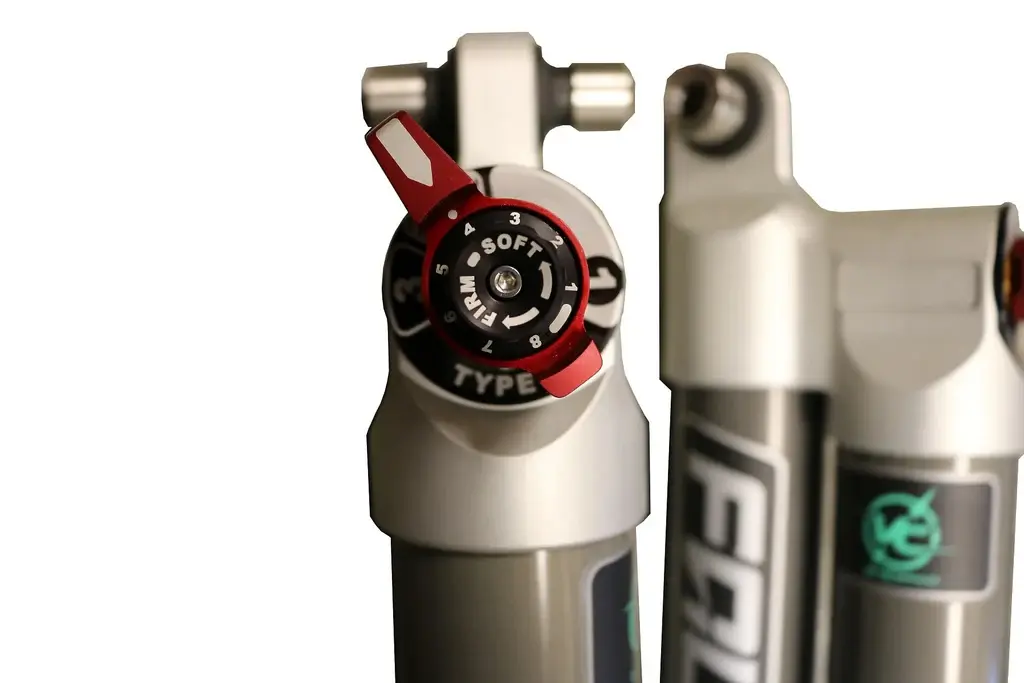

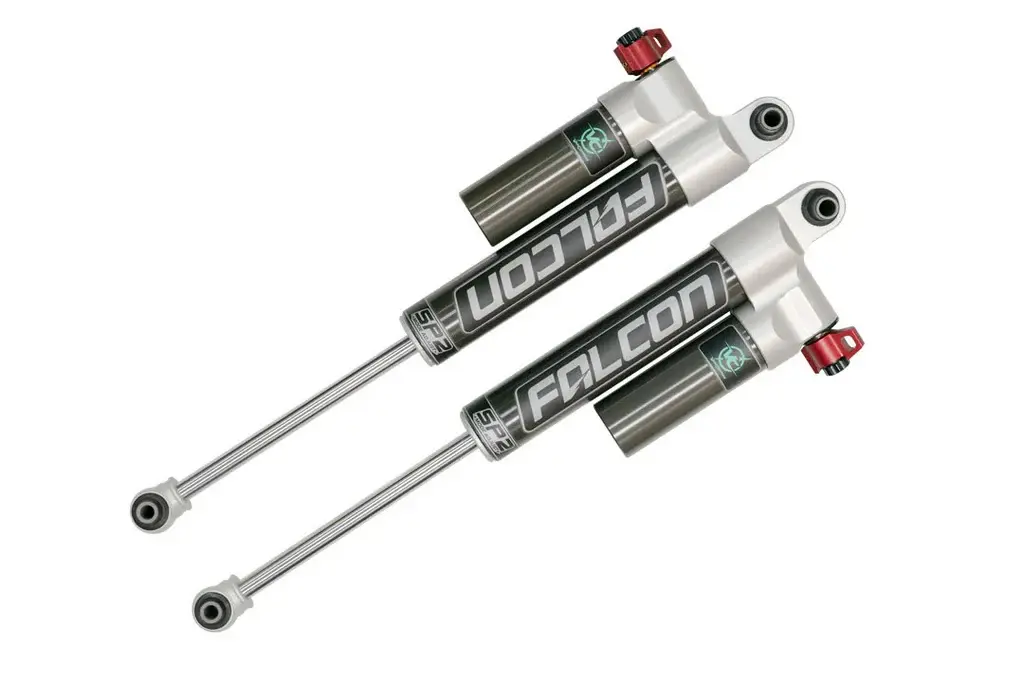

• Van Compass-tuned Falcon 3.3 SP2 adjustable rear reservoir shocks feature a 10-position Fast Adjust knob for tuning damping to different loads and driving conditions.
• High-clearance rear shock relocation brackets raise the shock mounting point and improve clearance beneath the axle.

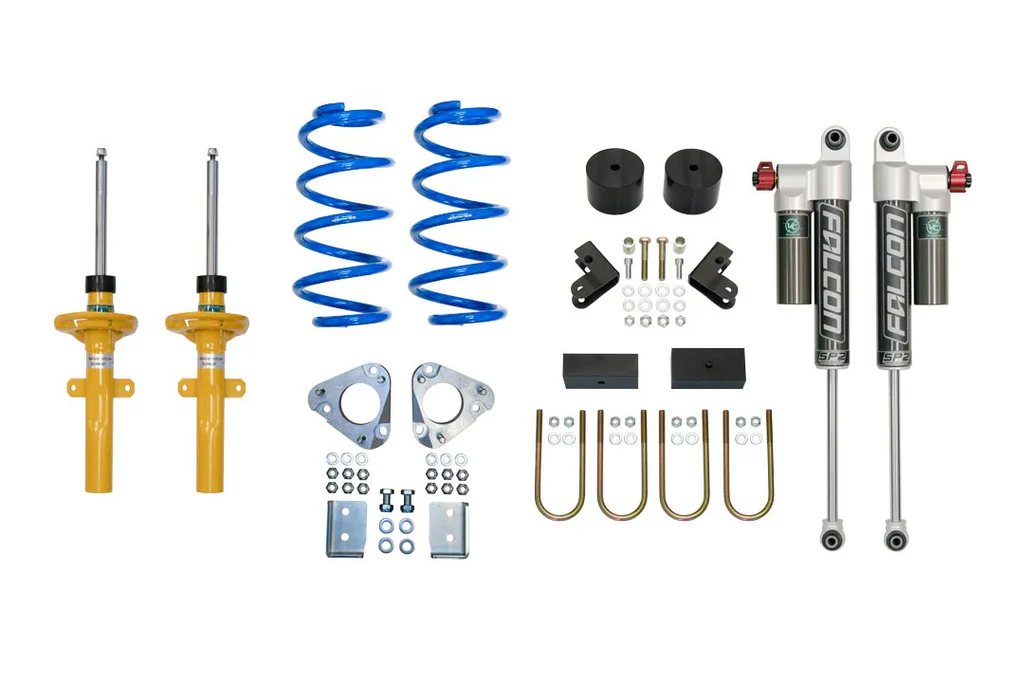

• Includes the TOPO 2.0 front and rear lift kit, Bilstein B6 front struts, Falcon 3.3 SP2 rear shocks, shock relocation brackets, rear lift blocks, bump stop spacers, hardware, and installation instructions.

TUNE OPTIONS, FITMENT & INSTALLATION

• Light/Mid Tune (7113-LM): Designed for lighter camper builds, partial conversions, passenger vans, and daily-driven cargo or work vans.
• Mid/Heavy Tune (7113-MH): Designed for heavier camper builds, fully outfitted work vans, and overland conversions carrying additional equipment and accessories.
• Fitment: 2018+ Ford Transit RWD, compatible with SRW and DRW configurations.
• Recommended maximum tire size: 265/75R16; minor trimming at the inner pinch seam may be required. This tire size can provide up to 12.75" of ground clearance under the front crossmember.
• Professional wheel alignment is required after installation to ensure proper handling and prevent premature tire wear.
• Special order: Non-exchangeable and non-refundable. Allow 2–4 weeks for processing and shipping.

2013+ Transit Topo Front Kit Installation Instructions  2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 3.3 Installation Instructions  2013+ Transit High Clearance Shock Brackets Installation Instructions

Falcon 3.3 Shock Settings Guide

Video: Van Compass Ford Transit RWD (2013+) Stage 2 Topo 2.0 System (Single or Dual Rear Wheel)

Video: 2020 Ford Transit AWD front suspension overview  Video: How to adjust your Van Compass Falcon Shocks
