STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+ (MID TUNE & HEAVY TUNE) - Van Compass

Unlock your Ford Transit AWD’s full adventure potential with the Van Compass STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, MID TUNE (7211-M). Designed specifically for 2020+ AWD Transit vans, this entry-level suspension upgrade improves stance, increases ground clearance, and enhances both on- and off-road handling—making it the ideal solution for lighter builds and passenger van conversions.

The system delivers a true 2" lift while preserving drivability and protecting front CV shaft geometry—critical for AWD models.

• Front lift is achieved via a 0.75" camber-correcting plate and tuned coil spring, offering an additional 1.25" of lift and improved compression travel.

• Rear lift comes from 2" billet aluminum blocks paired with bump stop spacers to retain factory suspension dynamics.

At the heart of the Stage 1 system are VC-tuned Falcon 2.1 Monotube Shocks, designed to handle uneven terrain and heavy loads while delivering a noticeably more stable ride.

• Reduces body roll and harsh sway

• Enhances control over bumps and rough surfaces

• Smooths out jarring impacts for long-haul comfort

To improve clearance and reduce hang-up risk, the kit includes rear shock relocation brackets. These allow trimming of the factory low-hanging mounts beneath the axle tube, helping you clear more obstacles with ease.

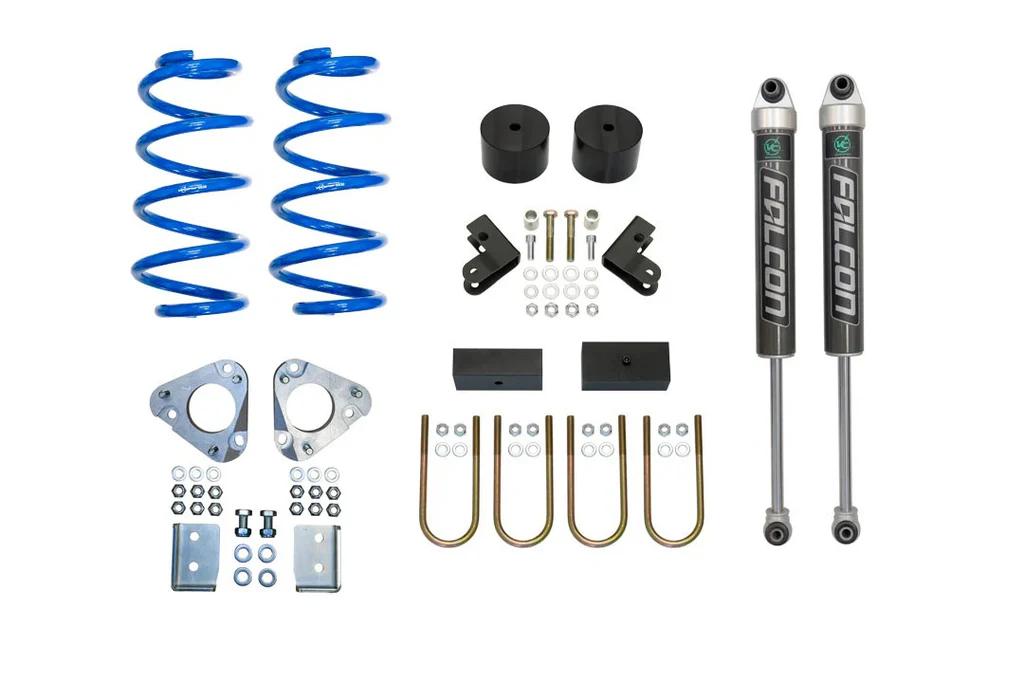

Van Compass STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, MID TUNE (7211-M) Include :

• TOPO 2.0 Front Coil Spring + Camber Correction Plate

• Rear 2" Billet Lift Blocks

• Rear Bump Stop Spacers

• VC-Tuned Falcon 2.1 Monotube Rear Shocks (1 pair)

• High Clearance Rear Shock Relocation Brackets

• All Required Hardware and Instructions

• Professional alignment is required after installation. Failure to align may result in adverse tire wear and poor handling.

• Bilstein B6 struts are not included and not recommended for AWD models due to increased CV boot wear risk.

• True 2” overall lift with factory geometry retained

• Increased approach, break-over, and departure angles

• Enhanced stability, cornering, and ride control

• Improved confidence on rough roads and light off-road terrain

• Allows fitment of larger tires for added traction and comfort

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 2.1 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Video: Van Compass Ford Transit AWD (2020+ SRW/DRW) Stage 1 Topo 2.0 System

Video: 2020 Ford ransit AWD front suspension overview

Enhance the capability and ride performance of your 2020+ Ford Transit AWD with the Van Compass STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, HEAVY TUNE (7211-H). Built for heavily outfitted vans, full conversions, and work-ready rigs, this system offers a true 2-inch lift with components tuned specifically for increased payloads—delivering confidence both on and off the pavement.

Engineered around the AWD Transit platform’s front CV constraints, the kit lifts your van without compromising drivability or durability:

• Front lift uses a 0.75" camber-correcting plate combined with a heavy-tuned coil spring, offering 1.25" of additional height and improved compression travel to better handle added weight and road roughness.

• Rear lift is achieved via a 2" billet aluminum block with bump stop spacers, maintaining proper suspension geometry.

• Rear shock relocation brackets are included to allow trimming of the factory low-hanging mounts—maximizing rear axle ground clearance.

The included VC-tuned Falcon 2.1 Monotube Shocks – Heavy Tune are designed for high payload vans and overland builds. Featuring a larger piston and robust construction, these shocks enhance stability and ride control under load, smoothing out impacts and reducing sway—no matter how packed your build is.

Van Compass STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, HEAVY TUNE (7211-H) Include:

• TOPO 2.0 Front Coil Spring + 0.75" Camber Correction Plate (Heavy Tune)

• Rear 2" Billet Lift Blocks

• Rear Bump Stop Spacers

• VC-Tuned Falcon 2.1 Monotube Rear Shocks – Heavy Tune (1 Pair)

• High Clearance Rear Shock Relocation Brackets

• Complete Installation Hardware and Instructions

Notes

Professional alignment is mandatory post-installation to prevent abnormal tire wear and handling issues

Bilstein B6 struts are not included or recommended for AWD models, as they may cause CV boot failure due to excessive length

• True 2” lift improves stance and allows for larger tires

• Tuned for heavier vans and conversion builds

• Increases approach, break-over, and departure angles

• Reduces wind sway and improves stability with added load

• Better control on rough roads, gravel, and uneven terrain

• Maintains suspension geometry for a safe, aligned ride

• Enhances bottom-out resistance for full-load driving

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 2.1 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Video: Van Compass Ford Transit AWD (2020+ SRW/DRW) Stage 1 Topo 2.0 System

Video: 2020 Ford ransit AWD front suspension overview
