STAGE 4 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - (LIGHT/MID TUNE & MID/HEAVY TUNE) - Van Compass

Elevate your ride — literally and figuratively — with the Van Compass STAGE 4 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - LIGHT/MID TUNE (7117-LM), designed for 2018+ Ford Transit RWD models (Single or Dual Rear Wheel). Engineered for light to moderately built-out vans and passenger models, this Light/Mid Tune version delivers a true 2-inch lift while giving you full control over ride comfort, performance, and terrain adaptability.

This system is ideal for daily drivers, weekend adventurers, and lighter camper builds looking for improved ground clearance, ride quality, and handling — both on-road and off.

NOTE: A professional alignment is required after installation to avoid adverse handling and uneven tire wear.

• True 2” Lift for enhanced stance, tire clearance, and off-road capability

• Custom-Tuned for Light to Mid-Weight Builds, ensuring ideal balance of support and comfort

• Falcon 3.3 Fast Adjust Rear Shocks with 10 intuitive damping settings — go from soft off-road comfort to firm highway control in seconds

• Improved Road Feel & Stability on broken pavement and winding roads

• Enhanced Off-Road Angles (approach, breakover, departure)

• Reduced Body Sway & Bottoming Out, even when loaded with gear

• Precision 0.75" camber correction plates with matched coil springs for 1.25" of front lift

• Increases compression travel and front-end handling response

• Paired with Bilstein B6 Front Struts for increased damping control

• 5-leaf mini spring pack boosts rear spring rate by 10–15%, lifting the rear between 2.0" and 2.5" depending on weight

• Friction-reducing leaf tips ensure quiet, smooth articulation

• Shock relocation brackets allow trimming of factory mounts for better clearance beneath the axle

• Falcon 3.3 SP2 Adjustable Rear Shocks, VC-tuned with external reservoirs and a Fast Adjust knob for instant control

• Easily tailor your suspension for off-road exploration, city commuting, or highway cruising

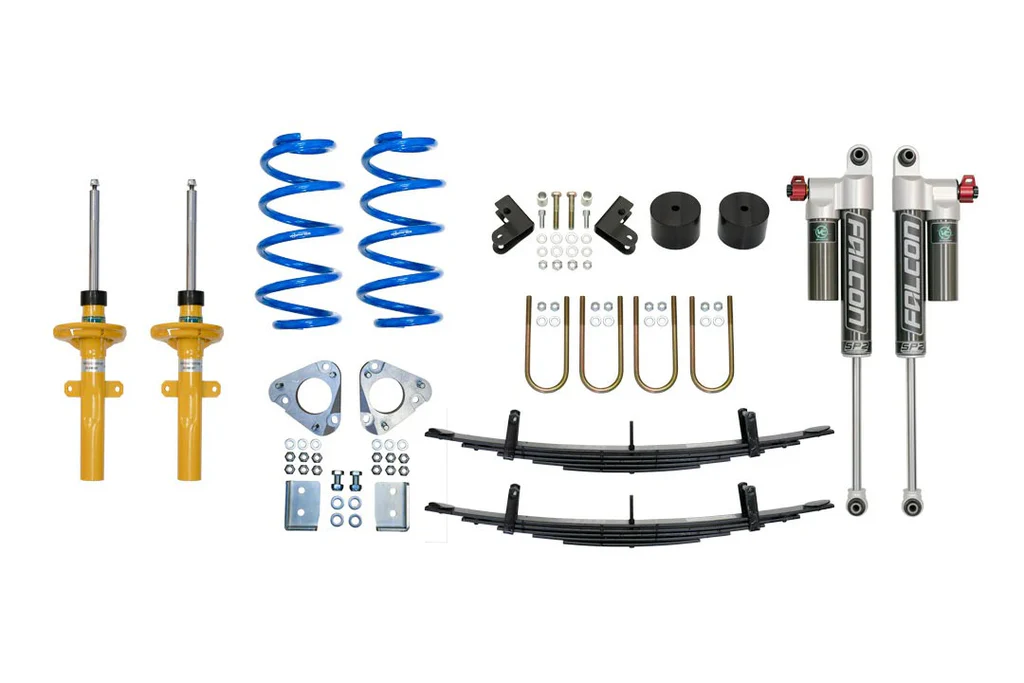

Van Compass STAGE 4 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - LIGHT/MID TUNE (7117-LM) Included:

• Topo 2.0 Front Lift Kit

• Bilstein B6 Front Strut Kit (Pair)

• VC-Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (Pair)

• 5-Leaf Mini Spring Pack with Bump Stop Spacers

• High-Clearance Rear Shock Relocation Brackets

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Rear Falcon 3.3 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

2013+ Transit Rear Leaf Pack Installation Instructions

Falcon 3.3 Shock Settings Guide

Video: Van Compass Ford Transit RWD (2013+) Stage 4 Topo 2.0 System

Video: 2020 Ford Transit AWD Front suspension overview

Video: How to adjust your Van Compass Falcon shocks

Built for adventure-ready rigs, overland builds, and service vans carrying serious weight, the Van Compass STAGE 4 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - MID/HEAVY TUNE (7117-MH) is the ultimate suspension upgrade for your 2018+ Ford Transit RWD (Single or Dual Rear Wheel). Designed to handle heavier payloads while maintaining exceptional ride comfort and control, this system delivers a true 2-inch lift with performance to match.

Whether you're managing rough terrain, loaded road trips, or daily work demands, the Mid/Heavy Tune provides increased support, stability, and adjustability — all without sacrificing drivability.

NOTE: Vehicle alignment is required post-installation. Skipping this step can result in poor tire wear and degraded handling.

• True 2" Lift for better clearance, larger tires, and a stronger visual stance

• Mid/Heavy Coil & Spring Tuning to support extra payload and gear without bottoming out

• VC-Tuned Falcon 3.3 Adjustable Rear Shocks with 10-position Fast Adjust knob for on-the-fly ride tuning

• Boosted Handling & Stability, especially under heavy loads or in high winds

• Increased Bottom-Out Resistance on rugged terrain or sudden dips

• Improved Ride Feel on rough roads and broken pavement

• 0.75" Camber Correction Plates and heavy-rated coil springs deliver 1.25" of front lift

• Enhanced compression travel improves comfort and control under load

• Bilstein B6 Front Struts provide firm, responsive damping for greater stability

• 5-Leaf Mini Spring Pack boosts rear spring rate by 10–15%, lifting the rear 2.0"–2.5" based on load

• Friction-reducing tips ensure quiet, compliant performance

• High-Clearance Rear Shock Relocation Brackets allow trimming of low factory mounts for better off-road clearance

• Rear shocks feature external reservoirs and a large, easy-to-reach Fast Adjust knob

• Choose from 10 firmness levels to instantly match your driving surface — from washboard trails to highway hauls

Van Compass STAGE 4 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - MID/HEAVY TUNE (7117-MH) Included :

• Topo 2.0 Front Lift Kit

• Bilstein B6 Front Strut Kit (1 Pair)

• Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 Pair)

• 5-Leaf Mini Spring Pack with Bump Stop Spacers

• High-Clearance Rear Shock Relocation Brackets

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Rear Falcon 3.3 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

2013+ Transit Rear Leaf Pack Installation Instructions

Falcon 3.3 Shock Settings Guide

Video: Van Compass Ford Transit RWD (2013+) Stage 4 Topo 2.0 System

Video: 2020 Ford Transit AWD Front suspension overview

Video: How to adjust your Van Compass Falcon shocks
