STAGE 4 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - (LIGHT/MID TUNE & MID/HEAVY TUNE) - Van Compass

Upgrade your 2018+ Ford Transit RWD with the Van Compass Stage 4 TOPO 2-Inch Lift Kit, the most comprehensive TOPO suspension package for Transit builds requiring increased lift, load support, damping control, and off-road capability. Available in Light/Mid Tune and Mid/Heavy Tune, it combines a true 2" lift with Bilstein B6 front struts, adjustable Falcon 3.3 SP2 rear reservoir shocks, and a 5-leaf rear mini spring pack.

FEATURES & INCLUDED COMPONENTS

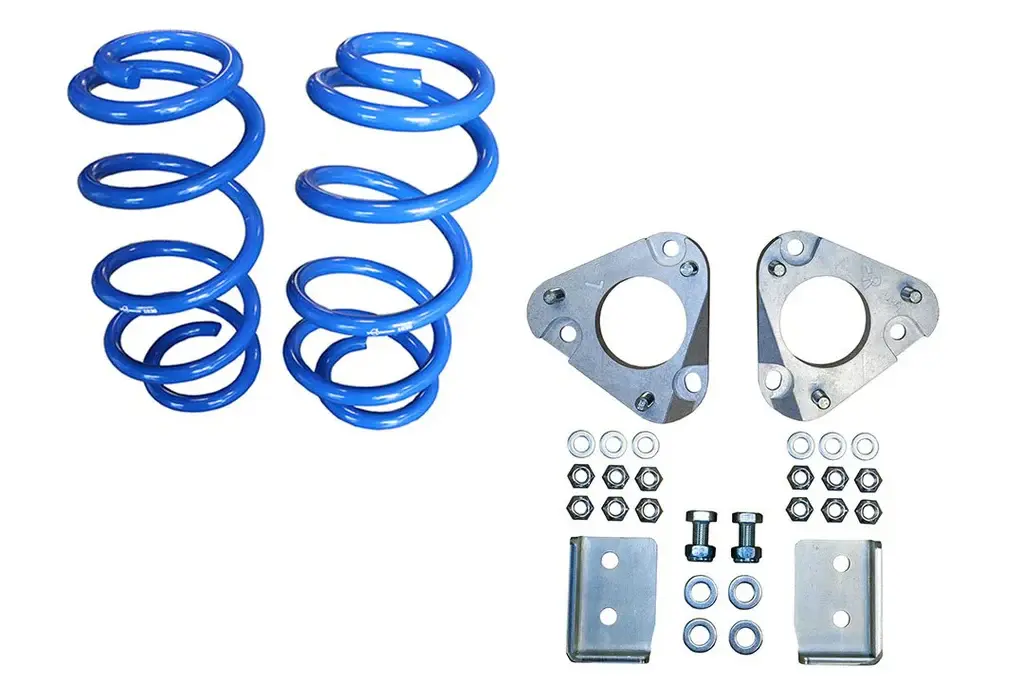

• True 2" lift with 0.75" camber correction plates and tuned front coil springs providing approximately 1.25" of front lift and increased compression travel.

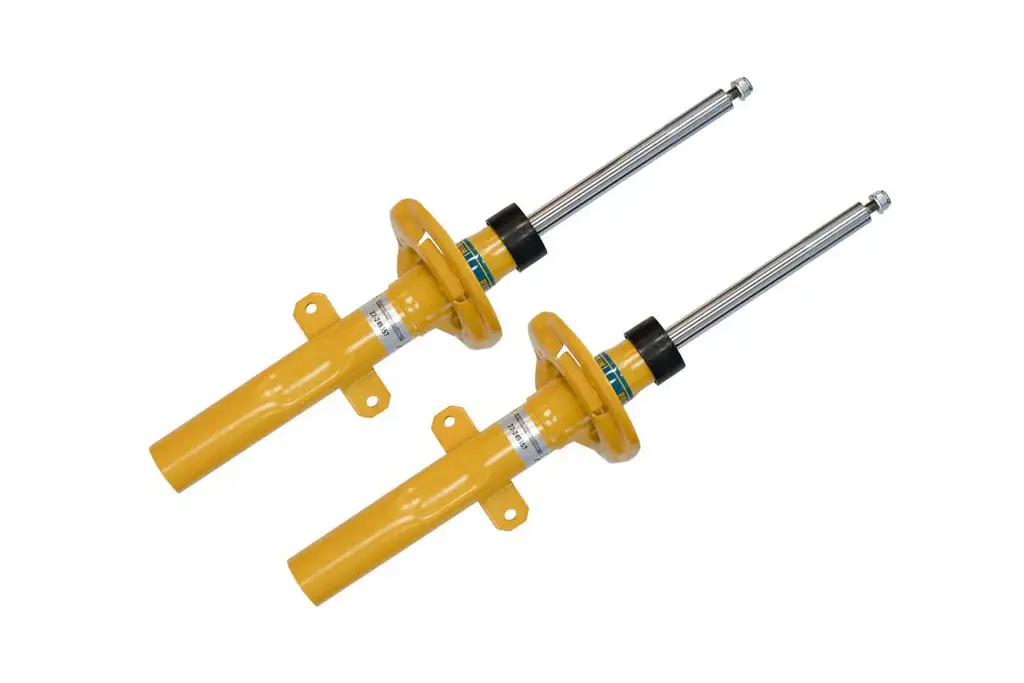

• Bilstein B6 front struts provide controlled, responsive damping and improved front-end stability.

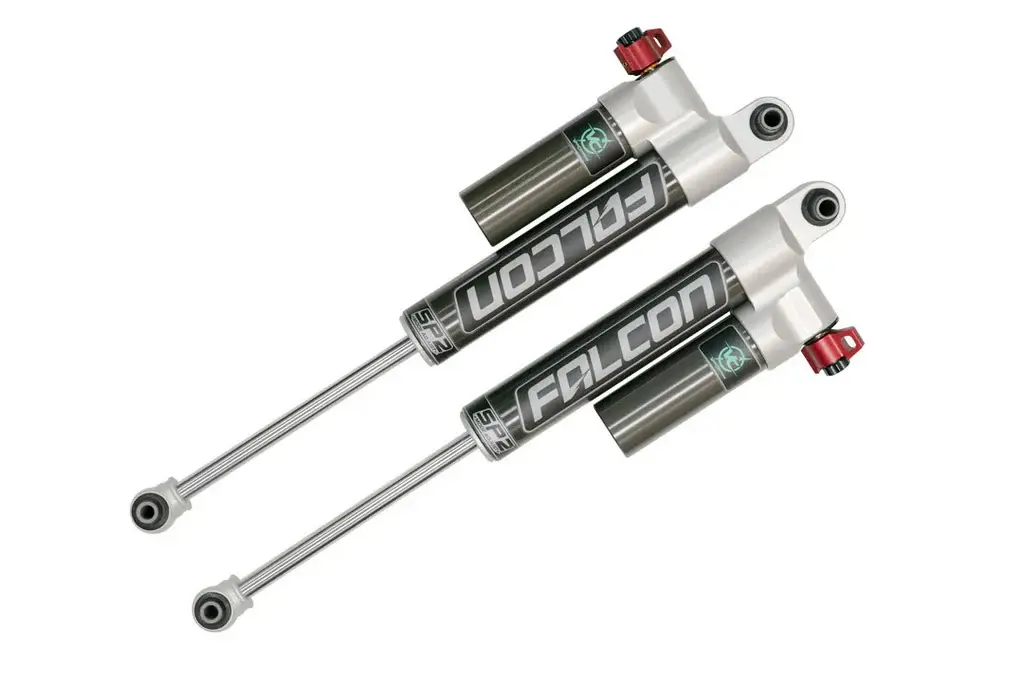

• VC-tuned Falcon 3.3 SP2 adjustable rear reservoir shocks feature external reservoirs and a 10-position Fast Adjust knob for adapting damping to different loads and terrain.

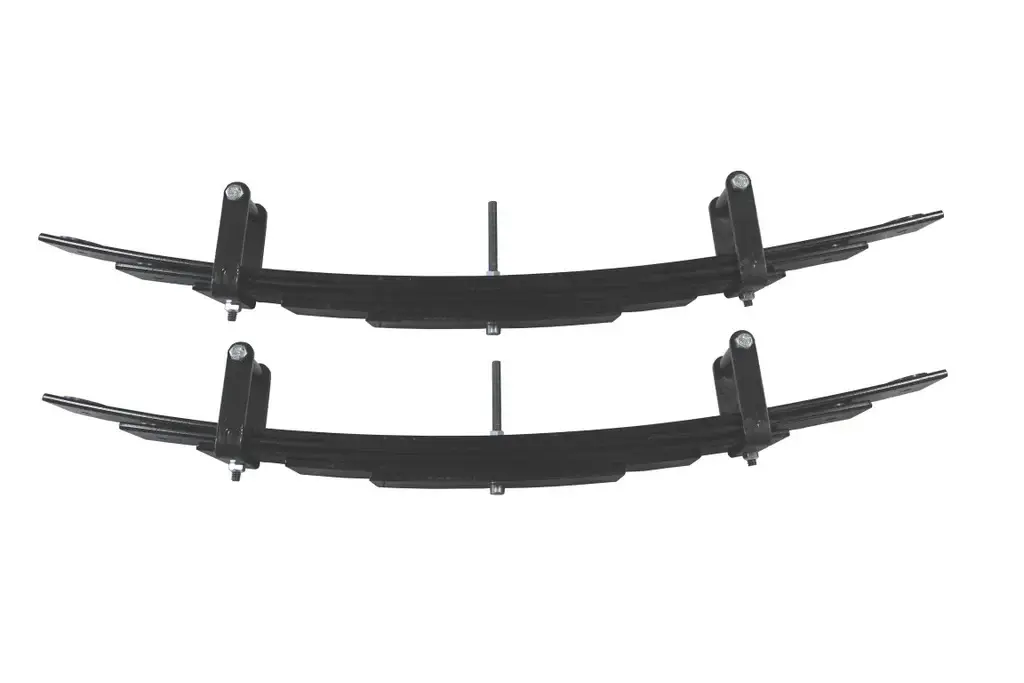

• 5-leaf rear mini spring pack increases rear spring rate by 10–15% and provides approximately 2.0–2.5" of rear lift, depending on vehicle weight. Friction-reducing leaf tips promote quiet, smooth articulation.
• High-clearance rear shock relocation brackets improve clearance beneath the axle; factory mounts require trimming.

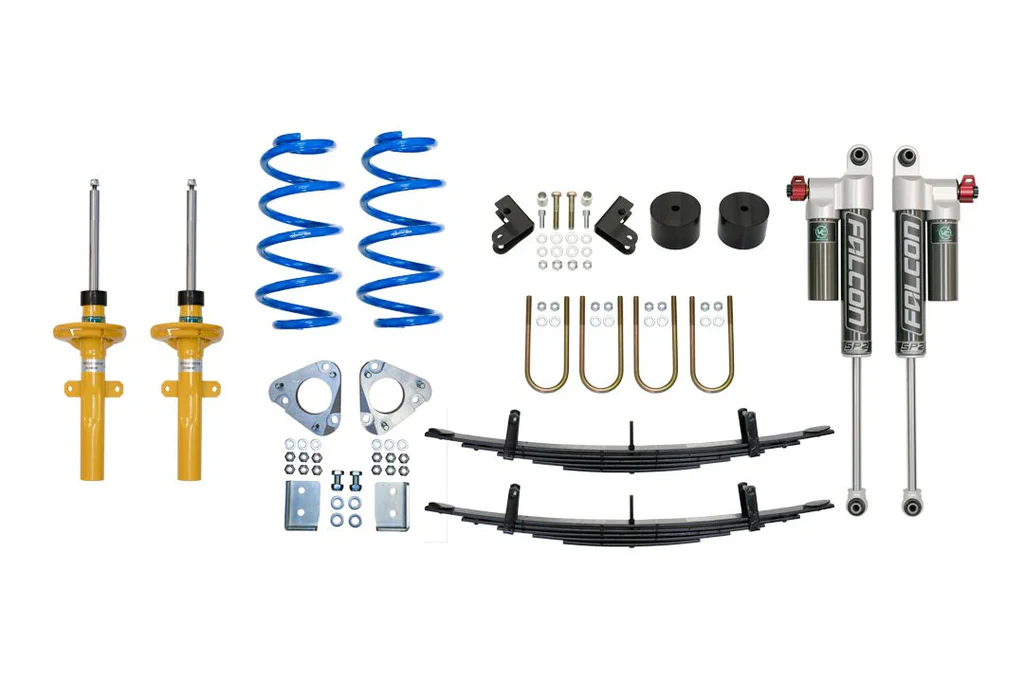

• Includes the TOPO 2.0 front lift kit, Bilstein B6 front struts, Falcon 3.3 SP2 rear reservoir shocks, 5-leaf mini spring pack with bump stop spacers, and high-clearance rear shock relocation brackets.

TUNE OPTIONS, FITMENT & INSTALLATION

• Light/Mid Tune (7117-LM): Designed for passenger vans, daily drivers, lighter camper builds, and moderately equipped vehicles, balancing ride comfort, support, and terrain adaptability.
• Mid/Heavy Tune (7117-MH): Designed for fully equipped camper vans, overland builds, and work vans carrying heavier constant loads, providing increased spring support, stability, and bottom-out resistance.
• Fitment: 2018+ Ford Transit RWD, compatible with Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) configurations.
• The Falcon 3.3 Fast Adjust system allows damping to be adjusted across 10 settings for highway driving, rough roads, or off-road conditions.
• Professional wheel alignment is required after installation to ensure proper handling and prevent uneven tire wear.
• Special order: Non-exchangeable and non-refundable. Allow 2–4 weeks for processing and shipping.
