STAGE 4 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, (LIGHT/MID TUNE & MID/HEAVY TUNE) - Van Compass

Upgrade your ride control, stance, and adaptability with the Van Compass STAGE 4 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, LIGHT/MID TUNE (7214-LM) for the 2020+ Ford Transit AWD. Tuned for light to mid-weight builds, this system is the perfect balance of ride height, performance, and on-the-fly adjustability for daily drivers, campers, or passenger vans. It’s engineered around the geometry and front CV shaft constraints of the AWD platform, providing a true 2" lift without sacrificing drivability or reliability.

The front end uses a 0.75" camber correction plate combined with tuned coil springs to achieve a 1.25" lift and improved suspension compression travel—perfect for soaking up rough roads and trail chatter. In the rear, a 5-leaf mini spring pack increases the spring rate by 10–15%, lifting the van 2.0" to 2.5" depending on load. Each leaf features friction-reducing tips for quiet operation and smooth articulation under varying weights.

Rear shock relocation brackets are included to improve axle tube clearance by trimming the factory mounts, reducing vulnerability on rugged terrain.

At the heart of this Stage 4 system are VC-tuned Falcon 3.3 Adjustable Rear Reservoir Shocks, delivering advanced damping performance through 10 adjustable firmness settings controlled by a large, glove-friendly Fast Adjust knob. Switch seamlessly between soft and plush settings for rough terrain and firmer control for highway driving—perfect for adventurers who need versatility.

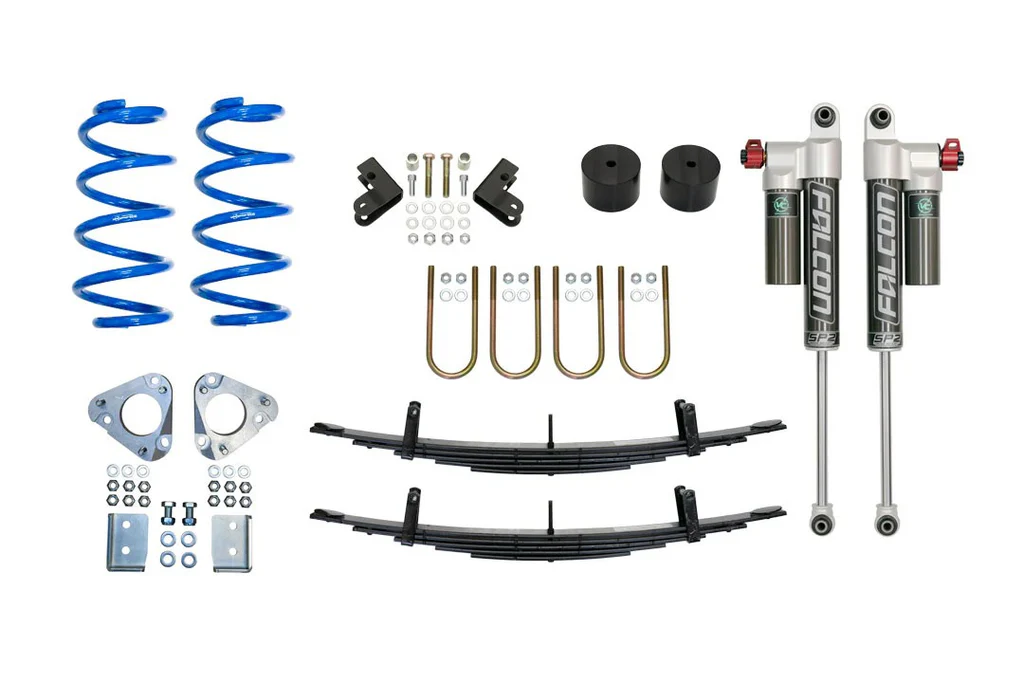

Van Compass STAGE 4 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, LIGHT/MID TUNE (7214-LM) Includes:

• TOPO 2.0 Front Lift Kit with Camber Correction Plates

• Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 Pair)

• Rear 5-Leaf Mini-Spring Pack and Bump Stop Spacers

• High Clearance Rear Shock Relocation Brackets

• All Required Hardware

Notes

Professional alignment is required after installation to avoid uneven tire wear and degraded handling

Bilstein B6 struts are not compatible with AWD systems—they may cause CV boot damage due to excessive length

• 2" true lift for improved stance and ground clearance

• Supports larger tires and enhances approach, breakover, and departure angles

• Falcon 3.3 shocks offer 10-click adjustability for any road or trail

• Increased rear spring rate to reduce sag under moderate loads

• Enhanced stability and reduced sway on highways and in crosswinds

• Better impact control on uneven terrain and during bottom-out scenarios

• Quiet and smooth suspension movement thanks to mini-pack friction reducers

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Rear Falcon 3.3 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

2013+ Transit Rear Leaf Pack Installation Instructions

Falcon 3.3 Shock Settings Guide

Video: Van Compass Ford Transit AWD (2020+) Stage 4 Topo 2.0 System (Single Rear Wheel)

Video: 2020 Ford Transit AWD front suspension overview

Video: How to adjust your van compass falcon shocks

Designed for heavily built vans, camper conversions, and adventure-ready rigs, the Van Compass STAGE 4 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, MID/HEAVY TUNE (7214-MH) is your ultimate suspension upgrade for the Ford Transit AWD (2020+). Tuned for mid-to-heavyweight applications, this system delivers true 2" of lift, improved ride quality, and maximum adaptability for both highway and trail conditions—without compromising drivability or reliability.

The system starts with a 0.75" camber correction plate and tuned front coil springs, delivering a 1.25" front lift and increased compression travel to better absorb rough roads and off-road terrain. In the rear, a heavy-duty 5-leaf mini spring pack increases the spring rate by 10–15%, lifting the van 2.0" to 2.5" based on rear load. Friction-reducing leaf tips ensure quiet, smooth performance even under constant heavy cargo or full interior builds.

High-clearance rear shock brackets are included to allow trimming of the stock mounts, improving axle tube clearance and overall ground clearance.

At the heart of this Stage 4 system are VC-tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks, delivering precision damping with 10 easy-to-use firmness settings via the large Fast Adjust knob. Whether you're loaded down for a long trip or riding empty between destinations, you can quickly adjust shock stiffness to dial in your ride quality for every situation—from washboard backroads to smooth highway.

Van Compass STAGE 4 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, MID/HEAVY TUNE (7214-MH) Includes:

• TOPO 2.0 Front Lift Kit with Camber Correction Plates

• Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 Pair)

• Rear 5-Leaf Mini-Spring Pack and Bump Stop Spacers

• High Clearance Rear Shock Relocation Brackets

• All Necessary Installation Hardware

Notes

• Professional alignment is required after installation to prevent tire wear and handling issues

• Bilstein B6 struts are not compatible with AWD Transit platforms—installing them may damage CV boots due to added length

• True 2" lift for improved stance, tire clearance, and ride quality

• Increased approach, breakover, and departure angles for off-road clearance

• Falcon 3.3 rear shocks with 10-click adjustability for maximum ride tuning

• Rear mini pack boosts spring rate to handle heavier loads and reduce sag

• Enhanced stability, reduced sway, and better control over bumps and dips

• Ideal for fully built camper vans or work vans with heavy gear loads

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Rear Falcon 3.3 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

2013+ Transit Rear Leaf Pack Installation Instructions

Falcon 3.3 Shock Settings Guide

Video: Van Compass Ford Transit AWD (2020+) Stage 4 Topo 2.0 System (Single Rear Wheel)

Video: 2020 Ford Transit AWD front suspension overview

Video: How to adjust your van compass falcon shocks
