Broad Arrow Curved Window 1097×597
100% original guarantee
Return within 30 days for most orders
Free delivery on most orders

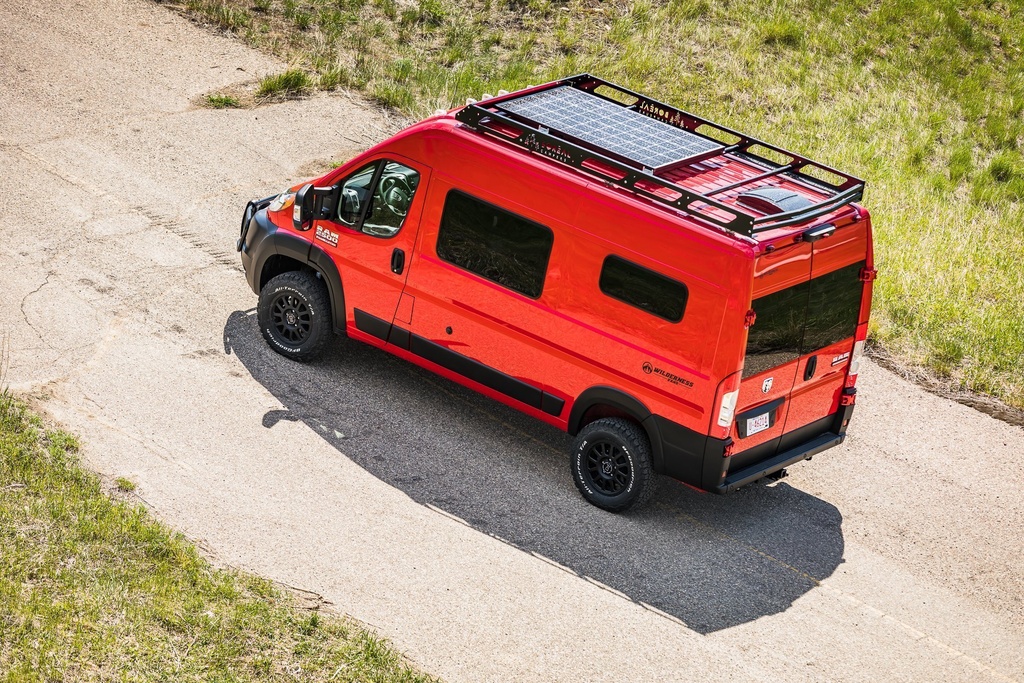

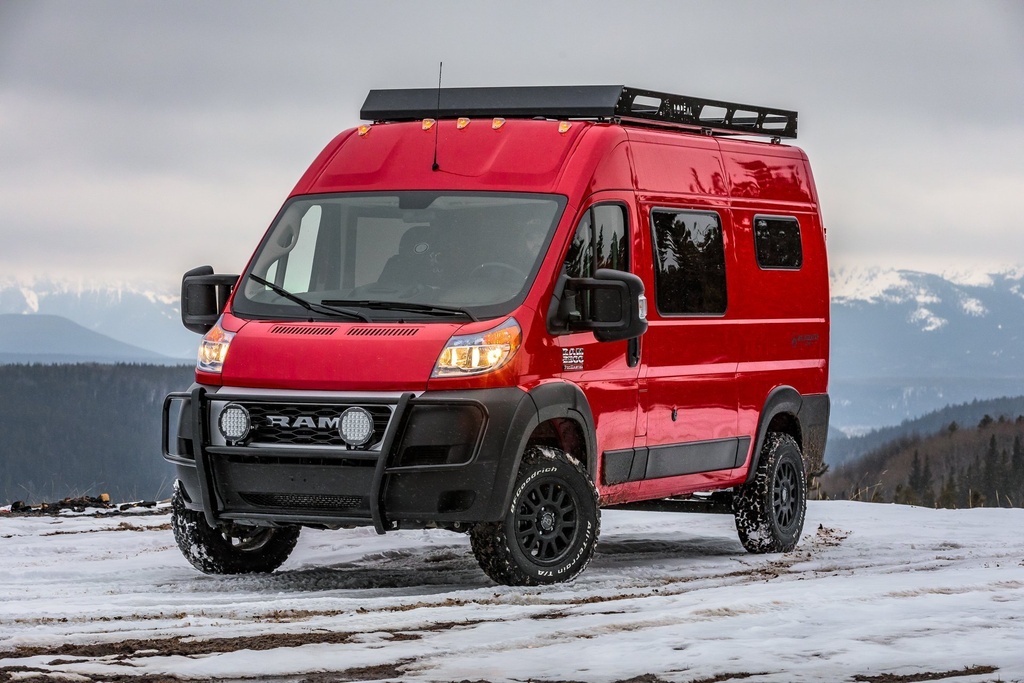

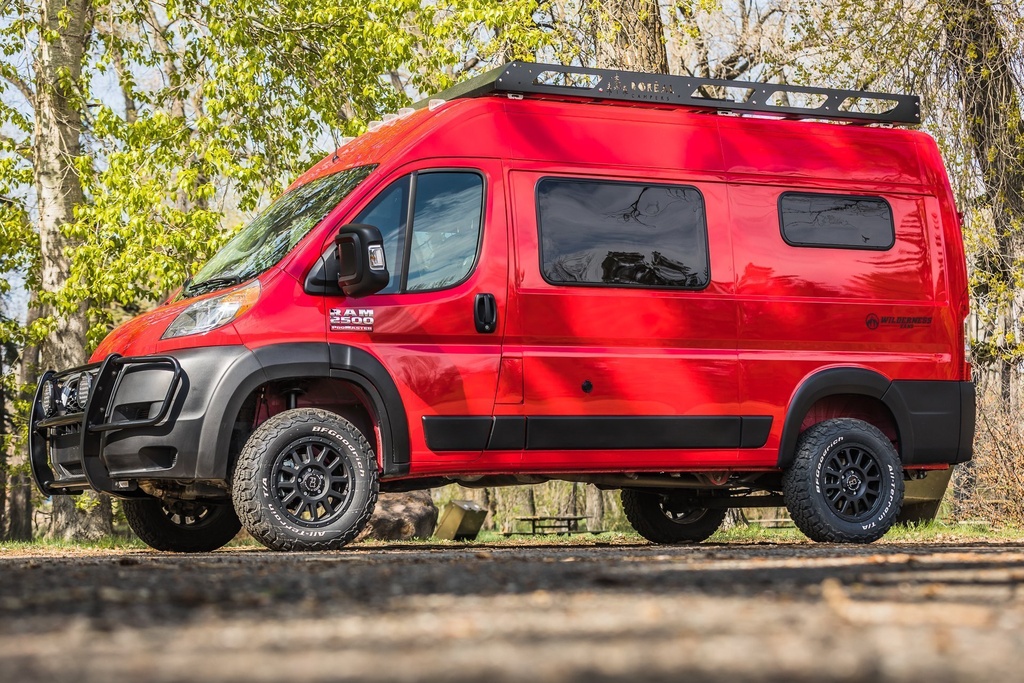

Customers must use the cutout template below prior to ordering their window to ensure the window will fit properly and work with their build. On Ram ProMaster fits drivers side only.

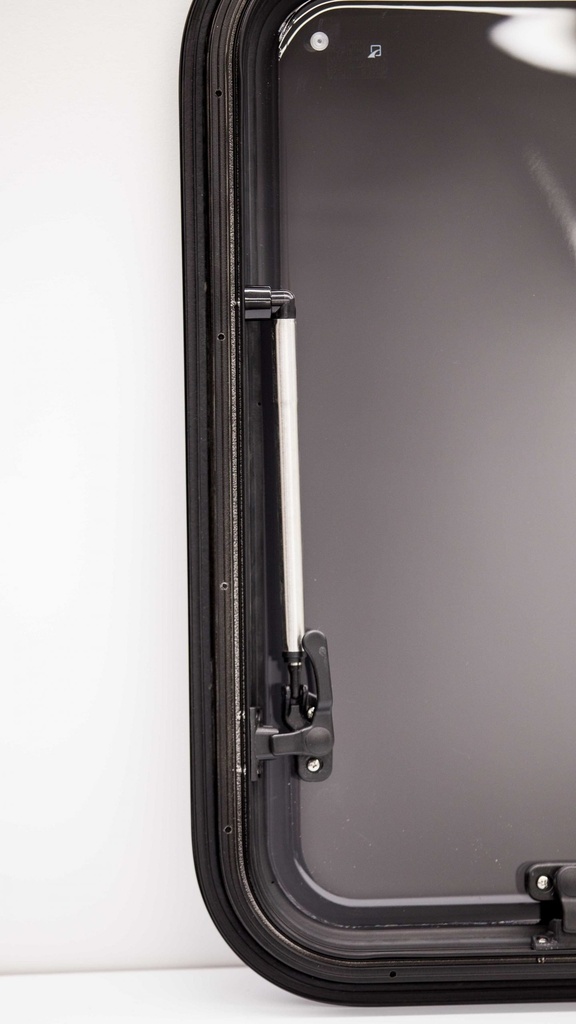

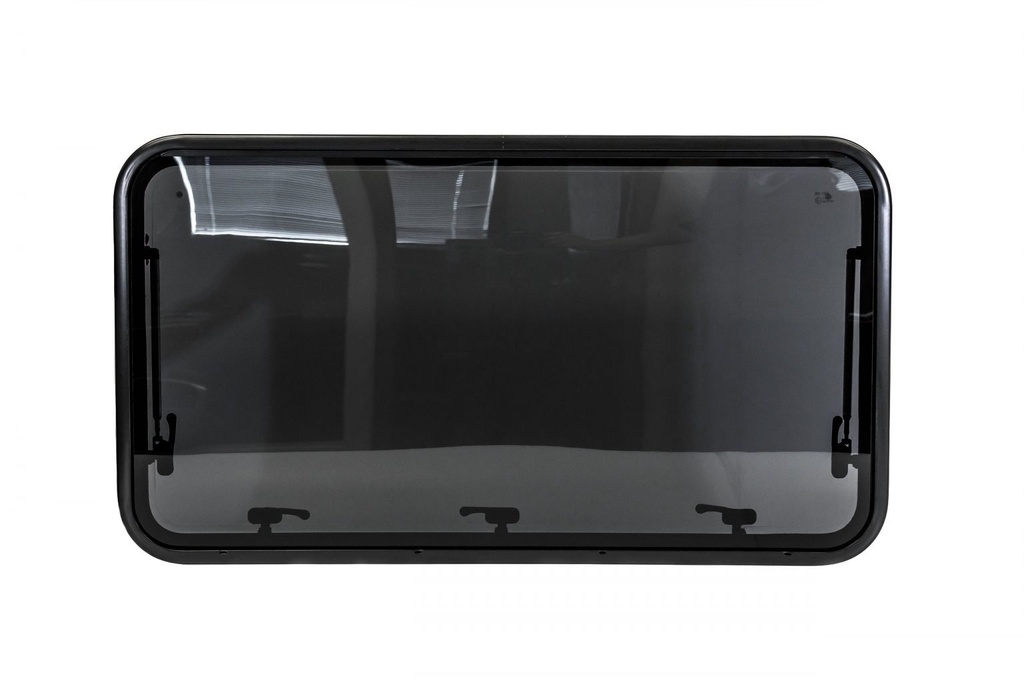

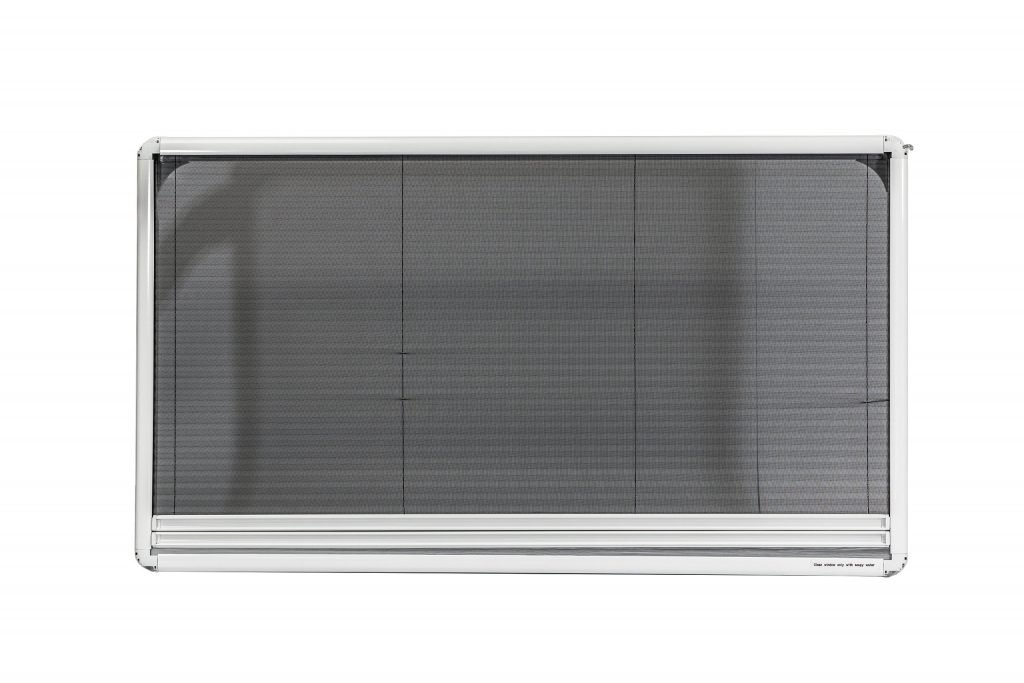

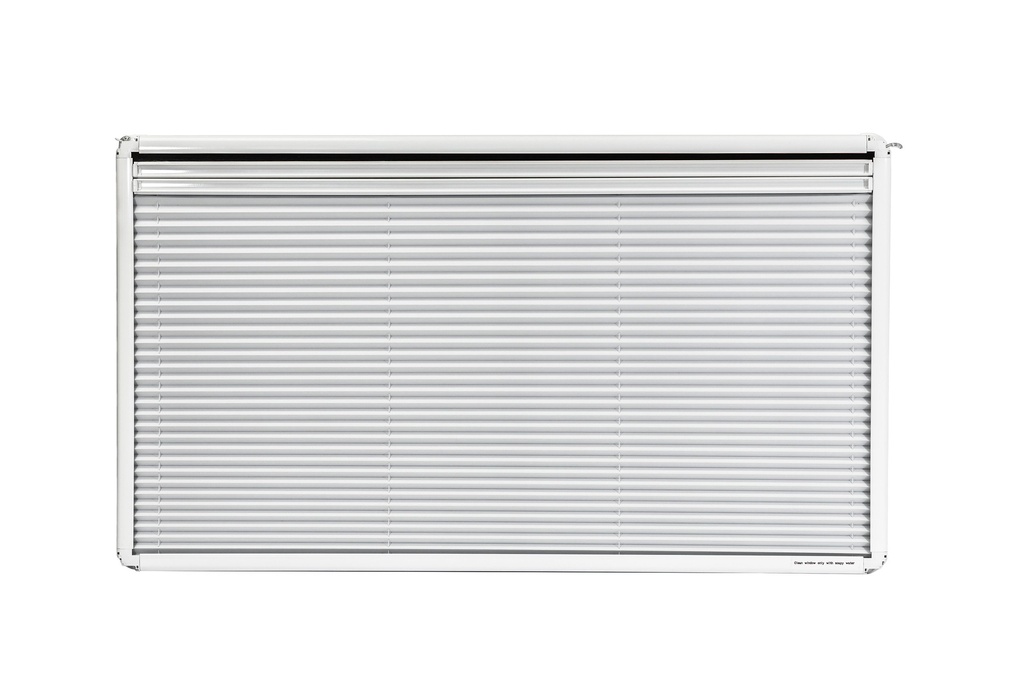

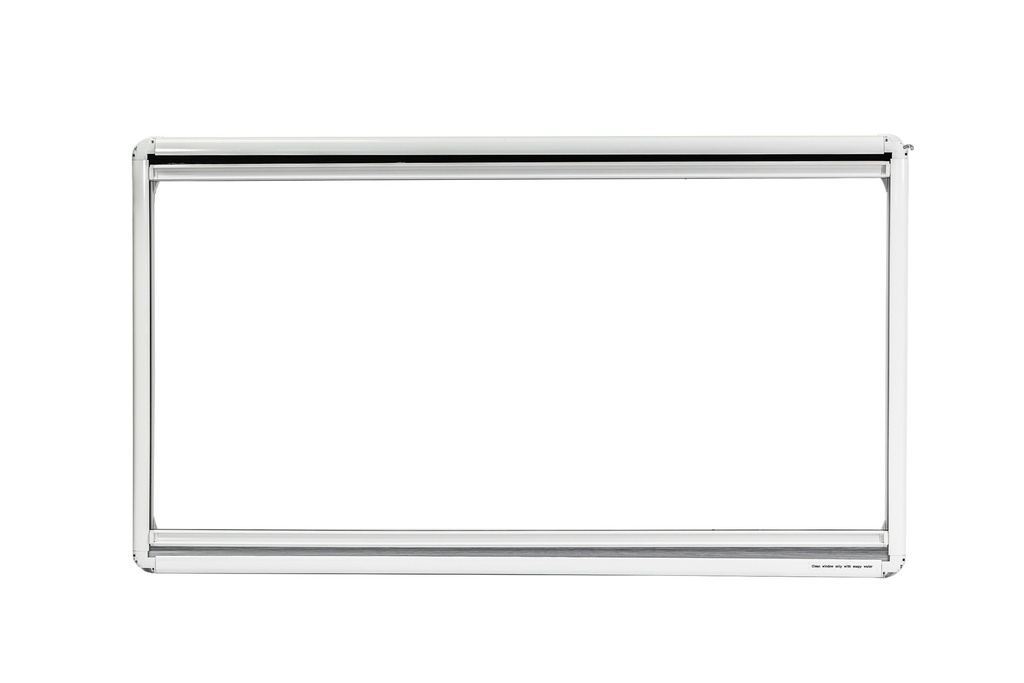

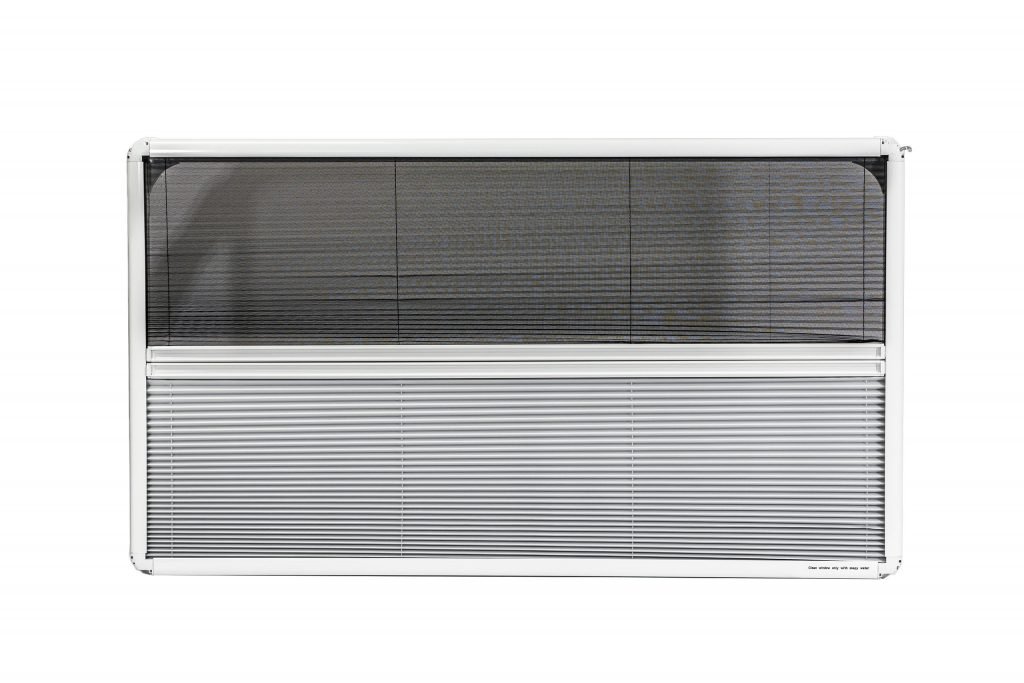

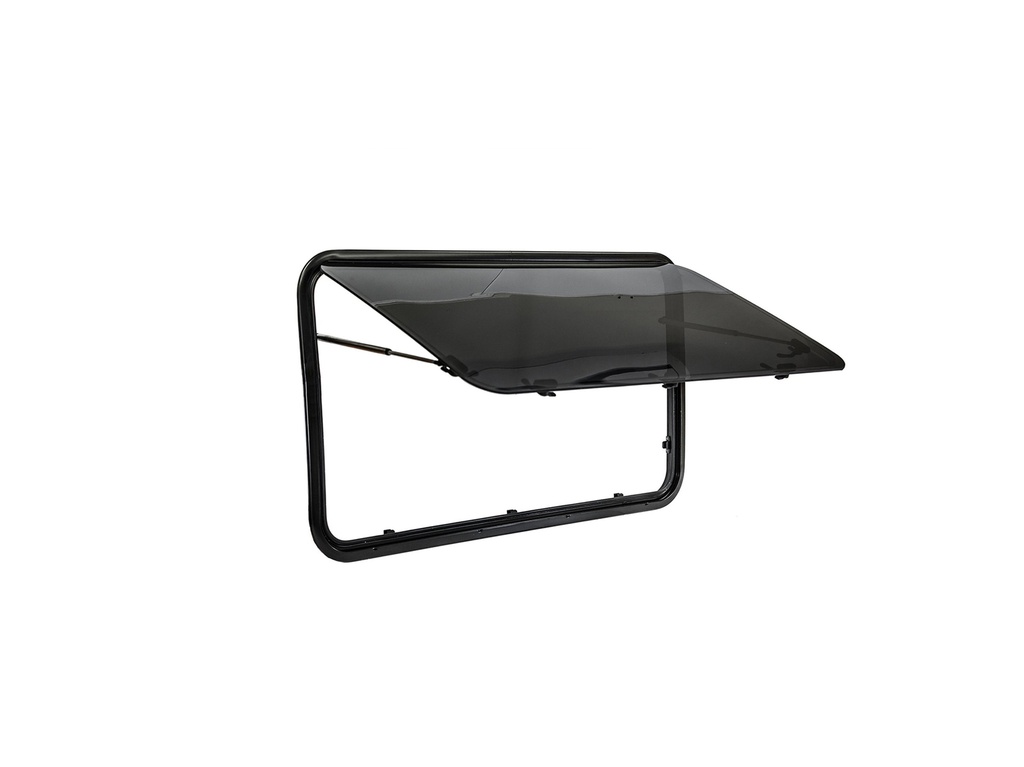

Black acrylic dual glazed DOT approved windows. Cassette style with included bug screen and pleated blinds. Slightly curved to fit better to the van body. Aluminum frame.

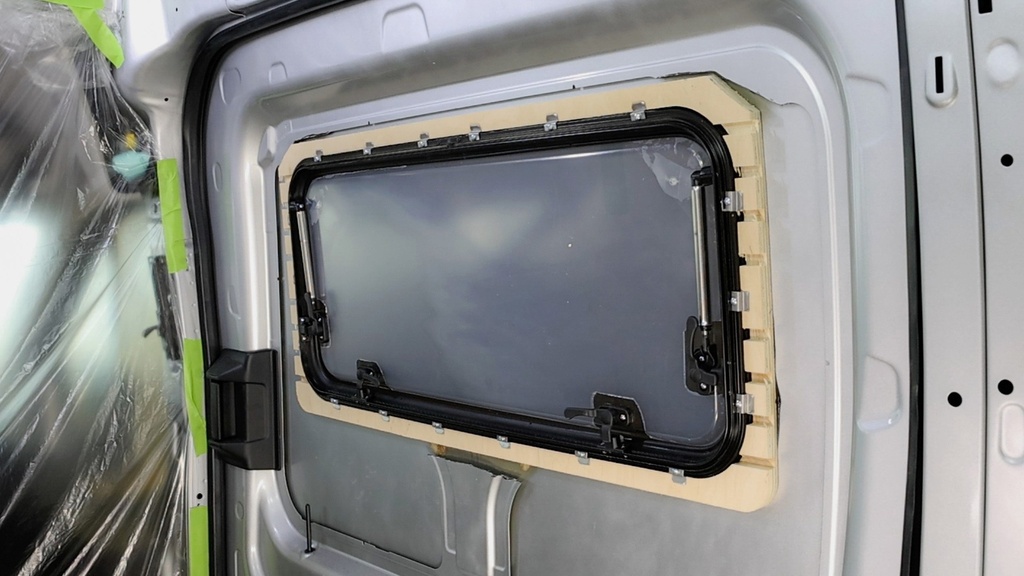

- NEW – Includes wooden mounting ring
- Acrylic dual glazed
- For wall thickness: 26 – 50 mm
- Visible light transmittance: 10%
- Size: 1097 (W) x 597 (H) mm
- Cut Out Size: 1100 (W) x 600 (H) mm
- Overall Size: 1127 (W) x 627 (H) mm
- Interior Blind Size 1127 (W) x 640 (H) mm
- Note: Fits on Promaster Drivers side only
- Curved Window Dimensions
- Cutout template
- Important: Broad Arrow windows are constructed to work with the curvature of your van and made of a dual pane acrylic. This pane is not like tempered glass which is hard and rigid. Due to the manufacturing process the curvature of the acrylic window may not be perfectly uniformed. These will not affect the seal or performance of the window.
- For sliding door window applications, make sure there is adequate clearance between the door’s interior and the vehicle body when using bed pods, flares, extensions, or other van-side accessories. In some cases, the interior bug screen or night shade cassette may interfere with aftermarket body or bed extensions.
- Made in China
