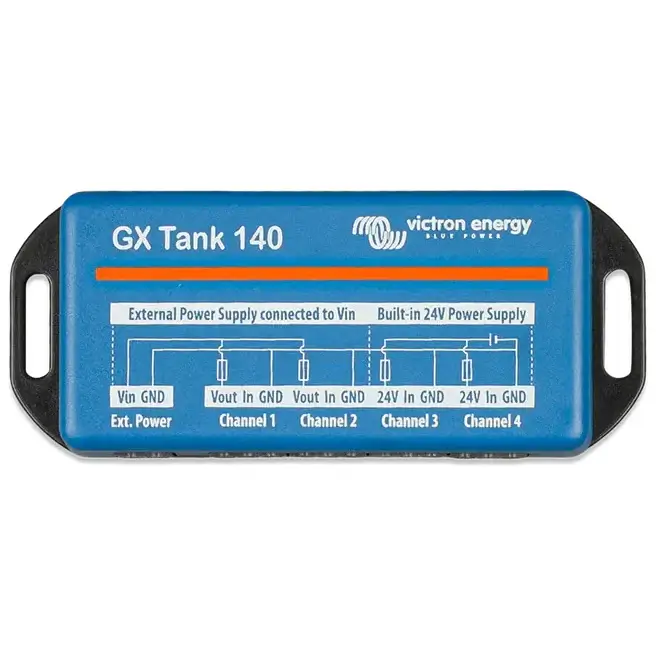

Victron Energy GX Tank 140 – USB Tank Level Interface for GX Systems
Monitor Up to Four Tanks with Precision and Simplicity
The GX Tank 140 is a powerful tank monitoring interface designed for use with Victron’s GX monitoring systems, including the popular Cerbo GX. This compact unit allows you to read and manage tank levels from up to four sensors, making it ideal for marine, RV, and off-grid applications.
Key Features:
- Supports Up to 4 Tank Sensors: Compatible with both 4–20 mA current sensors and 0–10 V voltage sensors.
- Plug-and-Play USB Connection: Connects directly to your GX device via USB for both power and data—no external power needed for most installations.
- Built-In Sensor Power Supply: Two of the four channels include an integrated 24 V power output to simplify sensor wiring.
- External Power Support: The remaining two inputs can be powered via the included fused terminals for flexible wiring setups.
- Remote & Local Monitoring: View tank levels on your GX touchscreen (e.g., Cerbo GX) or remotely via the Victron VRM Portal.
- Customizable Damping & Limits: Smooth out sensor data with adjustable damping (1–60 sec) and set high/low thresholds to match partial-range sensors (e.g., 0–5 V).
- Alarm Notifications: Automatically detects sensor faults and wiring issues, triggering alerts when values fall outside the expected range.
- NMEA 2000 Compatible: Ideal for marine use—tank levels can be broadcast over an NMEA 2000 network for display on multifunction displays (MFDs).
Applications:
- RV & camper freshwater, grey, and black tank monitoring
- Marine fuel and water tank level monitoring
- Off-grid cabin or tiny home water systems
No Specifications
