Flanged / Recessed "BEEFY" L Track | Tec Vanlife

TEC Aluminum L-Track – 62", 79", 84"

Engineered for van builds and modular interiors, TEC L-Track uses high-strength 6061-T6 aluminum with a premium anodized finish for durability and a clean, professional look. Trimmed edges improve safety and handling. Available in 62", 79", and 84" lengths to minimize cutting and waste during installation.

Product Specifications

• Material: 6061-T6 high-strength aluminum
• Finish: Premium anodized
• Available lengths: 62", 79", 84"

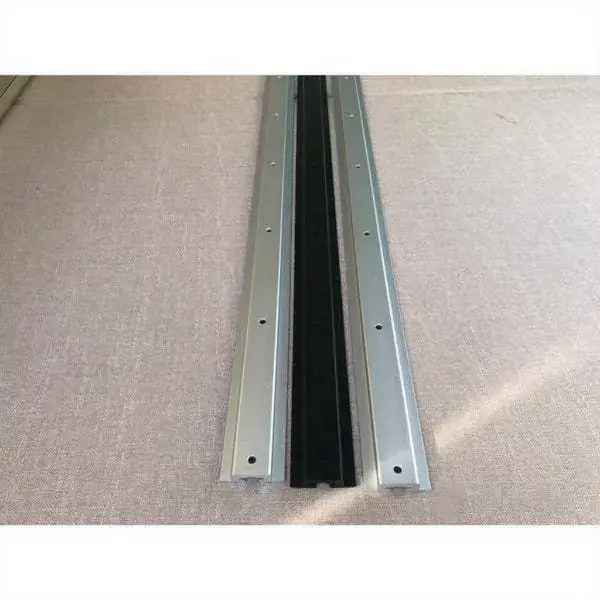

• Mounting holes:
  • 84": 12 holes
  • 62": 10 holes

• Hole spacing:
  • 84": outer six holes at 8" center-to-center; central two at 3 1/2" center-to-center
  • 62": outer four holes at 8" center-to-center; central four at 4", 5", 4" center-to-center (respectively)
  • 79": TBD (specs under review)
• Mounting screw size: M6 socket flat head (metric) or 1/4"-20 flat head
• Hardware included: No (mounting screws not included)

Durability & Design Highlights

• High strength aluminum: 6061-T6 for excellent strength-to-weight performance
• Premium anodized surface: clean appearance and corrosion resistance
• Trimmed edges: smooth edges to eliminate rough spots and improve safety

Compatibility & Installation Notes

• Tracks must mount to structurally sound members; verify substrate and fastener pull-out strength
• Confirm hole pattern and screw size with your layout before drilling
• Tracks can be cut to length if required

Why 84" L-Tracks?

For 170" Sprinters and 148" Extended Transits, two 84" tracks run lengthwise down the van. For 144" Sprinters and 148" Transits, one full 84" track plus half of another 84" track covers the length. Manufacturing the 84" format optimizes material use, minimizes cutting, and reduces waste.

Additional Notes

• Warranty: Standard manufacturer warranty
• Fasteners: Not included; select M6 or 1/4"-20 flat head screws per your substrate
• 79" specs: Hole count and spacing to be confirmed; verify before ordering (listing will be updated when finalized)
