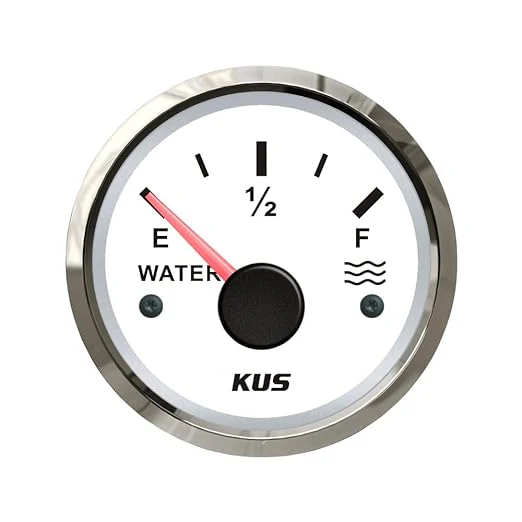

KUS S5U Water Level Sender and Gauge
Full DetailsThe KUS electric liquid level sending units are widely used in marine, on-road, off-road, generator set, and industrial applications. The electric liquid level sending unit utilizes reed switch and magnetic field technology. The advantage of reed switch type level sender over thick-film swing arm type level sender is the reed switch’s durability and reliability. Additionally, in reed switch level senders the float is the only moving part of the sender, thereby minimizing potential mechanical failures.
The KUS water level gauge provides a wide indicating range, operates at 12V with 24V compatibility, and features durable construction for reliable performance.
Mounting Method: 1.5″ NPTMounting Position: Top-Mounted (mounted in the 1 1/2" fitting at the top of the tank).
NOT COMPATIBLE WITH OLDER VERSIONS of our wheel well and undermount water tanks! Only compatible with our updated water tanks that have a 1 1/2" fitting on the top of the tank.
100% original guarantee
Return within 30days
Free delivery on most orders
Features
- American Standard 240-33 ohms (240 ohms at empty, 33 ohms at full)
- 12VDC or 24VDC system. The sender draws power through the signal wire
- IP67 waterproof and dustproof gauge
| Couleurs | White or Black |
| Level Sender Lengths | 7" → fits our Sprinter/Transit 10 Gallon Tank or 8" → fits our Sprinter/Transit 17 Gallon Tank or 15" → fits our Sprinter/Transit 29 Gallon Tank or 16" → fits our Sprinter/Transit Dually 32 Gallon Tank or 18" → fits our Sprinter/Transit 16 Gallon Pistol Tank or 18" → fits our Promaster 22 Gallon Tank or 18" → fits our Promaster 32 Gallon Tank |
