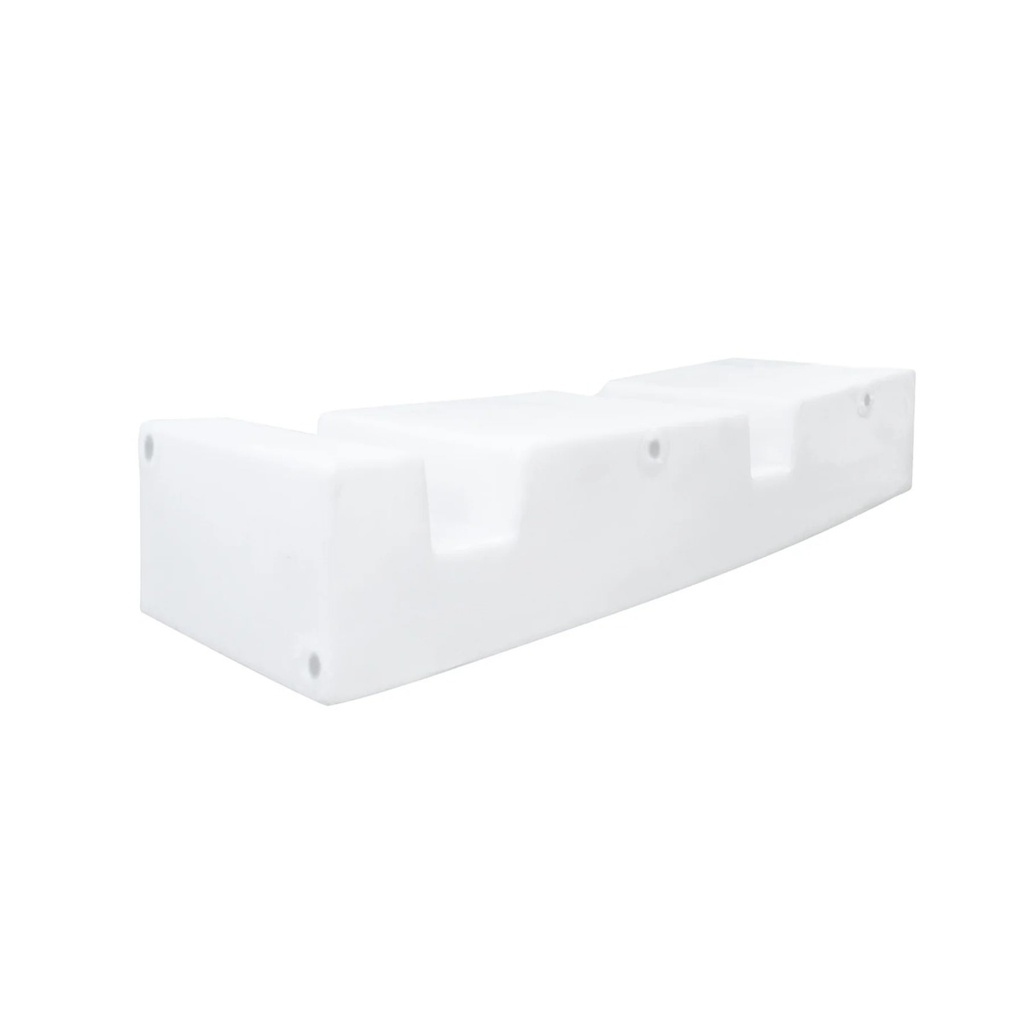

Promaster Undermount Water Tank (15 Gallon)

Full Details:

We are always striving for better space-saving ideas, and this undercarriage tank is just the ticket! This tank is designed to fit snugly around your Promaster’s framed undercarriage; these tanks are the perfect solution for your off-grid water requirements.

Composed of high-quality, BPA-free, food-grade approved linear low-density polyethylene, this tank can also function as freshwater storage. We've created a complete Freshwater Fittings Kit that includes everything you need to turn this tank into an undermount freshwater reservoir.

Complete your off-grid water management system by pairing this undermount tank with our 22 Gallon, or our 32 Gallon Promaster Wheel Well Water Tank. Worry less about water management, and spend more time adventuring!

Key Features & Benefits:

• Save Space - Mount underneath your van chassis for extra storage room inside your van - passenger side only.
• Perfect Fit - Designed to fit perfectly under the Promaster van, simply position the tank and attach with strapping, no need to make modifications.
• Durable Design - This tank is tough; rest assured knowing your tank will hold up to exposure and the elements.
• Multi-Purpose - Use this undermount tank for grey water storage, or bundle it with our Freshwater Fittings Kit and turn this tank into a freshwater reservoir.
• BPA-Free and Food Grade Approved - These tanks are CSA approved and food grade certified for safe drinking water.
• Fittings Kit Add-On Available - Save yourself the headache and multiple trips to the plumbing store when you bundle this tank with our Grey Water Fittings Kit or Fresh Water Fittings Kit!
• Strapping Kit Add-On Available - Weather-resistant strapping crafted from heavy-duty 1/8" thick, 1 1/2" wide aluminum. Simple and secure!
• Compatible - This tank pairs well with our 22 Gallon and 32 Gallon Promaster Wheel Well Water Tanks.

Dimensions & Specifications:

Designed for the Ram Promaster 159" & 159" extended wheelbases.

NOT COMPATIBLE with the 118" or 136" wheelbase.

The tank can only be mounted on the PASSENGER SIDE of your van.

However, your drain hose can be routed to your drivers side if needed.

Tanks are made from linear low-density polyethylene.

Food grade CSA approved and BPA free - safe for freshwater use!

15 US Gallons / 56.7 Litres

45.5" x 13 3/8" x 8" (Length x Width x Height)

1 x 1 ¼" fill port (on right side)

1 x ¾" drain port (on right side)

2 x ½" vent ports (on left side, top of humps)

1 x ½" vent port (on front end, top of hump)

1 x ½" optional water-pump port for freshwater use (on front end, bottom corner)

All ports are NPT female-threaded.

Grey Water Fittings Kit Add-On:

• 1x 1 ¼" PVC 90
• 2x ¾" PVC 90
• 1x ¾" PVC Ball Valve
• 1x ¾" Nipple - 6" long
• 1x ¾" Nipple - 4" long
• 1x ¾" Nipple - 1 ½" long
• 3x ½" Poly Adaptors
• 1x ½" Poly Elbow
• 1x ½" PVC Plug
• 2x #20 Hose Clamps
• 3x #8 Hose Clamps
• 1x Roll of Teflon Tape
• 5ft Fill Hose
• 2ft ⅝" ID Vinyl Hose

Fresh Water Fittings Kit Add-On:

• 1x 1 ¼" PVC 90
• 2x ¾" PVC 90
• 1x ¾" PVC Ball Valve
• 1x ¾" Nipple - 6" long
• 1x ¾" Nipple - 4" long
• 1x ¾" Nipple - 1 ½" long
• 3x ½" Poly Adaptors
• 1x ½" Poly Elbow
• 1x ½" PVC Plug
• 2x #20 Hose Clamps
• 2x #8 Hose Clamps
• 1x Roll of Teflon Tape
• 1x Fill Port
• 5ft Fill Hose
• 5ft ⅝" ID Vinyl Hose

Aluminum Strapping Kit Add-On:

• 2x Heavy-Duty Aluminum Straps
• Aluminum Hardware

More Information:

Wheel Well & Undermount Water Tank FAQ Sheet

Full Details of the Grey Water Fittings Kit Add-On

Select this add-on with your tank purchase and save $$ vs buying separately!

Full Details of the Fresh Water Fittings Kit Add-On

Select this add-on with your tank purchase and save $$ vs buying separately!

Full Details of the Aluminum Strapping Kit Add-On

Select this add-on with your tank purchase and save $$ vs buying separately!

Check out our Promaster Wheel Well Water Tank (22 Gallon)

Check out our Promaster Wheel Well Water Tank (32 Gallon)

Install Instructions:

Freshwater Fittings Kit Install Instruction

Grey Water Fittings Kit Install Instructions

Strapping Kit Install Instructions for Promaster 15 Gallon Water Tank (Passenger Side)

Weight & Dimensions

Specifications

Compatibility

Designed for the Ram Promaster 159"" & 159"" extended wheelbases.

NOT COMPATIBLE with the 118"" or 136"" wheelbase.

The tank can only be mounted on the PASSENGER SIDE of your van.

However, your drain hose can be routed to your drivers side if needed.

FAQ

Can you recommend a water tank heating pad?

We recommend these heating pads from Amazon: https://www.amazon.ca/Trailer-Holding-Automatic-Thermostat-Control/dp/B01MT9EUG9

Can you recommend a water level gauge?

The most common water level gauge is the KUS brand tank sensor.

Why is the fill port for the 15G tank at the bottom of the undermount tank? Will this cause the water to backflow into the hose?

The water will only flow back into the drain at the same level of the tank filling. The fill port at the bottom makes installation much easier and we've never ran into any backflow issues. Hopefully that makes sense but it is quite common on undermount tanks to fill at the bottom for convenience of the install.
