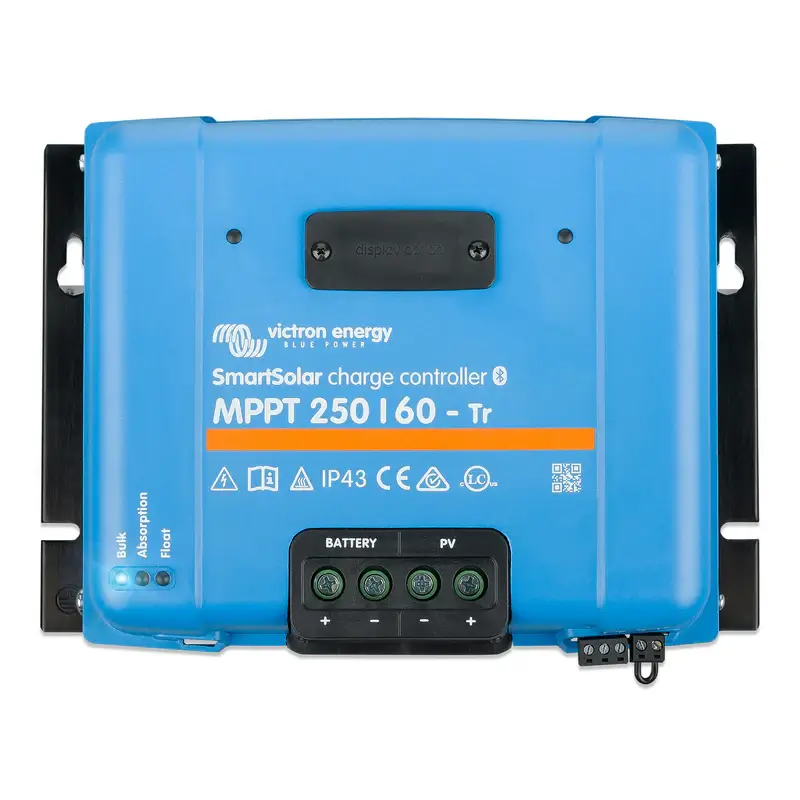

Victron Energy SmartSolar MPPT Charge Controller

Efficient Solar Charging with Advanced MPPT Technology

Harness solar energy efficiently with the Victron Energy SmartSolar MPPT. Designed to maximize energy harvest, even in low-light or partially shaded conditions, this intelligent charge controller ensures fast, complete charging while extending battery life.

Key Features:

• Built-In Bluetooth Smart

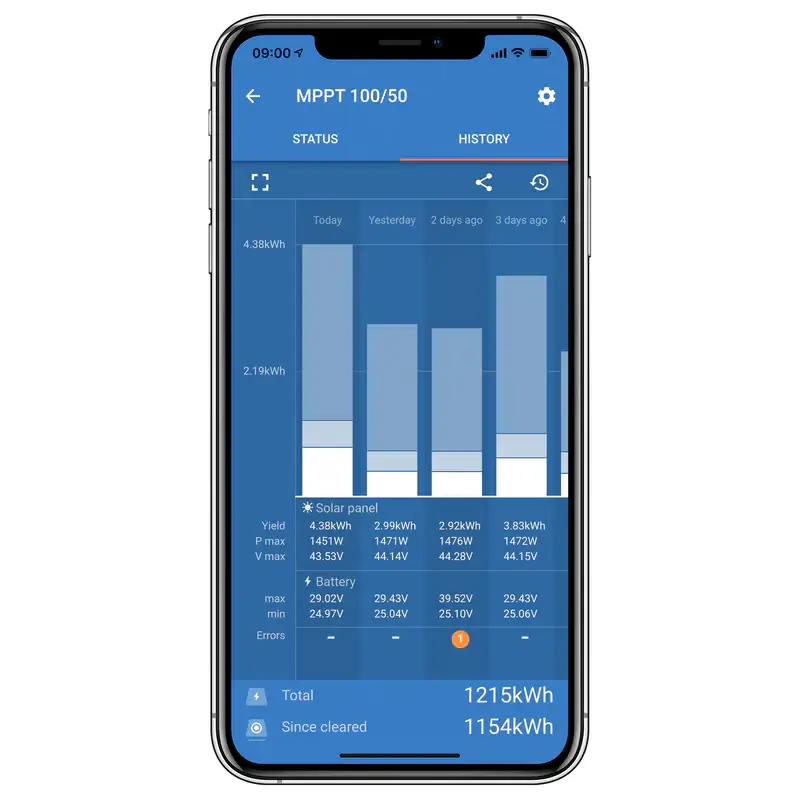

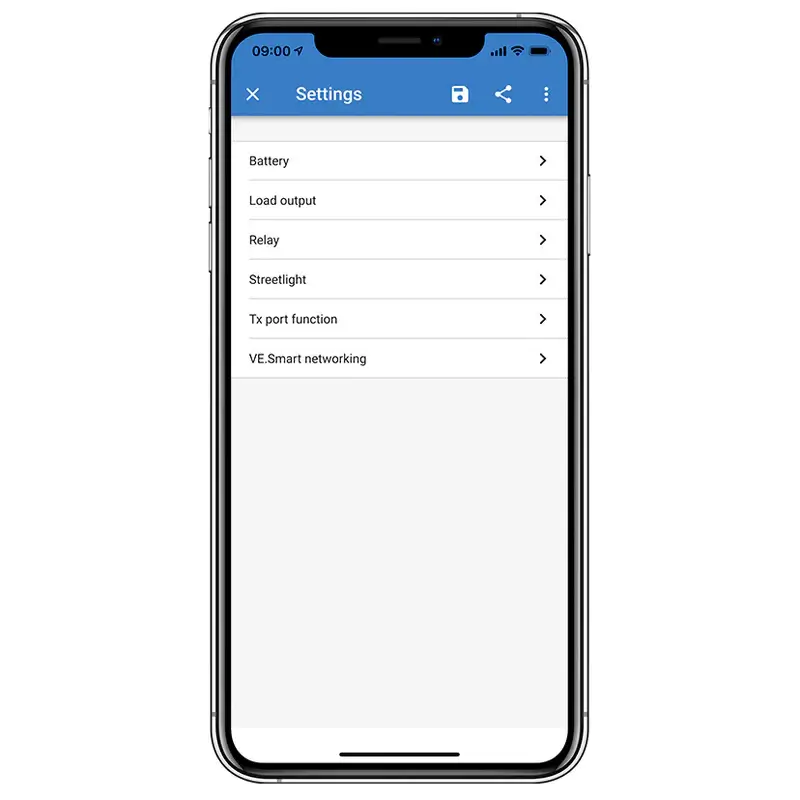

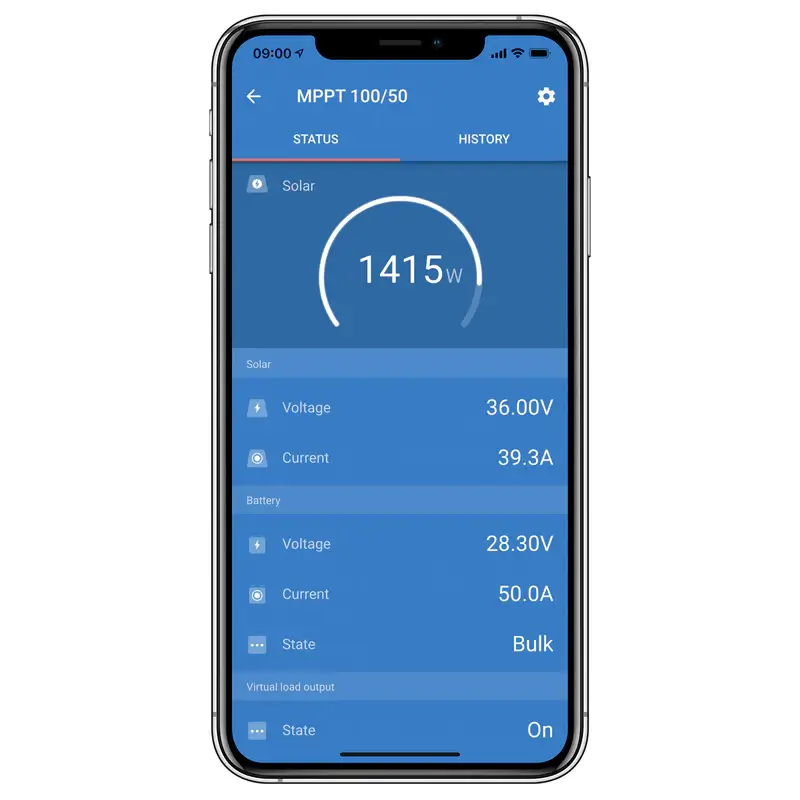

  Configure, monitor, and update the controller wirelessly via the VictronConnect app.
• Ultra-Fast MPPT (Maximum Power Point Tracking)
  Increases solar energy harvest by up to 30% over PWM and up to 10% over slower MPPT models—ideal for fluctuating conditions like cloud cover.
• Advanced MPPT Detection for Partial Shading
  Innovative algorithm detects multiple MPPs on the voltage curve and locks onto the optimal one for maximum performance.
• Outstanding Efficiency
  Fanless design; peak conversion efficiency exceeds 98%.
• Fully Programmable Charging Algorithm
  Customize the charge profile or select from 8 presets via the rotary switch or VictronConnect.
• Comprehensive Electronic Protection
  • Over-temperature power derating
  • PV short circuit and reverse polarity protection
  • Reverse current protection
• Internal Temperature Sensor
  Adjusts charging voltages for temperature fluctuations automatically.
• Optional External Sensing
  Integrate with Smart Battery Sense, BMV-712, or SmartShunt for more precise voltage, temperature, and current data.
• Synchronized Parallel Charging
  Connect up to 10 SmartSolar units via Bluetooth to charge as one coordinated system.
• Fully Discharged Battery Recovery
  Capable of initiating charge even from zero volts; reconnects to Li-ion batteries with internal disconnects.
• VE.Direct Communication Port
  For direct connection to Victron GX devices, PCs, or monitoring systems.
• Remote On/Off Capability
  Ideal for use with VE.Bus BMS or other control systems.
• Programmable Relay Output
  Can be triggered by alarms or custom logic events.
• Optional Plug-in LCD Display
  Simply remove the front seal and plug in the Victron LCD screen for real-time data display and controls.

Applications:

Perfect for off-grid systems, RVs, marine setups, and residential solar arrays requiring optimal solar charge management and smart monitoring.
