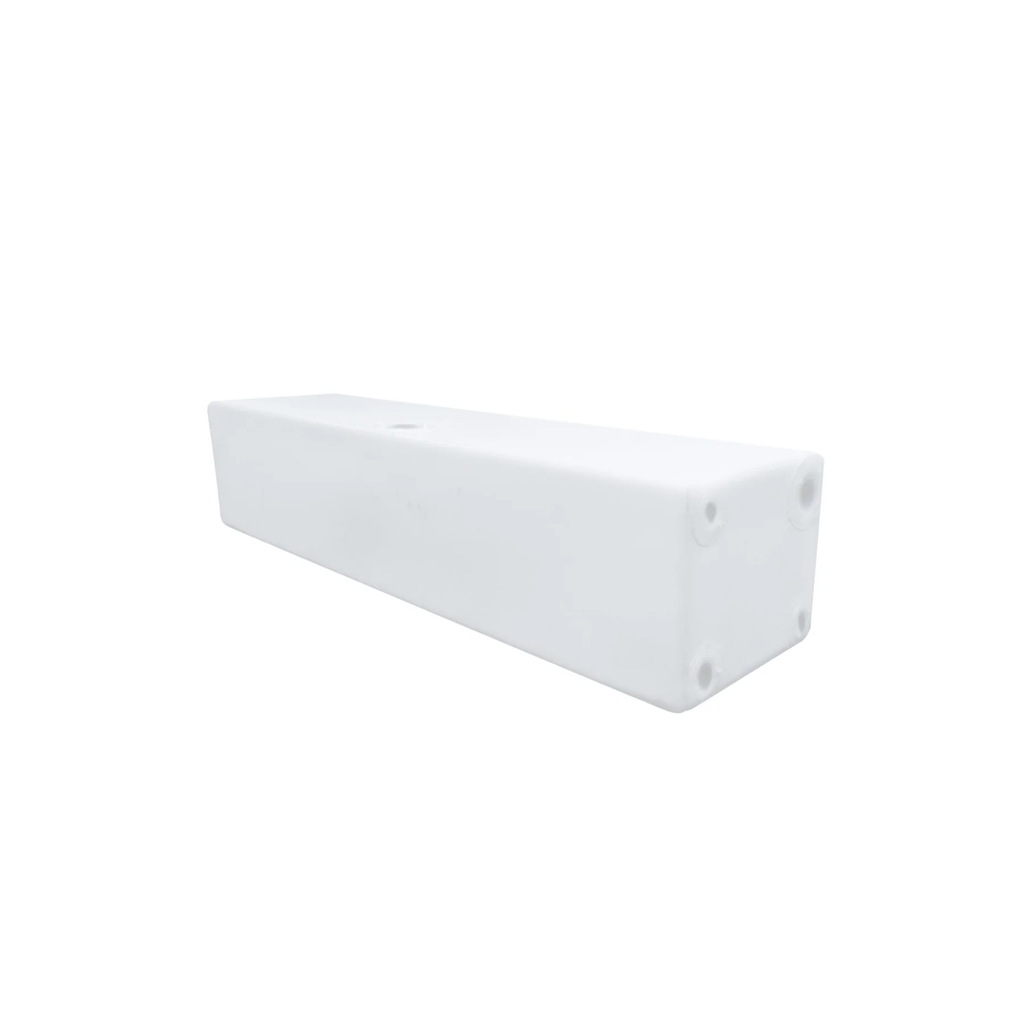

Curious Campervans Sprinter Undermount Water Tank - 10.43 Gallons

Maximize your vanlife with the Curious Campervans Sprinter Undermount Water Tank, designed to fit seamlessly under your Mercedes Sprinter’s chassis. This 10.43-gallon tank optimizes space, offering versatile fresh or grey water storage for extended campsite stays. Crafted from durable, food-grade, BPA-free polyethylene, it meets US and CA standards for safe drinking water.

• Key Features:
  • Custom Fit: Tailored for Mercedes Sprinter vans (all wheelbases), mountable on driver or passenger side.
  • Space-Saving Design: Low-profile to maintain ground clearance, freeing up interior van space.
  • Versatile Use: Suitable for grey water or fresh water (with optional Freshwater Fittings Kit). Can be mounted inside any van.
  • Durable Construction: Made from linear low-density polyethylene, resistant to outdoor elements.
  • Easy Installation: Includes strapping instructions; optional Stainless-Steel Strapping Kit for passenger-side mounting (170" wheelbase only).
• Specifications
  • Volume: 10.43 gallons (39.4 liters)
  • Dimensions: 36" x 9.5" x 8" (L x W x H)
  • Weight: Not specified (contact for details)
  • Material: Food-grade, BPA-free linear low-density polyethylene
  • Ports:
    • 1 x 1 ¼" drill-out membrane port (on top)
    • 1 x 1.25" drill-out membrane port (top)
    • 1 x 1.25" drill-out membrane port (end)
    • 1 x 0.75" port (end)
    • 2 x 0.5" ports (end)
    • All ports are NPT female-threaded.
  • Compatibility: Mercedes Sprinter vans (all wheelbases); pairs with 29-Gallon or 32-Gallon Wheel Well Water Tanks; compatible as an interior tank for any van.
• Optional Add-Ons:
  • Grey Water Fittings Kit: Includes 1.25" PVC 90, 2x 0.75" PVC 90, 0.75" ball valve, nipples (6", 4", 1.5"), 0.5" poly adaptors, elbow, plug, hose clamps, 5ft fill hose, 2ft 0.625" ID vinyl hose, and Teflon tape.
  • Fresh Water Fittings Kit: Includes 1.25" PVC 90, 2x 0.75" PVC 90, 0.75" ball valve, nipples (6", 4", 1.5"), 0.5" poly adaptor, 2x 0.5" poly elbows, hose clamps, fill port, 5ft fill hose, 5ft 0.625" ID vinyl hose, and Teflon tape.
  • Stainless-Steel Strapping Kit: Heavy-duty stainless-steel straps for passenger-side mounting (170" wheelbase only).
  • Water Level Sender & Gauge Kit: Compatible with KUS S5U Water Level Sender.
• Installation Notes:
  • Mounts on driver or passenger side with included instructions. For driver-side mounting, use corrosion-resistant stainless-steel or galvanized steel-slotted strapping with 1/4" riv-nuts (not included).
  • Orient the tank with the 4x fittings (1.25", 0.75", 2x 0.5") facing the rear or as preferred.
  • Stainless-Steel Strapping Kit is compatible with 170" Sprinter wheelbase, passenger side only. For driver-side options, consider the 17-Gallon Undermount Water Tank with its strapping kit.
• FAQ:
  • Is this tank compatible with a water level sensor? Yes, it supports KUS Water Level Sensors and Gauges.
  • Can you recommend a water tank heating pad? We suggest heating pads available on Amazon (e.g., trailer holding tank heating pads with automatic thermostat control).
  • Are the 10G and 17G tanks compatible with T1N Sprinters? Compatibility is untested for T1N Sprinters. Measure your van’s undercarriage and compare with tank dimensions to confirm fit.

Ideal for van campers seeking reliable water storage, this tank ensures convenience, durability, and safety. Pair it with our 29-Gallon or 32-Gallon Wheel Well Water Tanks for extended capacity. Spend more time exploring and less time refilling with this high-quality water solution.
