STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, (LIGHT/MID TUNE & MID/HEAVY TUNE) - Van Compass

Unlock the full potential of your 2020+ Ford Transit AWD with the Van Compass STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, LIGHT/MID TUNE (7212-LM). Engineered for lighter builds, passenger vans, and moderate conversions, this system delivers a true 2-inch lift and dramatically improves both ride quality and off-road capability without compromising everyday drivability.

Tailored to the unique suspension geometry of the AWD Transit platform, this system balances ride height, comfort, and control:

• Front lift includes a 0.75" camber correction plate and tuned coil springs, offering a total of 1.25" of additional front lift. This increases compression travel and improves handling over rough terrain.

• Rear lift is achieved with a 2" billet aluminum block and bump stop spacers to maintain proper suspension geometry and ride quality.

• Rear shock relocation brackets are included for trimming the low-hanging factory mounts, enhancing ground clearance beneath the axle tube.

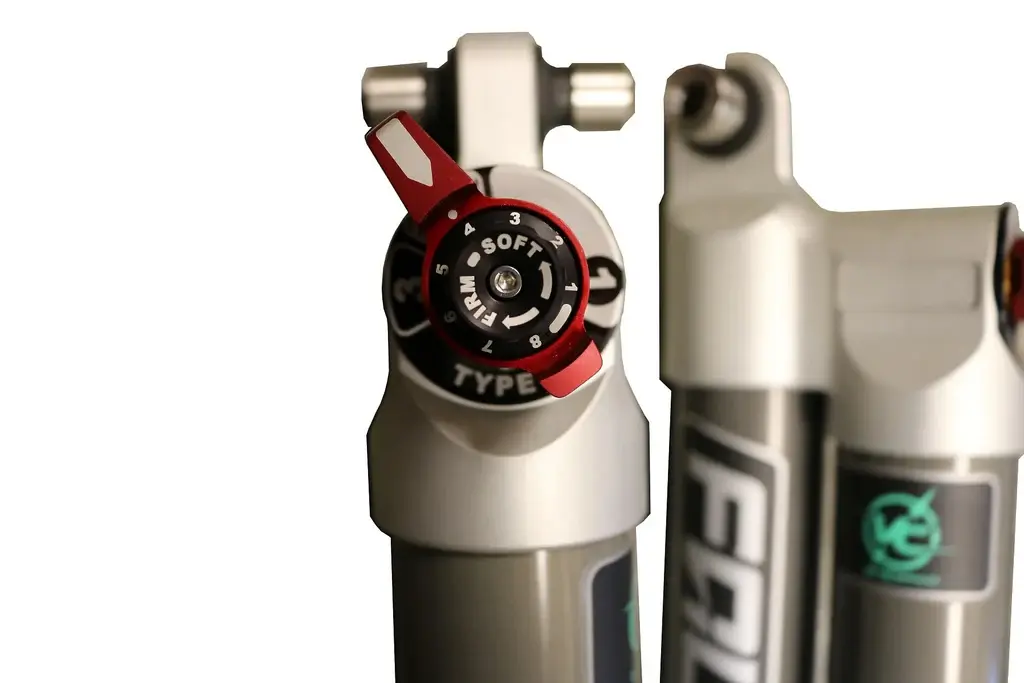

The system is anchored by VC-tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks—ideal for drivers who want adaptive performance across a variety of conditions. Featuring 10 easily selectable firmness settings via a large Fast Adjust knob, these shocks give you total control over ride comfort and stability whether you're on rocky backroads or smooth highways.

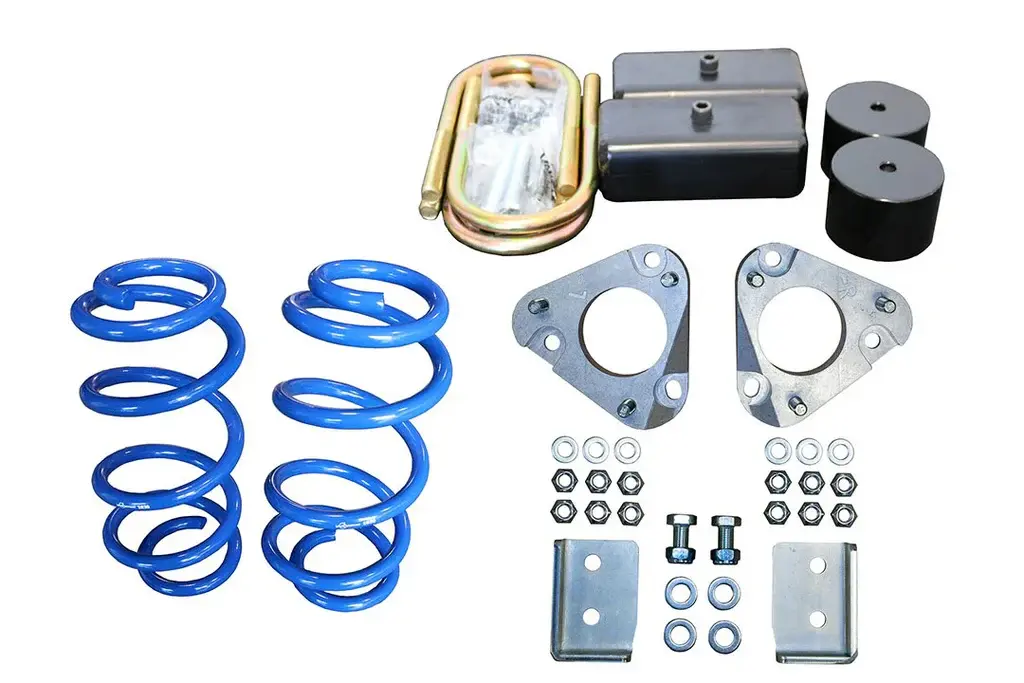

Van Compass STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, LIGHT/MID TUNE (7212-LM) Include:

• TOPO 2.0 Front Lift Coil Springs + 0.75" Camber Correction Plates

• 2" Rear Lift Billet Aluminum Blocks

• Rear Bump Stop Spacers

• Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks – Light/Mid Tune (1 Pair)

• High Clearance Rear Shock Relocation Brackets

• Complete Hardware and Installation Instructions

Notes

Professional alignment is required after installation to avoid irregular tire wear and poor handling

Bilstein B6 struts are not recommended for AWD models due to potential CV boot damage from excessive length

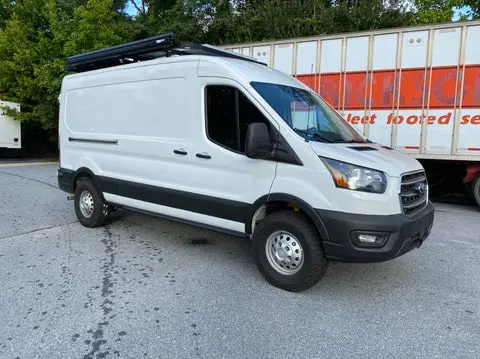

• True 2" lift for better ground clearance and a more aggressive stance

• Designed for lighter vans and mid-weight builds

• VC-tuned Falcon 3.3 SP2 Adjustable Rear Shocks with 10-position firmness dial

• Reduces body roll and wind sway, improves cornering stability

• More responsive handling on broken pavement and rough roads

• Increased bottom-out resistance with a smooth, composed ride

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 3.3 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Falcon 3.3 Shock Settings Guide

Video: Van Compass Ford Transit AWD (2020+ SRW/DRW) Stage 2 Topo 2.0 System

Video: 2020 Ford Transit AWD Front suspensions overview

Video: How to adjust your Van Compass Falcon shocks

Give your heavier Ford Transit AWD van the performance edge it needs with the Van Compass STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, MID/HEAVY TUNE (7212-MH). Specifically engineered for heavily built-out conversions and work vans, this system provides a true 2" lift while maintaining reliability and improving handling, control, and ground clearance across all driving conditions.

The Stage 2 TOPO 2.0 system is designed around the unique geometry of the 2020+ AWD Transit, ensuring improved performance without compromising drivability:

• Front lift includes 0.75" camber correction plates and heavy-rate coil springs, adding 1.25" of lift while increasing compression travel and road compliance.

• Rear lift utilizes 2" billet aluminum lift blocks and bump stop spacers, preserving rear suspension geometry under heavier loads.

• High-clearance shock relocation brackets allow trimming of the factory mounts, improving axle clearance and reducing snag risk on uneven terrain.

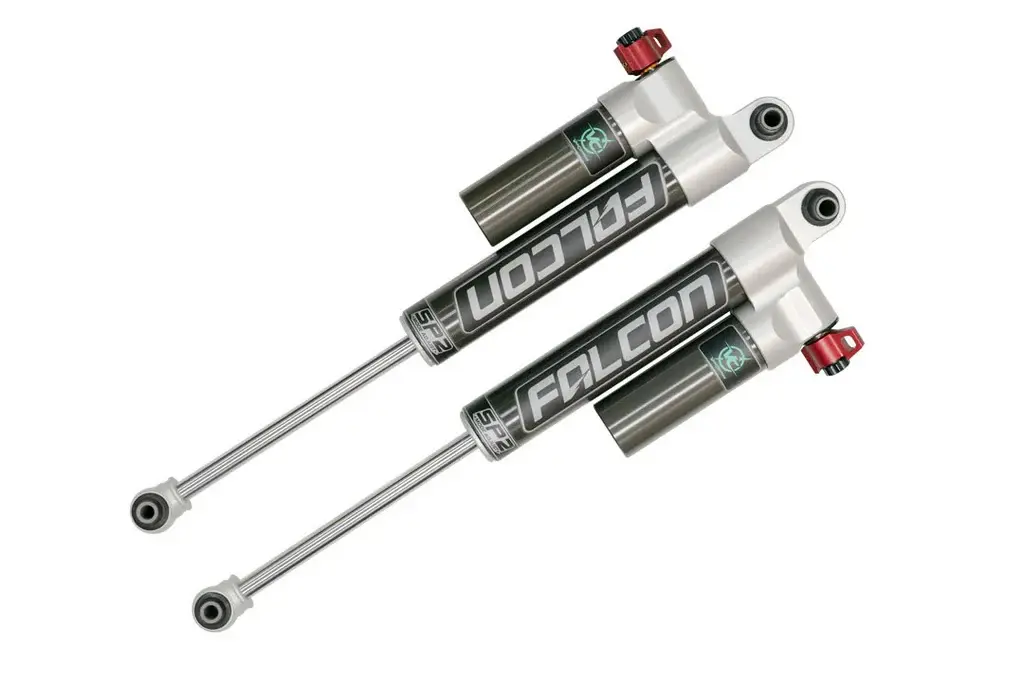

At the core of the system are VC-tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks—tuned specifically for mid to heavily loaded vehicles. These shocks feature 10 intuitive firmness settings controlled via a large Fast Adjust knob, letting you quickly fine-tune ride stiffness depending on terrain, weight, or driving style. From backcountry washboards to high-speed highway cruising, these shocks deliver consistent control, stability, and ride comfort.

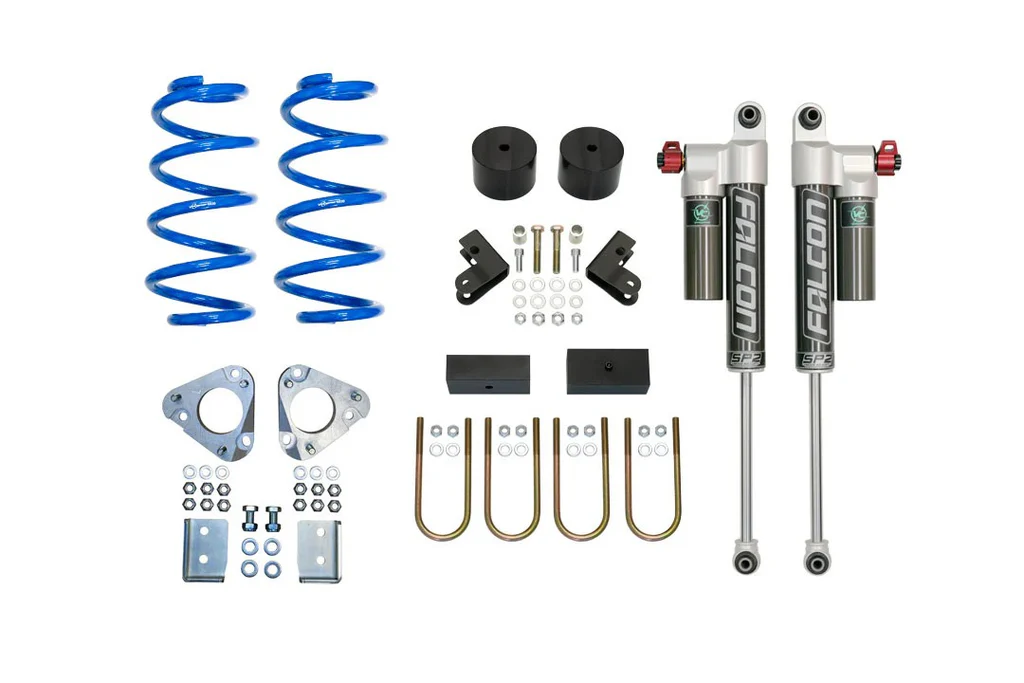

Van Compass STAGE 2 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, MID/HEAVY TUNE (7212-MH) Include:

• TOPO 2.0 Front Lift Coil Springs with 0.75" Camber Correction Plates

• 2" Rear Billet Aluminum Lift Blocks

• Rear Bump Stop Spacers

• Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks – Mid/Heavy Tune (1 Pair)

• High Clearance Rear Shock Relocation Brackets

• Complete Installation Hardware and Instructions

Notes

Professional alignment required after installation to prevent tire wear and poor handling

Bilstein B6 struts are not compatible with AWD models—using them may lead to CV boot failure

• True 2" lift for greater ground clearance and off-road capability

• Ideal for fully built camper vans, cargo haulers, and overland rigs

• VC-tuned Falcon 3.3 SP2 Adjustable Shocks with 10-position Fast Adjust dial

• Reduces body roll and sway under load

• Improved control over rough roads, potholes, and uneven surfaces

• Increased bottom-out resistance and smoother ride quality

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 3.3 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Falcon 3.3 Shock Settings Guide

Video: Van Compass Ford Transit AWD (2020+ SRW/DRW) Stage 2 Topo 2.0 System

Video: 2020 Ford Transit AWD Front suspensions overview

Video: How to adjust your Van Compass Falcon shocks
