STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, (MID TUNE & HEAVY TUNE) - Van Compass

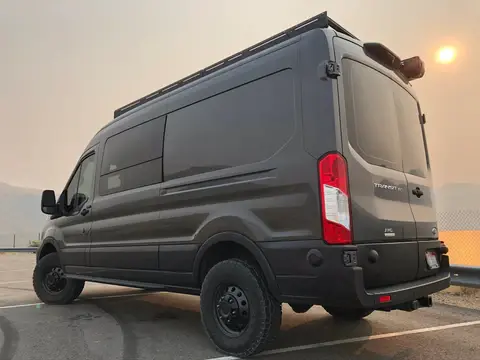

Upgrade the ride quality, stance, and load-handling capability of your Ford Transit AWD with the Van Compass STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, MID TUNE (7213-M). Designed specifically for 2020+ AWD Transit vans with single rear wheels, this system is perfect for mid-weight builds or passenger vans experiencing rear sag, delivering enhanced suspension support, better handling, and a true 2-inch lift—all while preserving OEM drivability.

The Stage 3 system is tuned to maintain suspension performance while supporting additional rear weight:

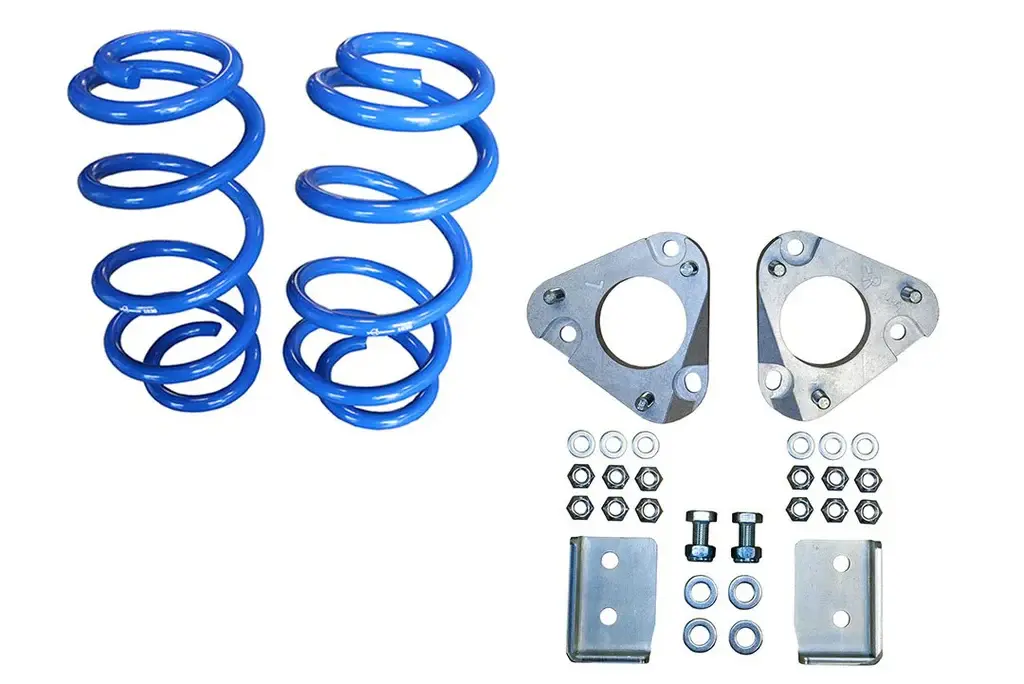

• Front lift is achieved via 0.75" camber correction plates and VC-tuned coil springs, delivering 1.25" of lift and improved compression travel for better ride quality and handling on rough terrain.

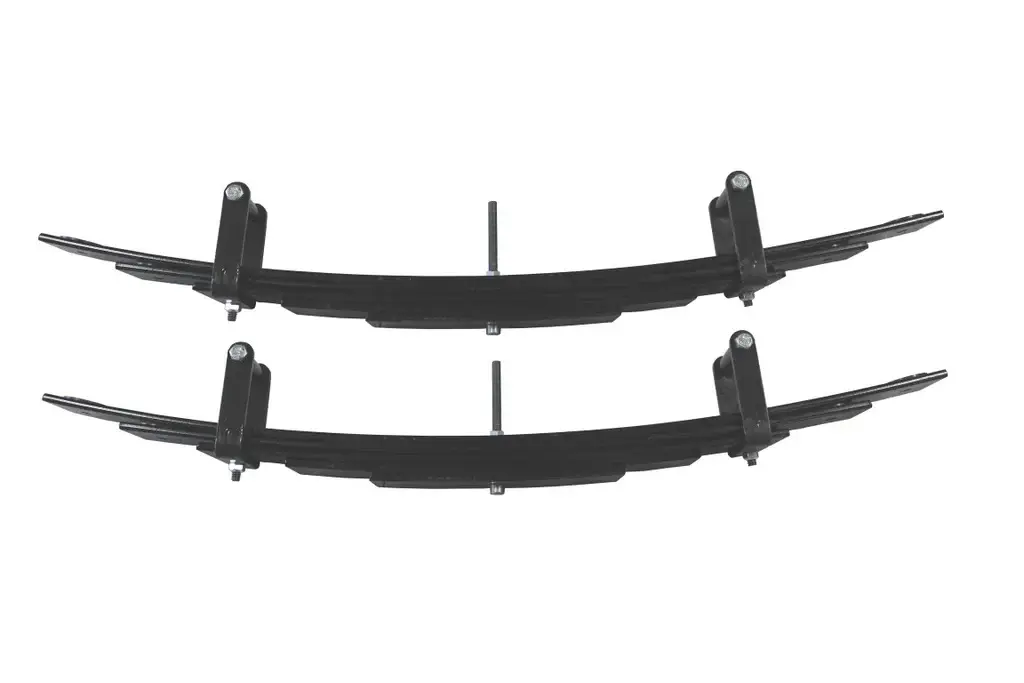

• Rear lift comes from a 5-leaf mini spring pack, which increases rear spring rate by 10–15% and adds 2.0–2.5" of lift depending on your van’s load-out. Integrated friction-reducing tips ensure quiet, smooth articulation.

• High-clearance shock relocation brackets allow trimming of the factory mounts for improved axle clearance and better underbody protection.

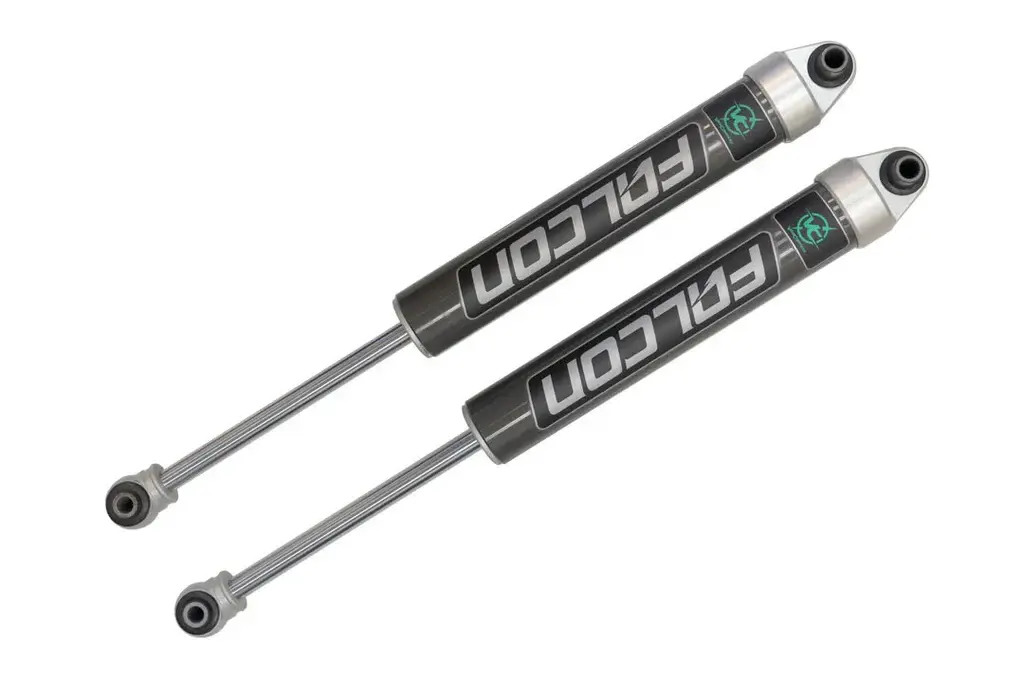

This system features VC-tuned Falcon 2.1 Monotube Rear Shocks, designed with oversized internal pistons to reduce body roll, minimize sway, and absorb sharp impacts. Whether you’re navigating broken pavement or forest service roads, you’ll enjoy better handling, increased comfort, and more confident control.

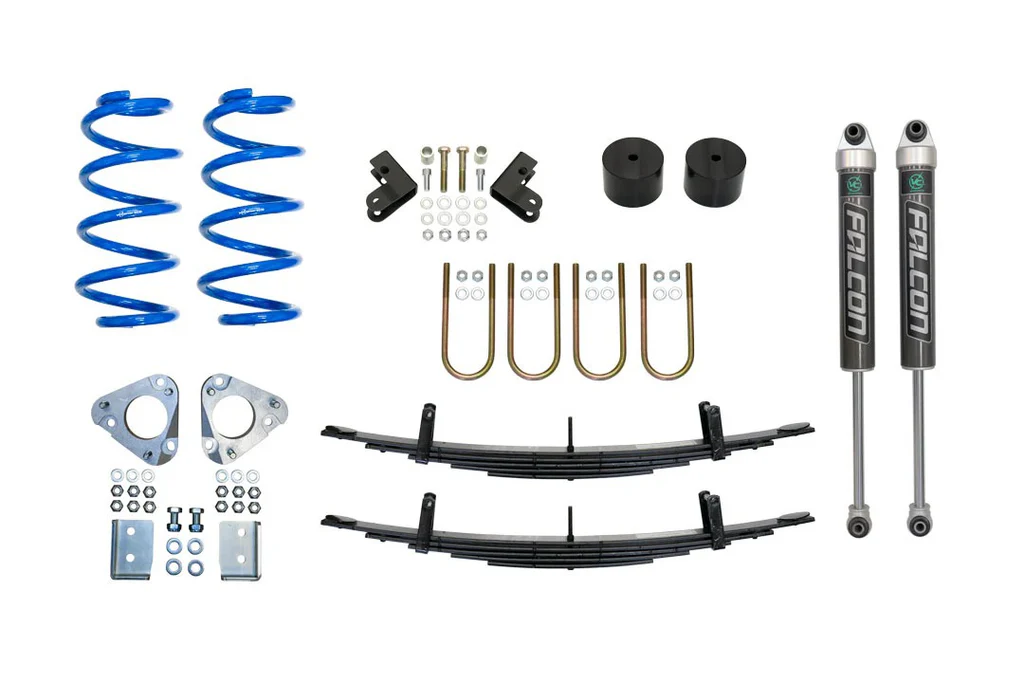

Van Compass STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, MID TUNE (7213-M) Include:

• TOPO 2.0 Front Coil Spring Lift with 0.75" Camber Correction Plates

• 5-Leaf Rear Mini Pack and Bump Stop Spacers

• VC-Tuned Falcon 2.1 Monotube Rear Shocks (1 Pair)

• High Clearance Rear Shock Relocation Brackets

• All Necessary Installation Hardware

Notes

• Professional alignment required after installation to ensure proper handling and tire wear

• Bilstein B6 struts are not compatible with AWD models—may cause CV boot failure if used

• True 2" lift for increased tire clearance and off-road capability

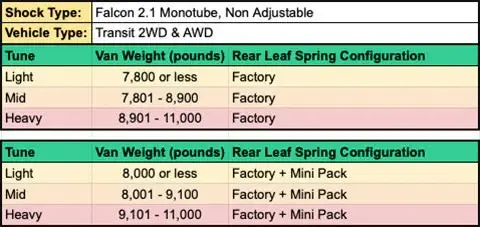

• Tuned for mid-weight builds and passenger vans experiencing rear sag

• VC-Tuned Falcon 2.1 Monotube Shocks for improved handling and stability

• Rear mini pack boosts spring rate for better load support

• Increased ground clearance, approach, and departure angles

• Enhanced ride quality over rough roads, potholes, and trails

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Rear Leaf Pack Installation Instructions

2013+ Transit Rear Falcon 2.1 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Video: Van Compass Ford Transit AWD (2020+) Stage 2 Topo 2.0 System (Single Rear Wheel)

Video: 2020 Ford Transit AWD Front suspension overview

Enhance the ride quality, load handling, and ground clearance of your 2020+ Ford Transit AWD with the Van Compass STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, HEAVY TUNE (7213-H). Designed specifically for heavily built-out vans, overland rigs, and work vans carrying significant gear or equipment, this kit provides reliable lift, improved suspension performance, and enhanced drivability across rough terrain and highways alike.

This heavy-tune system is engineered for vans that demand more rear spring support and increased suspension control:

• Front suspension uses a 0.75" camber correction plate and heavy-tuned coil springs, delivering 1.25" of lift with improved compression travel for superior control over uneven ground.

• Rear lift is achieved with a 5-leaf heavy-duty mini spring pack, increasing rear spring rate by up to 15% and lifting the rear by 2.0" to 2.5", depending on your build’s weight. The pack features friction-reducing tips for smooth, quiet articulation.

• High-clearance rear shock relocation brackets allow trimming of the factory mounts, reducing snag points and improving axle tube clearance.

The kit includes VC-tuned Falcon 2.1 Monotube Shocks, built with larger internal pistons for responsive damping under load. These shocks minimize body roll, reduce sway, and absorb hard hits—ensuring your van handles predictably and comfortably whether cruising highways or tackling rugged trails.

Van Compass STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT AWD 2020+, HEAVY TUNE (7213-H) Includes:

• TOPO 2.0 Front Coil Spring Lift with 0.75" Camber Correction Plates

• Rear 5-Leaf Heavy-Duty Mini Pack and Bump Stop Spacers

• VC-Tuned Falcon 2.1 Monotube Rear Shocks (1 Pair)

• High Clearance Rear Shock Relocation Brackets

• All Required Hardware

Notes

Professional alignment is required after installation to prevent premature tire wear and poor handling

Bilstein B6 struts are not compatible with AWD systems due to potential CV boot damage

• True 2" lift allows for larger tires and improved ground clearance

• Tuned for heavily loaded vans, overland conversions, and work builds

• Increased rear spring rate fights rear sag and bottoming out

• VC-Tuned Falcon 2.1 shocks provide enhanced stability and comfort

• Improved control on rough roads, trails, and broken pavement

• Increased approach, departure, and break-over angles for off-road travel

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Rear Leaf Pack Installation Instructions

2013+ Transit Rear Falcon 2.1 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Video: Van Compass Ford Transit AWD (2020+) Stage 2 Topo 2.0 System (Single Rear Wheel)

Video: 2020 Ford Transit AWD Front suspension overview
