9,850.00 $Stage 4.3 Dually System - Sprinter 3500 4x4, 2015-2022 - Falcon 3.3 light/mid - mid/heavy tune, Opti-Rate - Van Compass
SKU:
2022323582
⚠️ SPECIAL ORDER Manufacturing times may vary. Please contact us for more information. NON-EXCHANGEABLE / NON-REFUNDABLE
The Van Compass STAGE 4.3 DUALLY SYSTEM is a complete suspension upgrade designed specifically for 2015–2022 Mercedes Sprinter 3500 4X4 vans. Built for adventure vans, Class B RVs, heavy-duty work vans, and fully converted rigs operating near or above GVWR, this system dramatically improves ride quality, handling, load support, and overall vehicle control both on and off the road. Available in Light/Mid and Mid/Heavy tunes, it allows the suspension to be matched to the weight and intended use of the vehicle.
At the heart of the system are Van Compass-tuned Falcon 3.3 Fast Adjust shocks, featuring a 10-position external Fast Adjust knob for quick, tool-free damping changes and an SP2 internal adjustment providing two additional tuning profiles. This broad range of adjustment allows the suspension to be softened for comfort on rough terrain or firmed up for improved control during highway driving, crosswinds, cornering, and heavy loads.

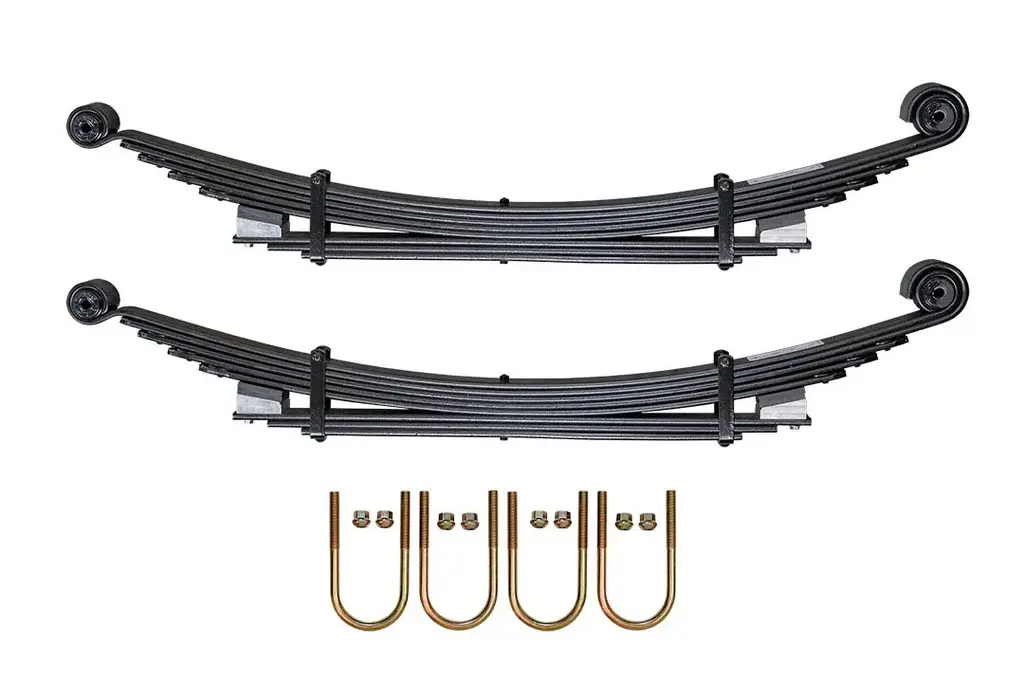

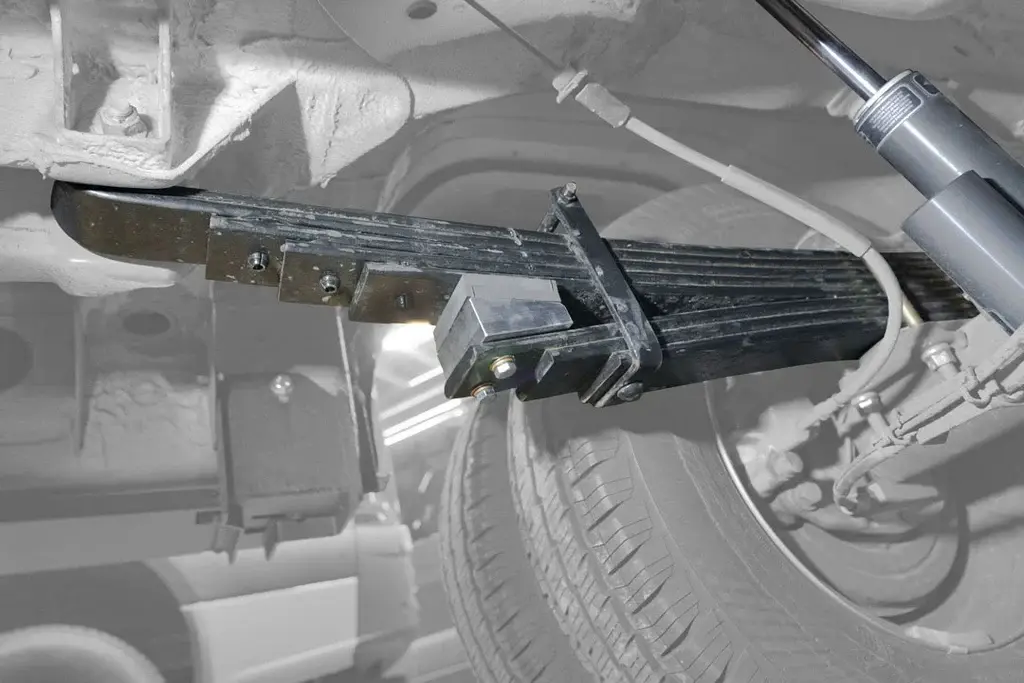

The Opti-Rate Full Replacement Rear Leaf Spring System replaces the factory rear leaf springs with a weight-specific system designed to support heavier builds while maintaining a controlled, comfortable ride. It restores up to 1.25" of rear ride height, corrects sag, and keeps the Sprinter level and composed under load. Progressive Bump Buddy jounce bumpers further improve suspension progression, increasing bottom-out resistance while reducing sway, harsh impacts, and unwanted suspension noise.

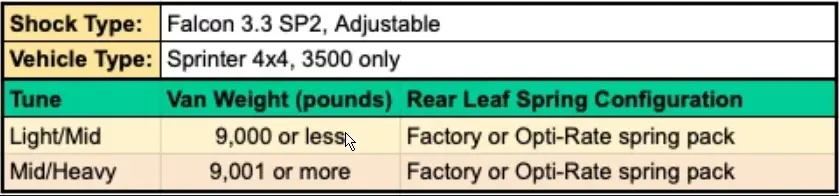

Available Configurations
- Light/Mid Tune (7203-LM): Optimized for lightly to moderately loaded Sprinter 3500 4X4 builds, including adventure vans, camper conversions, and Class B RVs.
- Mid/Heavy Tune (7203-MH): Calibrated for heavier builds operating near or above GVWR, including fully equipped expedition vans, heavy conversions, and work vehicles carrying substantial loads.
Key Features
- Falcon 3.3 Fast Adjust shocks with 10-position external damping adjustment
- SP2 internal adjustment with two additional tuning profiles
- Opti-Rate Full Replacement Rear Leaf Spring System matched to vehicle weight
- Restores up to 1.25" of rear ride height and corrects sag
- Improved load support and rear suspension control
- Reduced body roll, sway, wind buffeting, and cornering instability
- Improved absorption of large impacts, potholes, washboard roads, and rough terrain
- Progressive Bump Buddy jounce bumpers for smoother suspension compression
- Increased bottom-out resistance without unnecessary harshness or clunking
- Tuned specifically for the weight and requirements of Sprinter 3500 4X4 vans
- 100% bolt-on installation with no cutting or welding required
- Made in the USA

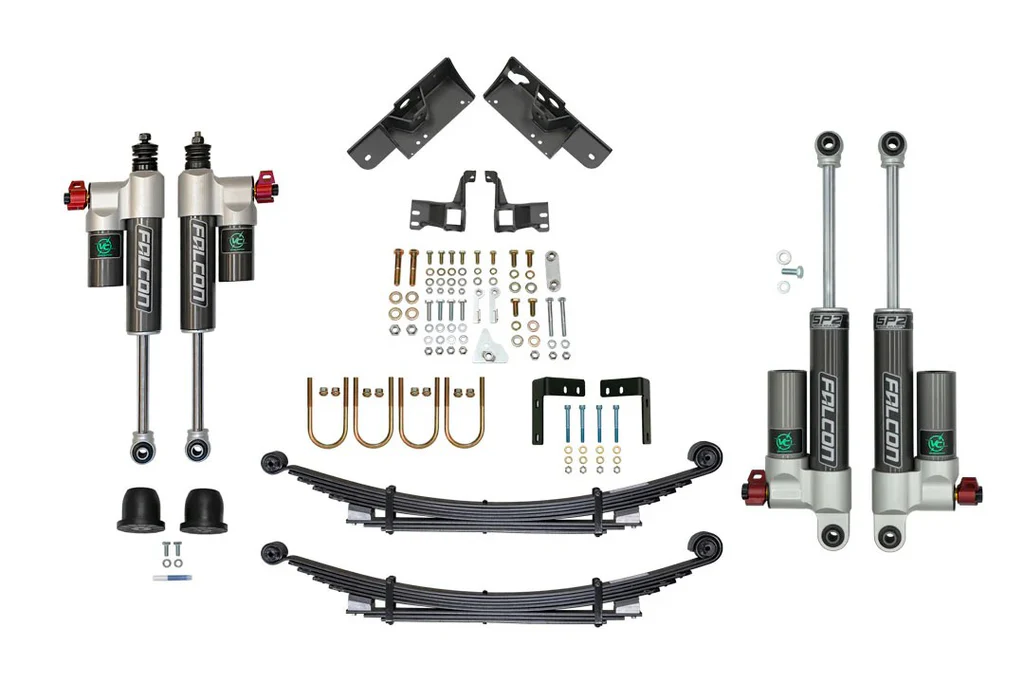

What's Included

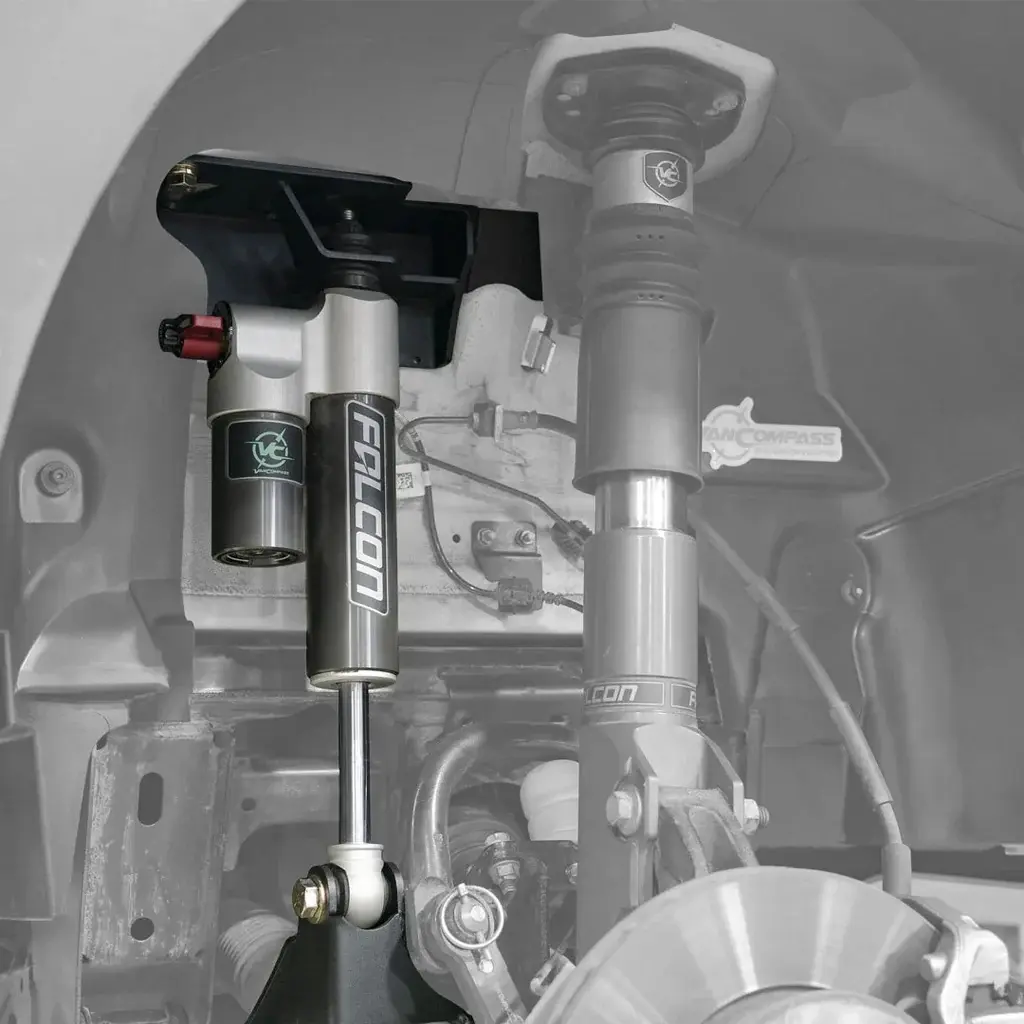

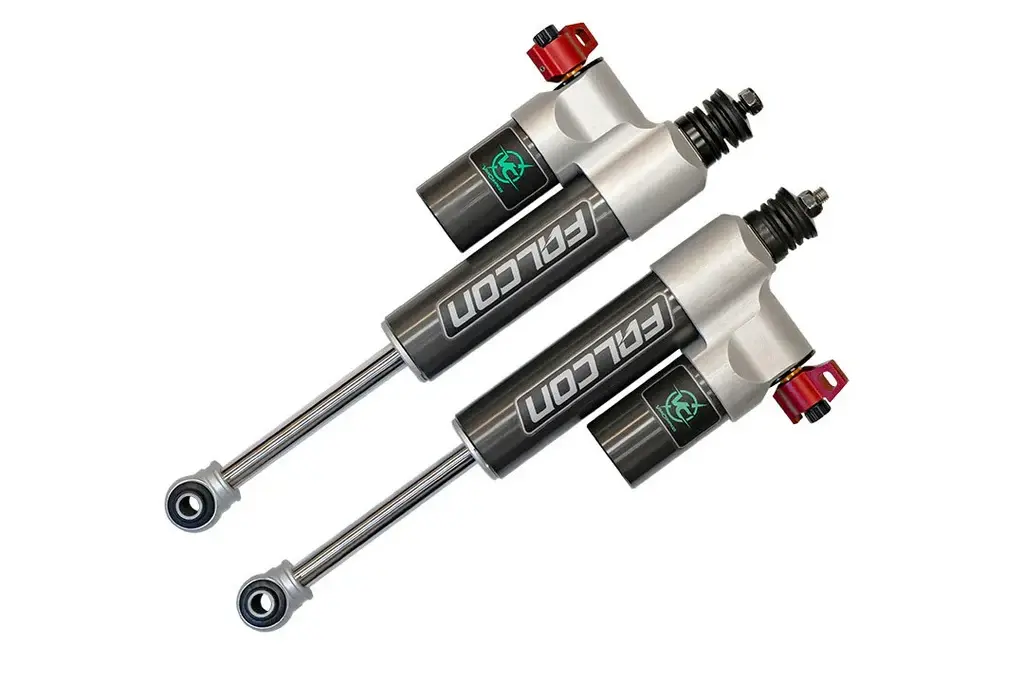

- Falcon 3.3 Fast Adjust Front Shocks with mounting brackets

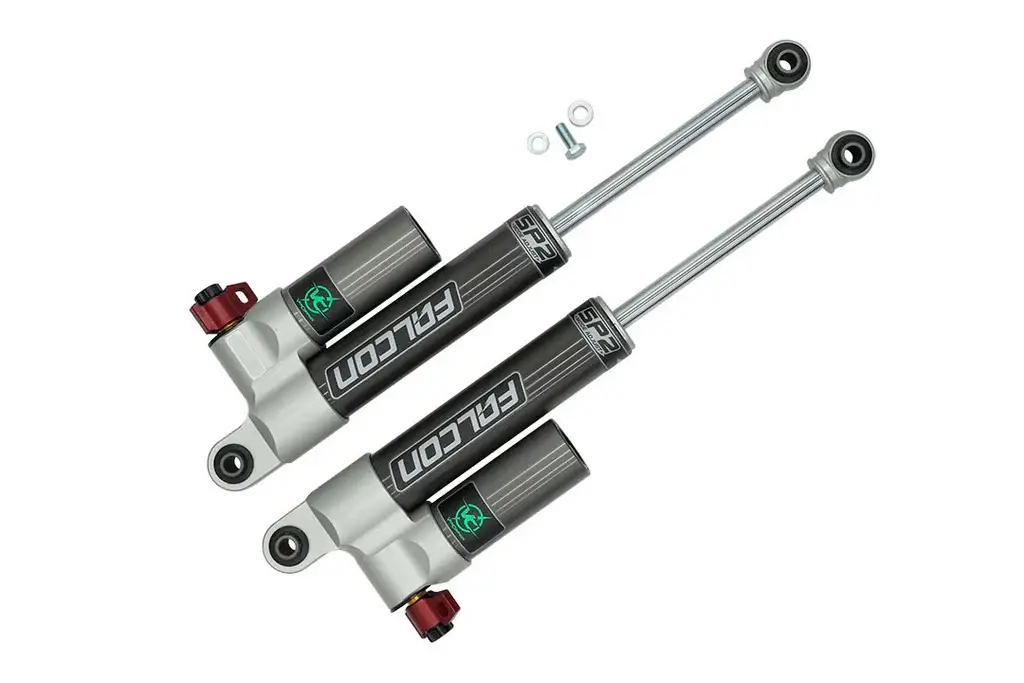

- Falcon 3.3 Fast Adjust Rear Shocks with SP2 adjustment
- Opti-Rate Full Replacement Rear Leaf Spring System
- Front Bump Buddy Progressive Jounce Bumpers
- Dust boots for all four shocks
- Complete installation hardware
- Detailed installation instructions
Fitment Notes
- Compatible with Mercedes Sprinter 3500 4X4, 2015–2022.
- Vans equipped with the HD Rear A/C Package may require careful repositioning of refrigerant lines during front shock installation.
- Not compatible with Sumo Spring Rebel kits SSR-327-47-2 and SSR-327-40-2 due to interference with the shock body.
2015+ Front Shock installation instructions
Sprinter AWD and 4x4 Front Bump Buddies installation instructions
Falcon 3.3 DRW Rear Shock Installation Instructions
Sprinter 3500 4WD Rear Spring Installation Instructions
Falcon 3.3 Shock Settings Guide
