Stage 5 System, 2" Lift - Sprinter 2500 4x4, 2019-2022 - (mid / heavy tune) - Van Compass

⚠️ SPECIAL ORDER Manufacturing times may vary. Please contact us for more information. NON-EXCHANGEABLE / NON-REFUNDABLE

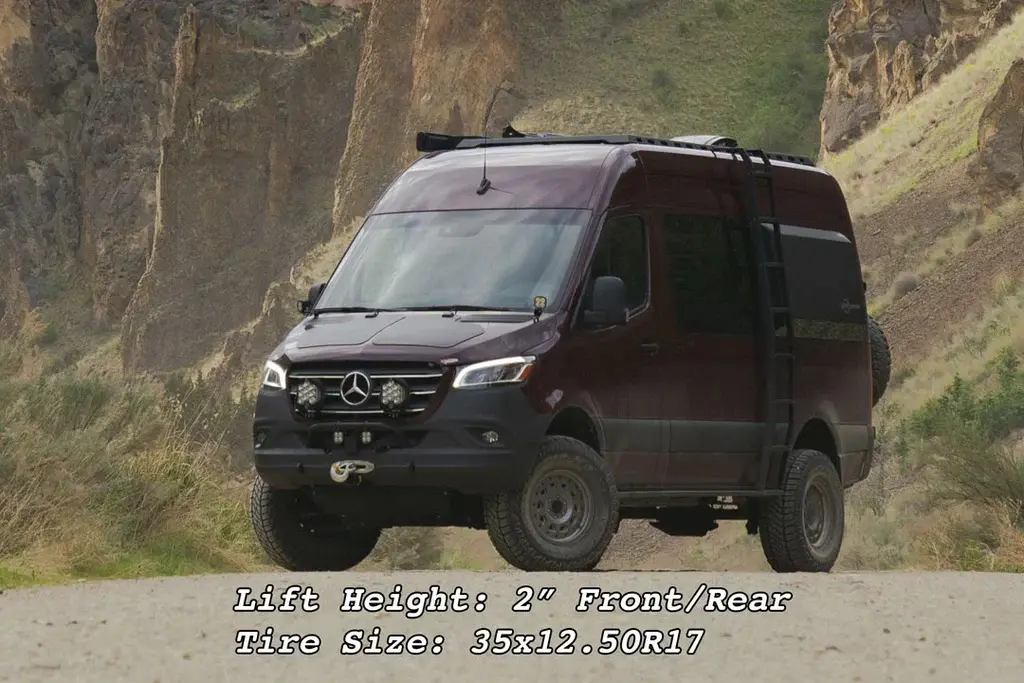

The Van Compass Stage 5 Suspension System is a complete 2" lift and suspension upgrade for 2019–2022 Mercedes Sprinter 2500 4X4 vans, combining increased ground clearance with improved ride quality, handling, and off-road capability. Designed for adventure vans, overland builds, Class B RVs, and converted Sprinters, the system combines a Striker 2" Lift System, VC-tuned Falcon 2.1 Monotube Shocks, a rear mini leaf spring pack, and progressive Bump Buddy jounce bumpers. The 2" lift improves approach, break-over, and departure angles while allowing larger tires, while the rear mini leaf spring pack restores approximately 2" of rear ride height, helping correct sag caused by additional equipment and interior conversions. Falcon 2.1 shocks provide controlled damping to reduce body roll, sway, and harsh impacts, delivering a more stable and comfortable ride on highways, rough pavement, and off-road terrain.

Key Features

• Striker 2" Lift System for increased ground clearance and larger tire fitment

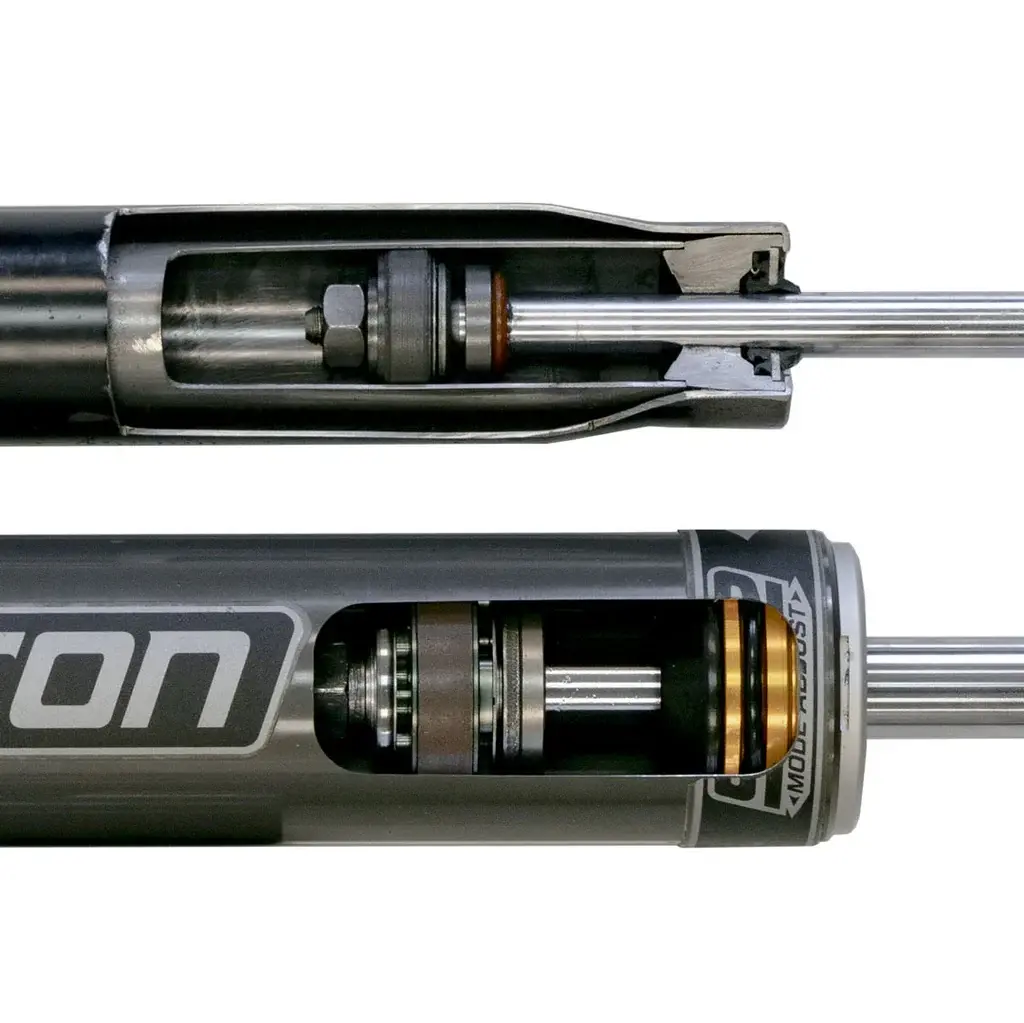

• VC-tuned Falcon 2.1 Monotube Shocks with application-specific damping
• Rear Mini Leaf Spring Pack restores approximately 2" of rear ride height and improves load support
• Progressive Bump Buddy jounce bumpers improve bottom-out resistance and suspension control
• Improved cornering stability, wind-sway control, and ride comfort
• Increased approach, break-over, and departure angles for improved off-road capability
• Maintains proper suspension geometry while increasing clearance

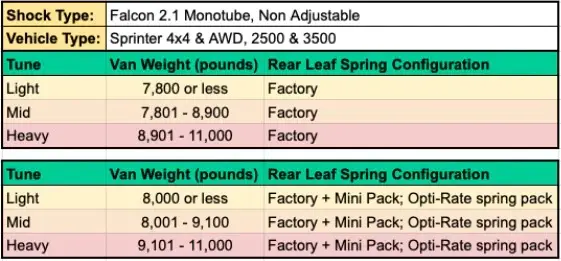

• Mid Tune: optimized for adventure vans carrying moderate loads
• Heavy Tune: optimized for heavily equipped vans operating at or near GVWR

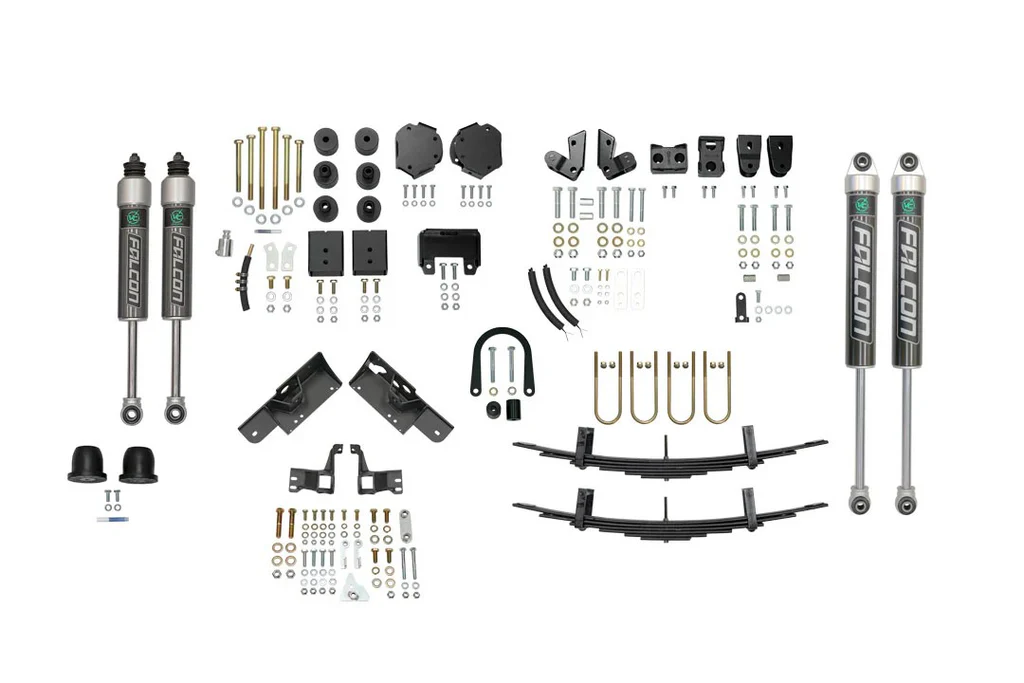

Includes & Fitment

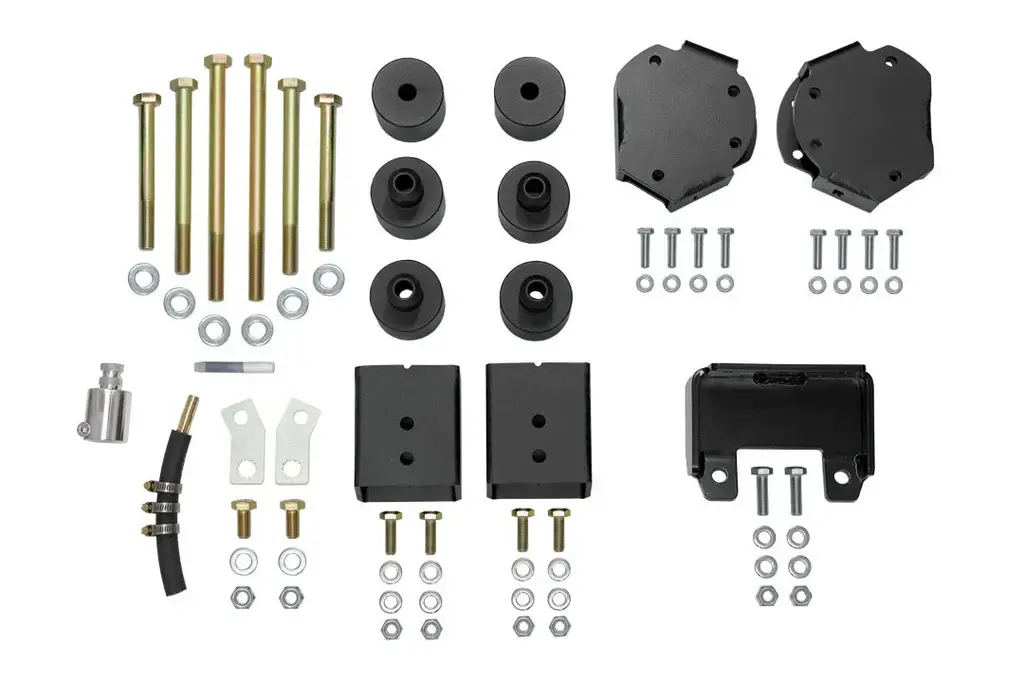

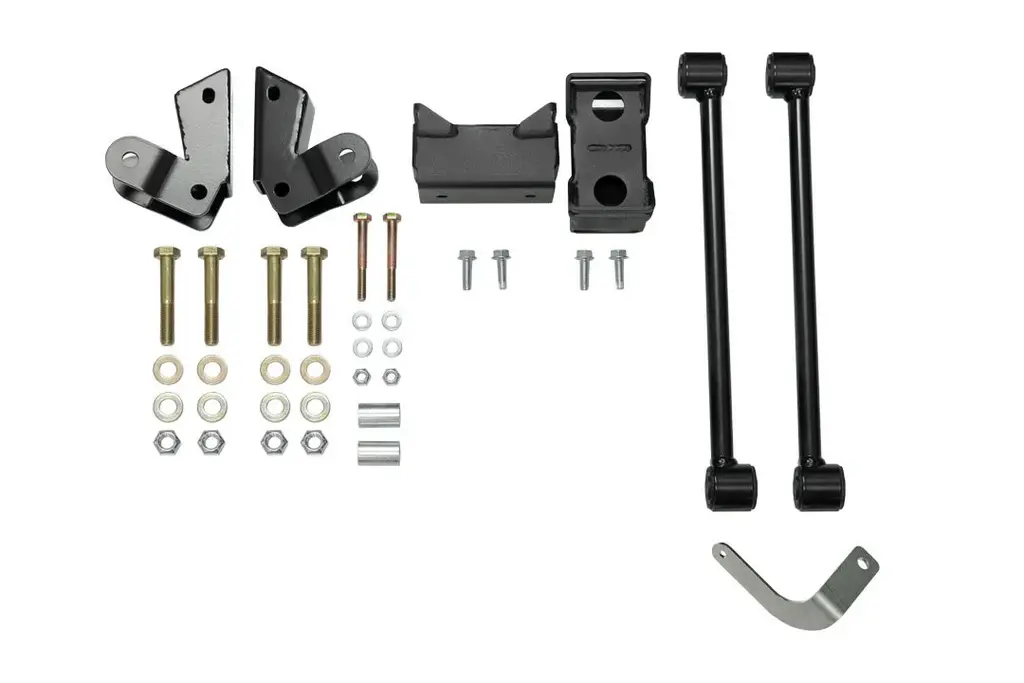

• Striker 2" front and rear lift components
• Falcon 2.1 Monotube front shocks with mounting brackets
• Falcon 2.1 Monotube rear shocks with SP2
• Front Bump Buddy progressive jounce bumpers

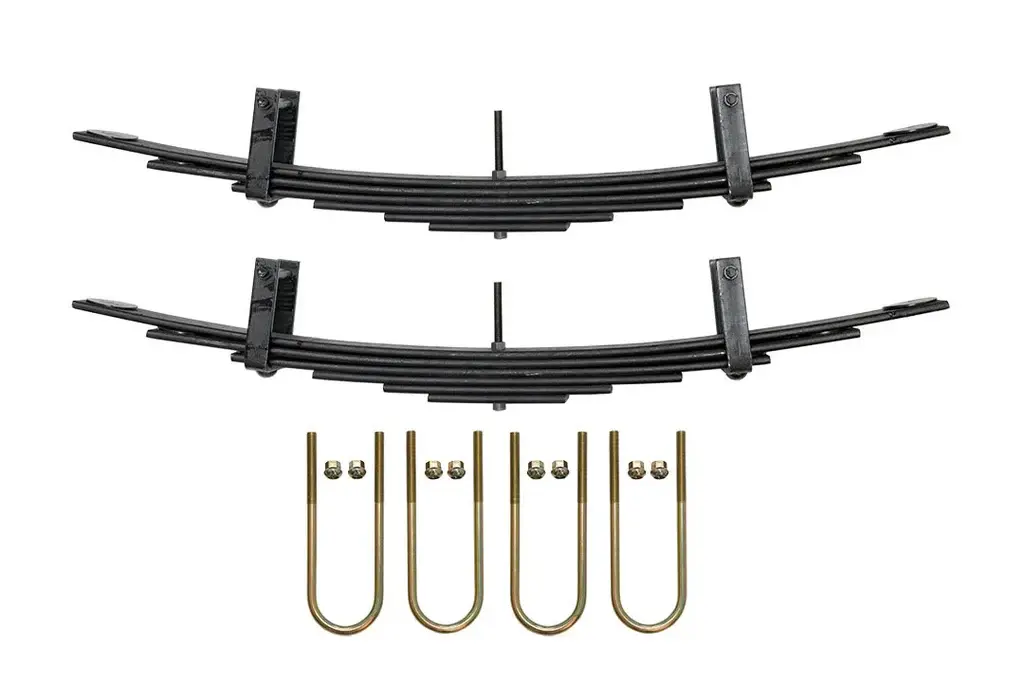

• Rear mini leaf spring pack
• Dust boots for all four shocks
• Complete mounting hardware and installation instructions
• Vehicle: Mercedes-Benz Sprinter 2500
• Years: 2019–2022
• Drivetrain: 4X4

Compatibility & Installation:

 Recommended wheels are 17" x 8.5" with +45 mm offset. Vans equipped with the HD Rear A/C Package may require careful repositioning of refrigerant lines during front shock installation. Not compatible with Sumo Spring Rebel kits SSR-327-47-2 and SSR-327-40-2 due to interference with the shock body.

2019+ VS30 4x4 Striker 2" Front Kit Installation Instructions

2019+ VS30 4x4 Striker 2" Rear Kit Installation Instructions

2015+ Sprinter 4x4 Falcon Front Shock Installation Instructions

NCV3, VS30 4x4 Falcon 2.1 Rear Shock Installation Instructions

Sprinter AWD and 4x4 Front Bump Buddies installation instructions
