Stage 5 System, 2" Lift - Sprinter 4x4 (2015-2018 2500 only) - (light / mid / heavy tune) - Van Compass

⚠️ SPECIAL ORDER Manufacturing times may vary. Please contact us for more information. NON-EXCHANGEABLE / NON-REFUNDABLE

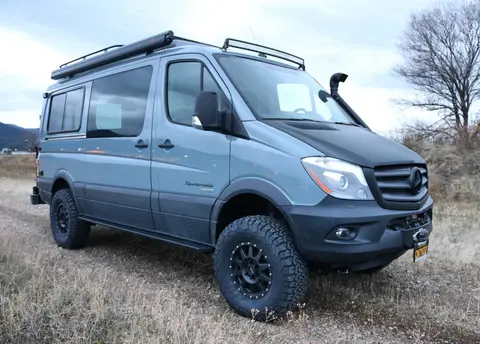

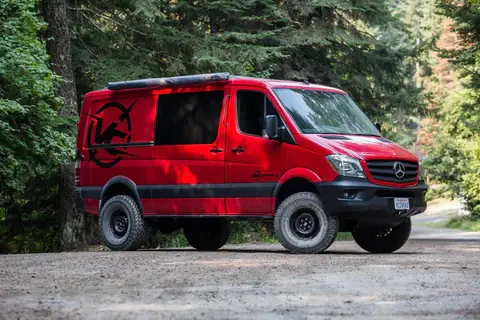

Upgrade your Mercedes Sprinter 2500 4x4 with the Van Compass STAGE 5 System, a complete 2" suspension lift designed to improve ground clearance, handling, ride quality, and off-road capability. Available in Light, Mid, and Heavy Tune configurations, the system combines the Striker 2" Lift Kit, VC-tuned Falcon 2.1 Monotube Shocks, rear Mini Leaf Spring Pack, and progressive Bump Buddy jounce bumpers into a comprehensive bolt-on suspension upgrade. The 2" lift improves approach, break-over, and departure angles while creating additional clearance for larger tires, while the tuned shocks reduce body roll, wind sway, and harsh impacts for a more controlled ride on pavement and rough terrain.

The rear Mini Leaf Spring Pack increases spring rate and restores approximately 2" of rear ride height, helping correct sag caused by conversions, gear, water tanks, cabinetry, and other added weight while maintaining proper suspension geometry and a quiet, factory-like ride. The Falcon 2.1 shocks are matched to the vehicle's intended load: Light Tune for lightly equipped builds, Mid Tune for moderate to heavier adventure conversions, and Heavy Tune for heavily loaded vans operating near their GVWR. Progressive Bump Buddy jounce bumpers further improve bottom-out resistance and suspension progression without introducing unnecessary harshness.

Key Features

• 2" suspension lift for increased ground clearance and larger tire fitment
• Striker 2" Front & Rear Lift System
• VC-tuned Falcon 2.1 Monotube Shocks matched to Light, Mid, or Heavy applications
• Rear Mini Leaf Spring Pack for approximately 2" of rear lift and increased spring support
• Progressive Front Bump Buddy jounce bumpers
• Improved cornering stability and reduced wind sway
• Better damping over broken pavement, rough roads, and off-road terrain
• Increased bottom-out resistance and suspension travel
• Maintains proper suspension geometry and ride balance
• 100% bolt-on installation with included hardware and instructions

Tune Options

• Light Tune (7031-L) – Designed for lightly built adventure, passenger, and conversion vans with lighter payloads. 2015–2018 Sprinter 2500 4x4 only.
• Mid Tune (7055-M) – Optimized for moderately to heavily equipped Sprinter 2500 4x4 vans. 2019–2022 models.
• Heavy Tune (7031-H) – Designed for heavily built 2015–2018 Sprinter 2500 4x4 vans requiring greater damping and load control.

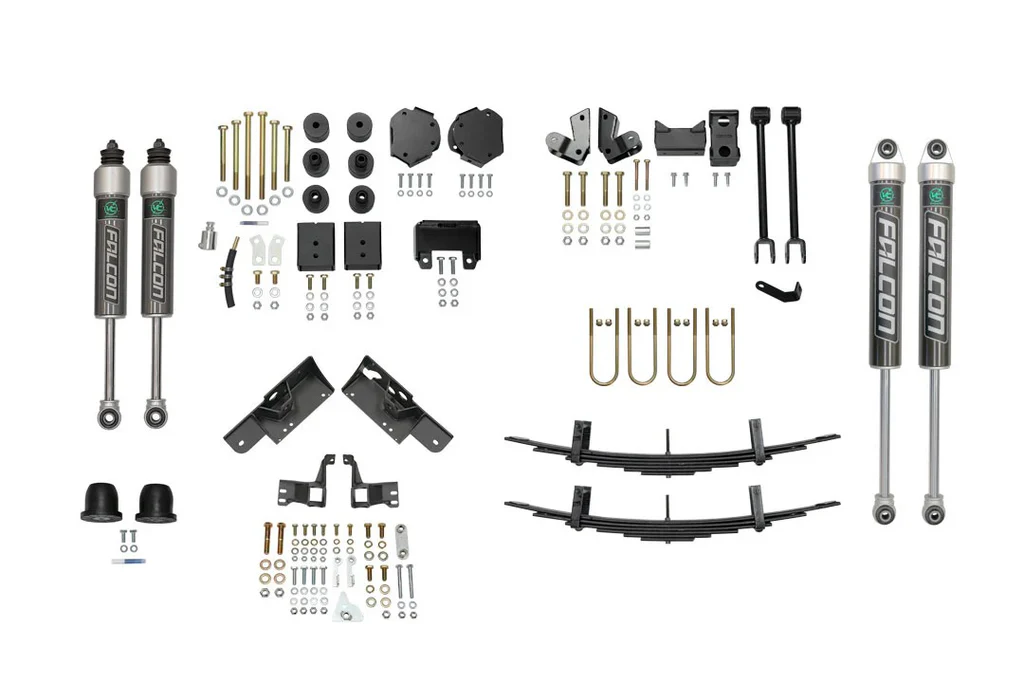

Includes

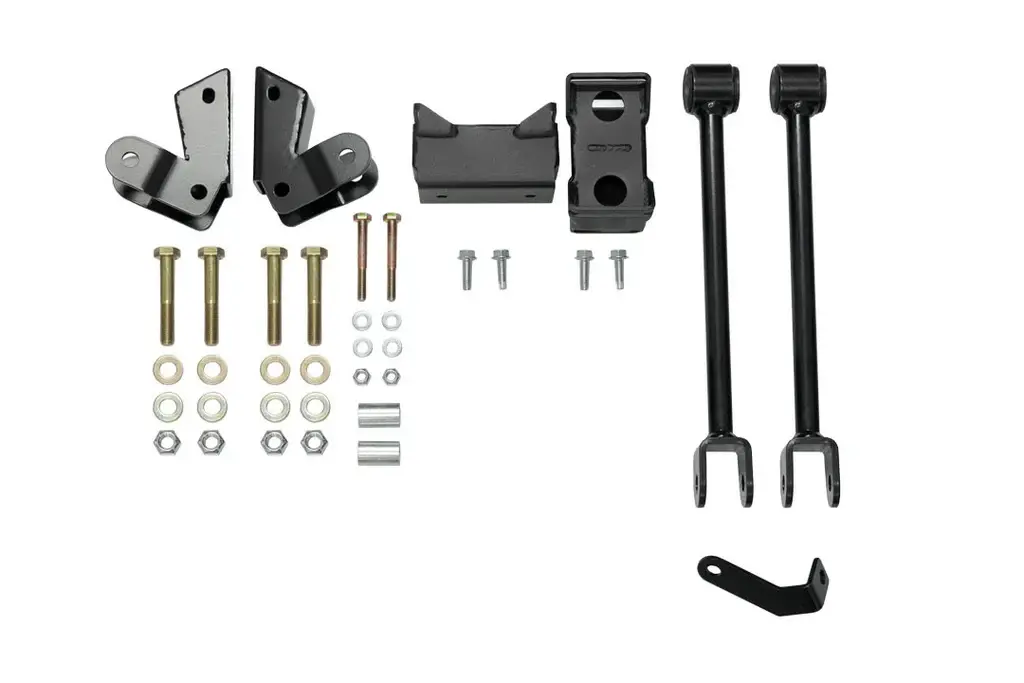

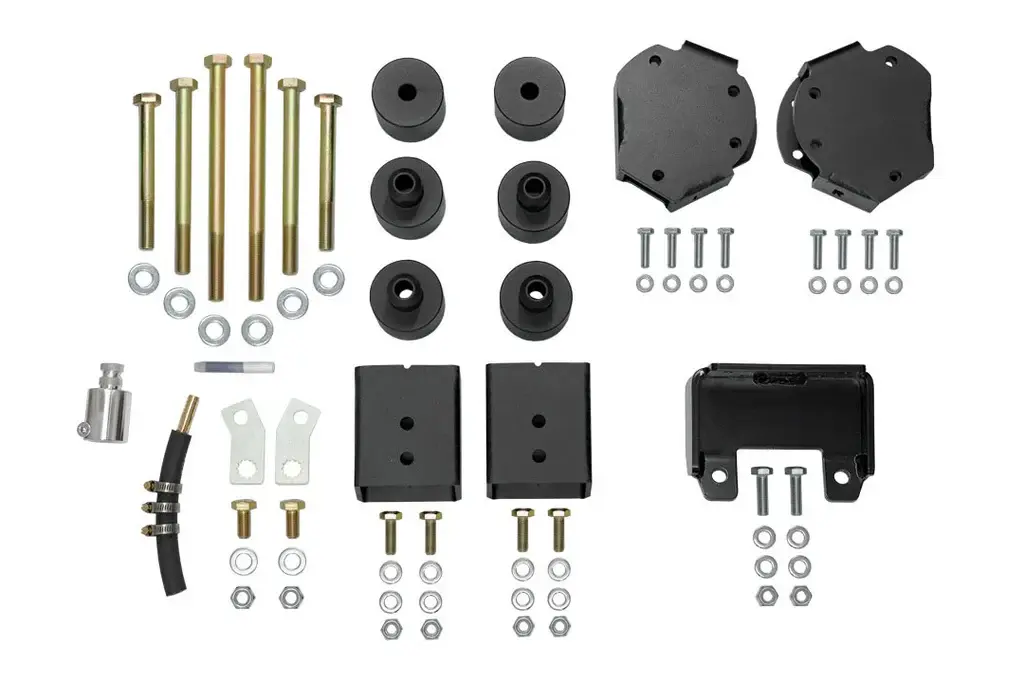

• Striker 2" Front & Rear Lift Kit

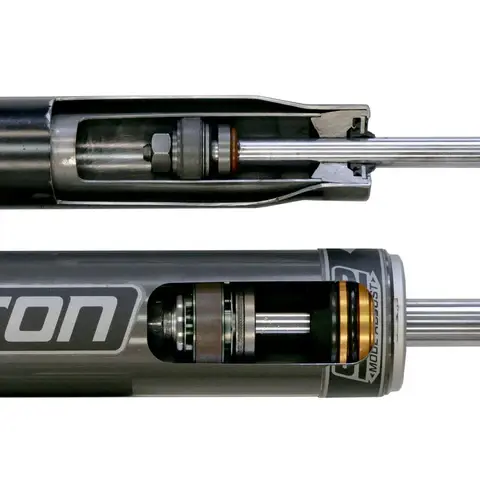

• Falcon 2.1 Monotube Front Shocks with Mounting Brackets
• Falcon 2.1 Monotube Rear Shocks with SP2 Adjustability
• Front Bump Buddy Progressive Jounce Bumpers

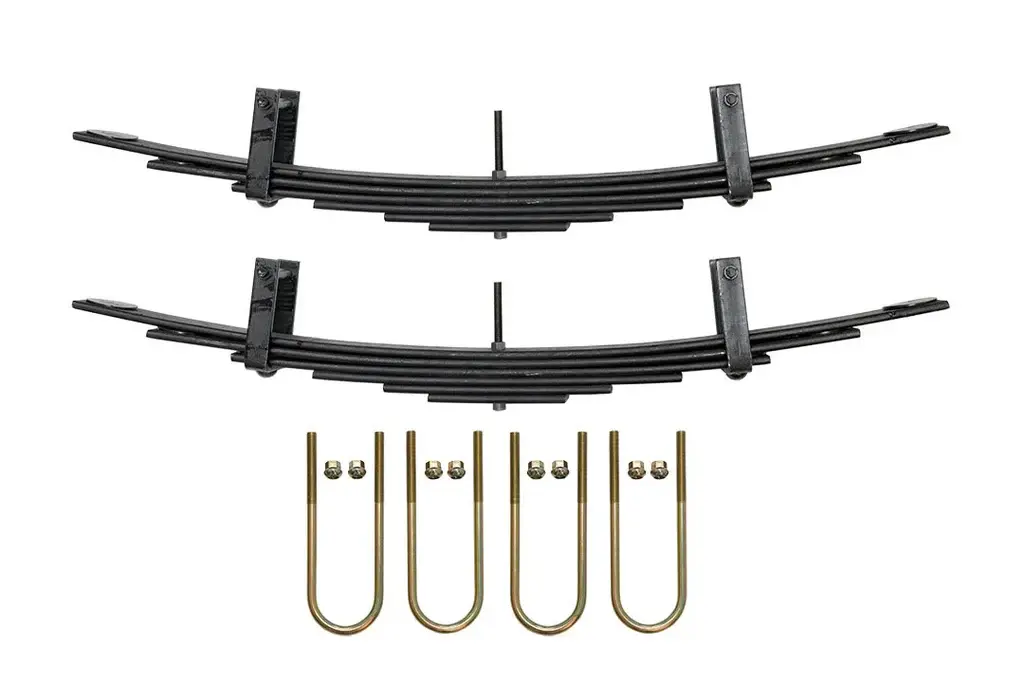

• Rear Mini Leaf Spring Pack
• Dust Boots for all four shocks
• U-bolts and required installation hardware
• Detailed installation instructions

Fitment Notes

• 2015–2018 Light & Heavy Tune: Sprinter 2500 4x4 only
• 2019–2022 Mid Tune: Sprinter 2500 4x4
• Recommended wheel size: 17" x 8.5", +45 mm offset
• Vans equipped with the HD Rear A/C Package may require repositioning of refrigerant lines during front shock installation.
• Not compatible with Sumo Spring Rebel kits SSR-327-47-2 and SSR-327-40-2 due to interference with the shock body.

2015-2018 NCV3 4x4 Striker 2" Front Kit Installation Instructions

2015-2018 NCV3 4x4 Striker 2" Rear Kit Installation Instructions

2015+ Sprinter 4x4 Falcon Front Shock Installation Instructions

NCV3, VS30 4x4 Falcon 2.1 Rear Shock Installation Instructions

Sprinter AWD and 4x4 Front Bump Buddies installation instructions

Video: Van Compass Stage 5 System, 2" Lift - Sprinter 4x4 (2015–2018 2500 Only) - Light Tune (7031-L)

-----------------------------------------------------------------

2019+ VS30 4x4 Striker 2" Front Kit Installation Instructions

2019+ VS30 4x4 Striker 2" Rear Kit Installation Instructions

2015+ Sprinter 4x4 Falcon Front Shock Installation Instructions

NCV3, VS30 4x4 Falcon 2.1 Rear Shock Installation Instructions

Sprinter AWD and 4x4 Front Bump Buddies installation instructions

Video: Van Compass Mercedes Sprinter 4X4 (2019-2022 2500) 2" Lift (Stage 5 System)

-----------------------------------------------------------------

2015-2018 NCV3 4x4 Striker 2" Front Kit Installation Instructions

2015-2018 NCV3 4x4 Striker 2" Rear Kit Installation Instructions

2015+ Sprinter 4x4 Falcon Front Shock Installation Instructions

NCV3, VS30 4x4 Falcon 2.1 Rear Shock Installation Instructions

Sprinter AWD and 4x4 Front Bump Buddies installation instructions

Video: Van Compass Stage 5 System, 2" Lift - Sprinter 4x4 (2015–2018 2500 Only) - HEAVY TUNE ( 7031-H)
