Stage 6.3 System - Sprinter 2500 AWD, 2023+ 2 inch lift - Falcon 3.3 - (light/mid - mid/heavy tune) - Van Compass
SKU:
2022323582
The Van Compass Stage 6.3 Suspension System is a complete 2" lift and suspension upgrade for 2023+ Mercedes Sprinter 2500 AWD vans, combining increased ground clearance with improved ride quality, handling, and off-road capability. Designed for adventure vans, camper conversions, and fully equipped Sprinters, the system combines a Striker 2" Lift Kit, VC-tuned Falcon 3.3 Fast Adjust Monotube Shocks, a rear mini leaf spring pack, and progressive Bump Buddy jounce bumpers. The Falcon 3.3 shocks feature 10 external firmness settings, allowing the suspension to be adjusted without tools for everything from comfortable highway driving to rough trails and washboard roads. The 2" lift improves clearance and allows for larger tires while maintaining proper suspension geometry, while the rear mini leaf spring pack increases spring rate, restores rear ride height, and improves load support.
Key Features

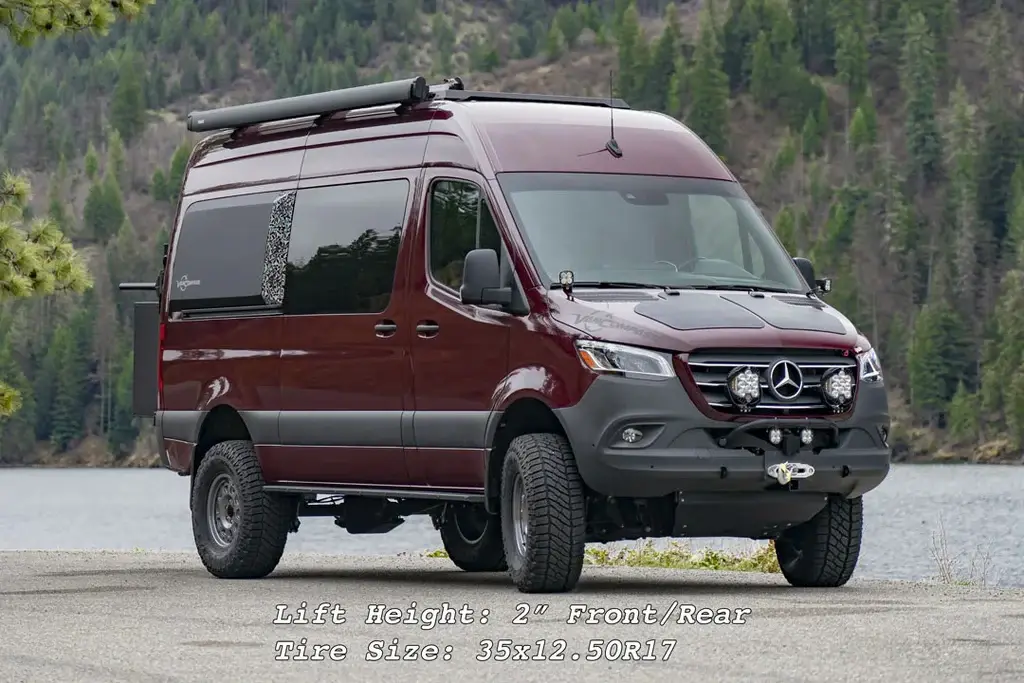

- 2" suspension lift for increased ground clearance and larger tire fitment

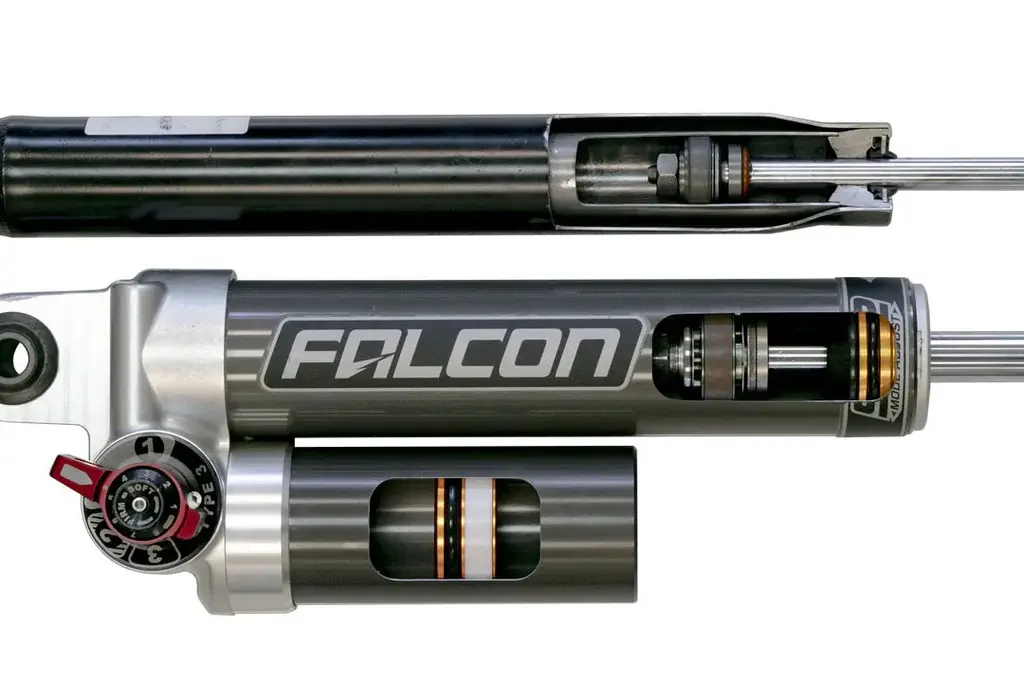

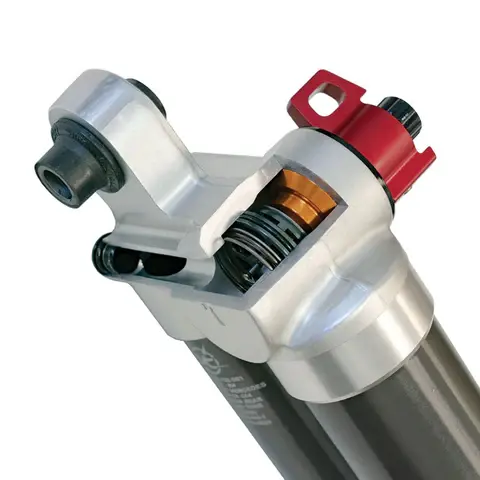

- Falcon 3.3 Fast Adjust Monotube Shocks with 10-position external adjustment
- Rear Mini Leaf Spring Pack increases spring rate and improves rear load support
- Progressive Bump Buddy jounce bumpers improve suspension progression and bottom-out resistance
- Improved stability, cornering control, and reduced sway
- Enhanced ride quality and control on rough pavement and off-road terrain
- Maintains proper suspension geometry and increases suspension travel

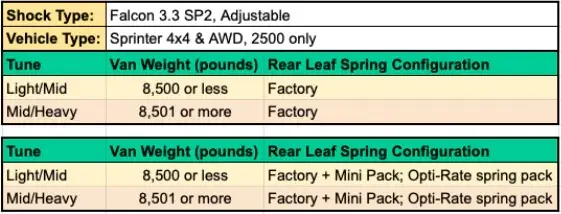

- Light/Mid Tune: optimized for vans weighing approximately 8,000–9,000 lb
- Mid/Heavy Tune: optimized for heavier vans weighing approximately 9,000–10,000 lb
- Made in the USA

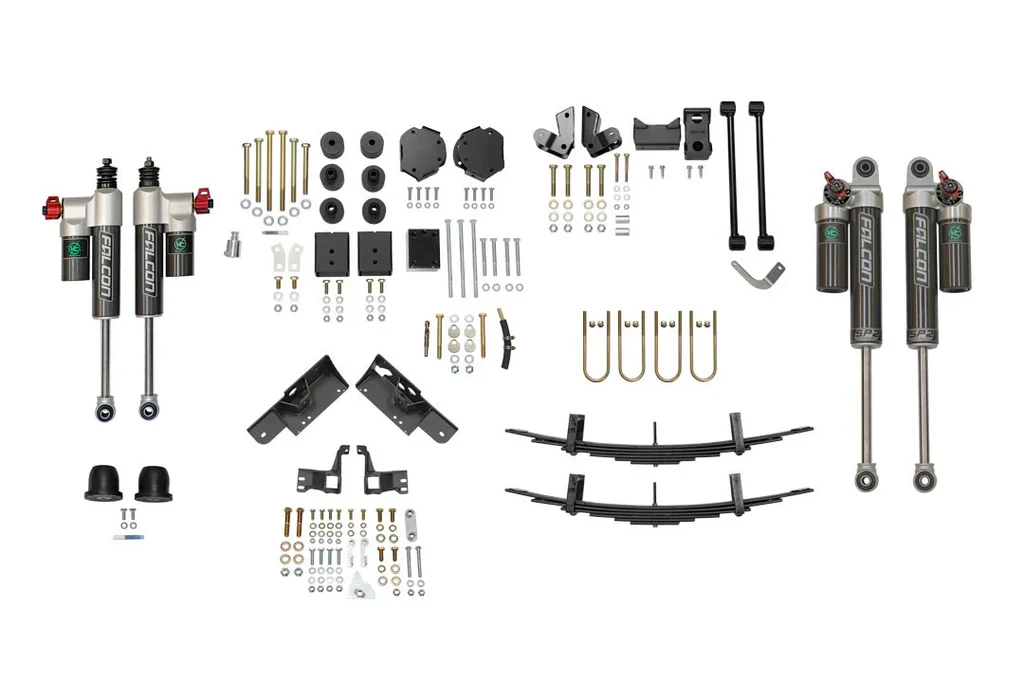

Includes & Fitment
- Striker 2" front and rear lift kit
- Falcon 3.3 Fast Adjust front shocks with mounting brackets
- Falcon 3.3 Fast Adjust rear shocks with SP2 positioning
- Front progressive Bump Buddy jounce bumpers
- Rear mini leaf spring pack
- Dust boots for all four shocks
- Complete mounting hardware and installation instructions
- Vehicle: Mercedes-Benz Sprinter 2500
- Years: 2023–Present
- Drivetrain: AWD
Compatibility & Installation:
Recommended wheels are 17" x 8.5" with +45 mm offset. Wheels with 6.5" backspacing or +52 mm offset on an 8" wheel require a minimum 14 mm spacer to prevent contact with the rear auxiliary shocks at full steering lock; examples include Method 701 and Black Rhino Warlord. Vans equipped with the HD Rear A/C Package may require minor repositioning of refrigerant lines during front shock installation. Not compatible with Sumo Spring Rebel kits SSR-327-47-2 and SSR-327-40-2 due to interference with the shock body.
2023+ VS30 AWD Striker 2" Front Kit Installation Instructions
2019+ VS30 4x4 and AWD Striker 2" Rear Kit Installation Instructions
2015+ VS30 4x4 Falcon Front Shock Installation Instructions
NCV3, VS30 Falcon 3.3 Rear Shock Installation Instructions
Sprinter AWD and 4x4 Front Bump Buddies installation instructions
Falcon 3.3 Shock Settings Guide
Video: Van Compass Mercedes Sprinter AWD (2023+ 2500) Stage 6.3 System 2" Lift
Video: How to adjust your Van Compass Falcon Shocks
------------------------------------------------------------------
