Stage 5 System - Sprinter 2500 AWD, 2023+ 2" lift - Falcon 2.1 Shocks, mid - Heavy Tune - Van Compass

⚠️ SPECIAL ORDER Manufacturing times may vary. Please contact us for more information. NON-EXCHANGEABLE / NON-REFUNDABLE

Take your 2023+ Mercedes Sprinter 2500 AWD (SRW) to the next level with the Van Compass STAGE 5 System, a complete 2" suspension lift designed to improve ground clearance, handling, ride quality, and off-road capability. Available in Mid and Heavy Tune configurations, this system combines the Striker 2" Lift Kit, VC-tuned Falcon 2.1 Monotube Shocks, rear Mini Leaf Spring Pack, and progressive Bump Buddy jounce bumpers. The result is a more capable and stable Sprinter with improved approach, break-over, and departure angles, additional tire clearance, and controlled performance both on and off the pavement.

The Striker 2" Lift Kit increases ride height while maintaining proper suspension geometry and alignment. VC-tuned Falcon 2.1 shocks provide improved damping, reducing body roll, sway, and harsh impacts while maintaining a comfortable and controlled ride. The rear Mini Leaf Spring Pack increases spring rate and restores rear ride height on loaded vans, helping control sag while improving suspension up-travel and load support. Integrated glide pads and U-bolts provide a secure, quiet installation while retaining proper wheel positioning.

Key Features

• 2" suspension lift for increased ground clearance and larger tire fitment
• Striker 2" Front & Rear Lift Kit
• VC-tuned Falcon 2.1 Monotube Shocks matched to Mid or Heavy applications
• Rear Mini Leaf Spring Pack for increased spring rate and improved load support
• Progressive Front Bump Buddy jounce bumpers
• Improved approach, break-over, and departure angles
• Reduced body roll, sway, and harsh bump impacts
• Improved cornering stability and highway control
• Better suspension performance on rough terrain and under heavy loads
• Maintains proper factory suspension geometry and alignment
• High-quality powder-coated components
• Made in the USA

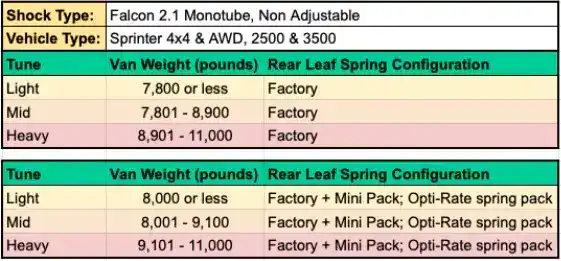

Tune Options

• Mid Tune (7221-M) – Designed for adventure vans, camper conversions, and moderately to heavily equipped Sprinter AWD builds requiring a balance of ride comfort, handling, and load support.
• Heavy Tune (7221-H) – Optimized for heavily built and fully loaded vans, including overland rigs and camper conversions carrying approximately 9,000–10,000+ lb, with increased damping and support for demanding loads.

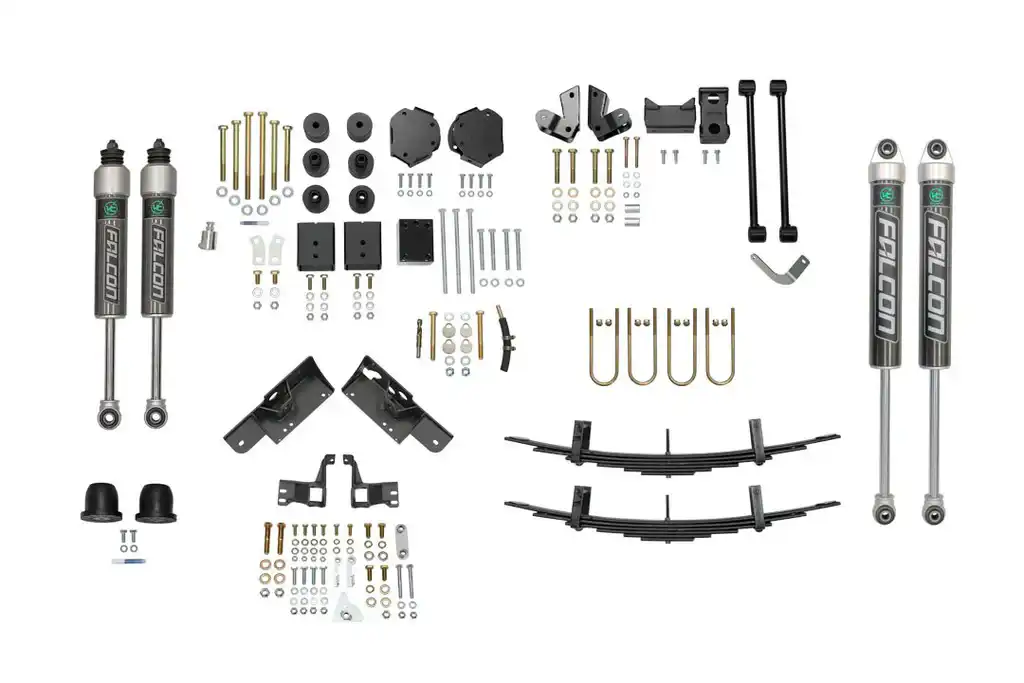

Includes

• Striker 2" Front & Rear Lift Kit
• Falcon 2.1 Monotube Front Shocks with Mounting Brackets
• Falcon 2.1 Monotube Rear Shocks with SP2 Adjustability
• Front Bump Buddy Progressive Jounce Bumpers
• Rear Mini Leaf Spring Pack
• Dust boots for all four shocks
• U-bolts and required installation hardware
• Detailed installation instructions

Fitment Notes

• 2023+ Mercedes Sprinter 2500 AWD (SRW)
• Recommended wheel size: 17" x 8.5", +45 mm offset
• Wheels with 6.5" backspacing or +52 mm offset on an 8" wheel require a minimum 14 mm wheel spacer to prevent contact with the auxiliary/rear shocks at full steering lock. Examples include Method 701 and Black Rhino Warlord.
• Vans equipped with the HD Rear A/C Package may require careful repositioning and re-securing of refrigerant lines during front shock installation.
• Not compatible with Sumo Spring Rebel kits SSR-327-47-2 and SSR-327-40-2 due to interference with the rear shock bodies.

2023+ VS30 AWD Striker 2" Front Kit Installation Instructions

2019+ VS30 4x4 Striker 2" Rear Kit Installation Instructions

2015+ Sprinter 4x4 Falcon Front Shock Installation Instructions

NCV3, VS30 4x4 Falcon 2.1 Rear Shock Installation Instructions

Sprinter AWD and 4x4 Front Bump Buddies installation instructions

Video: Van Compass Mercedes Sprinter AWD (2023+ 2500) Stage 5 System 2" Lift

-----------------------------------------------------------------
