STAGE 6.3 DUALLY 2" LIFT SYSTEM - SPRINTER 3500 AWD, 2023+, FALCON 3.3 - (LIGHT/MID - MID/HEAVY TUNE) - Van Compass
11,972.14 $
11,972.14 $
STAGE 6.3 DUALLY 2" LIFT SYSTEM - SPRINTER 3500 4X4, 2015-2018 - 2 INCH LIFT - FALCON 3.3 - (LIGHT/MID - MID/HEAVY TUNE) - OPTI-RATE - Van Compass
11,972.14 $
11,972.14 $STAGE 6.3 DUALLY 2" LIFT SYSTEM - SPRINTER 3500 4X4, 2019-2022 - 2 INCH LIFT - FALCON 3.3, MID/HEAVY TUNE, OPTI-RATE - Van Compass
Special order: Item cannot be exchanged or refunded.
Please allow 2-4 weeks to process and ship order.

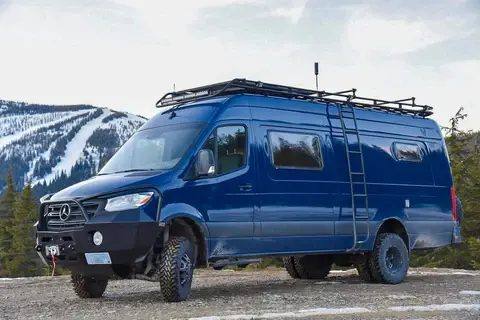

Elevate your adventure rig to new heights—literally and figuratively—with the Van Compass STAGE 6.3 DUALLY 2" LIFT SYSTEM - SPRINTER 3500 4X4, 2019-2022 - 2 INCH LIFT - FALCON 3.3, MID/HEAVY TUNE, OPTI-RATE (7205-MH), built specifically for Mercedes Sprinter 3500 4x4 models from 2019–2022. Tuned for heavily loaded vans, this premium system delivers a true 2” suspension lift, robust damping control, and superior ride comfort—perfect for Class B RVs, full conversion builds, and serious overlanders.
This high-performance system combines the Striker 2” Lift Kit with upgraded dampers and a full leaf spring replacement to deliver increased ground clearance, sharper approach angles, and better overall off-road geometry. Whether you're crawling up mountain trails or cruising the highway with a fully built-out van, the Stage 6.3 system ensures your Sprinter performs safely and smoothly under all conditions.

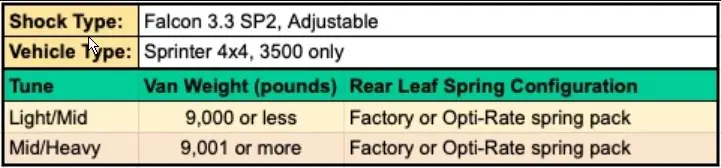

Mid/Heavy tune tailored for vans running near or over GVWR
VC-engineered damping with 10-position Fast Adjust knobs
Instantly switch from soft comfort to firm control
SP2 internal adjusters for secondary ride tuning
Dramatically improved handling and sway control
Supports additional weight without bottoming out
Restores up to 1.25” of rear lift to correct sag
Maintains rear axle geometry and wheel alignment
Glide pads reduce friction and noise for a quiet, factory-like ride
U-bolts included for hassle-free installation
Adds a real 2” of lift, improving breakover and departure angles
Allows for larger tire fitment
Maintains factory alignment specs and suspension geometry
Enhances off-road performance without compromising on-road stability
Replace harsh factory jounce bumpers
Provide smoother spring progression and sway control
Increase bottom-out resistance for rough terrain
Eliminate clunking and harsh rebound feel

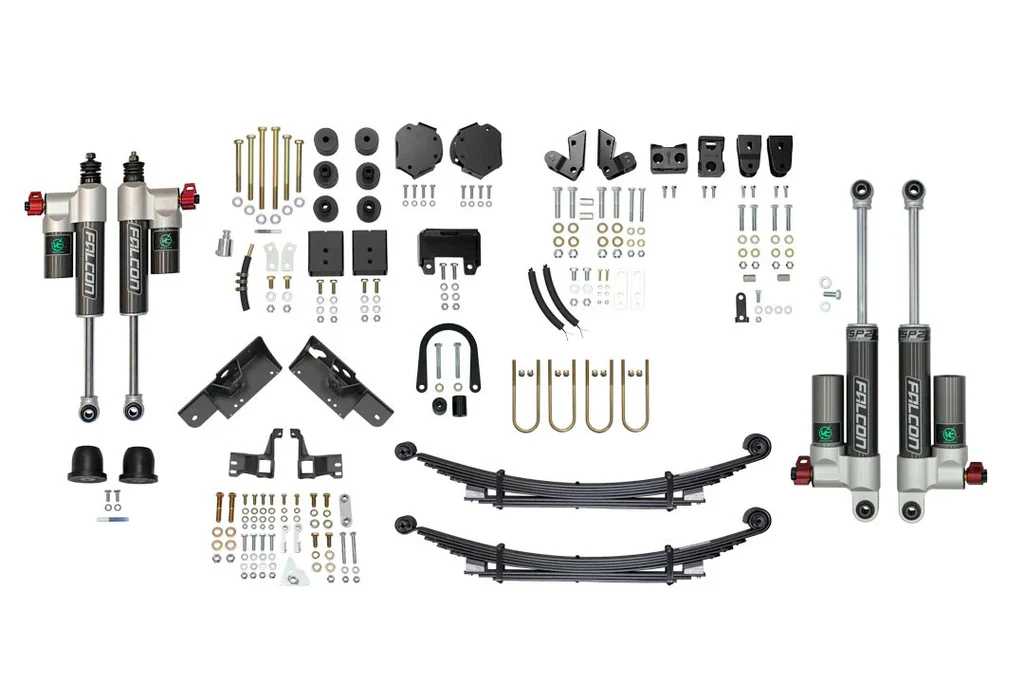

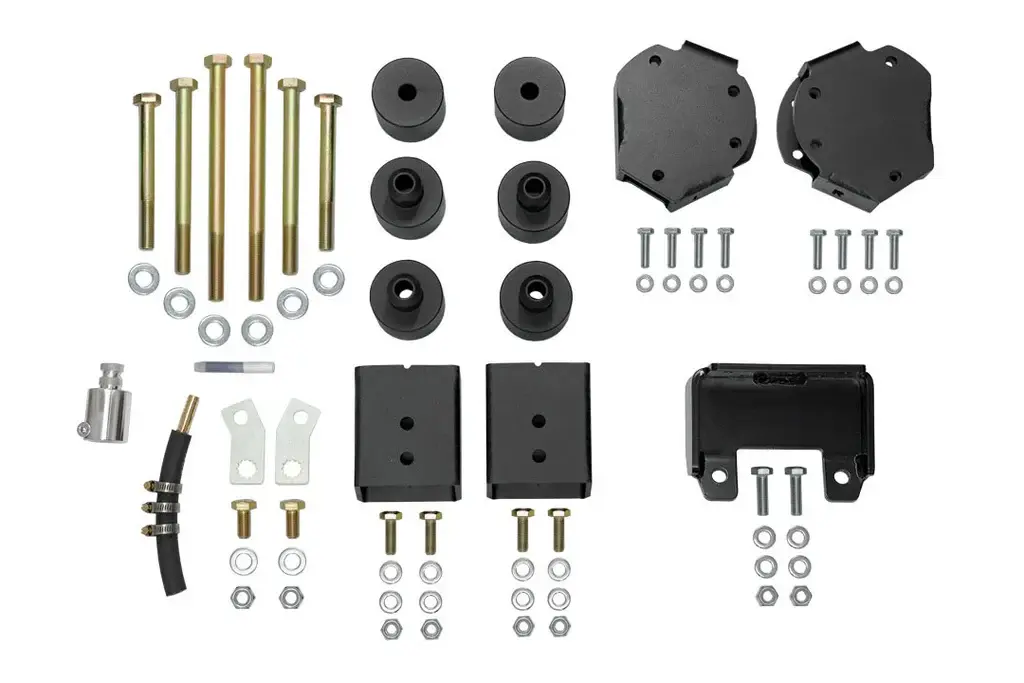

Striker 3500 4x4 2" Lift Components (Front and Rear)
Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets
Falcon 3.3 Fast Adjust Rear Shocks with SP2 (Mid/Heavy Tune)
Front Bump Buddies (progressive foam jounce bumpers)

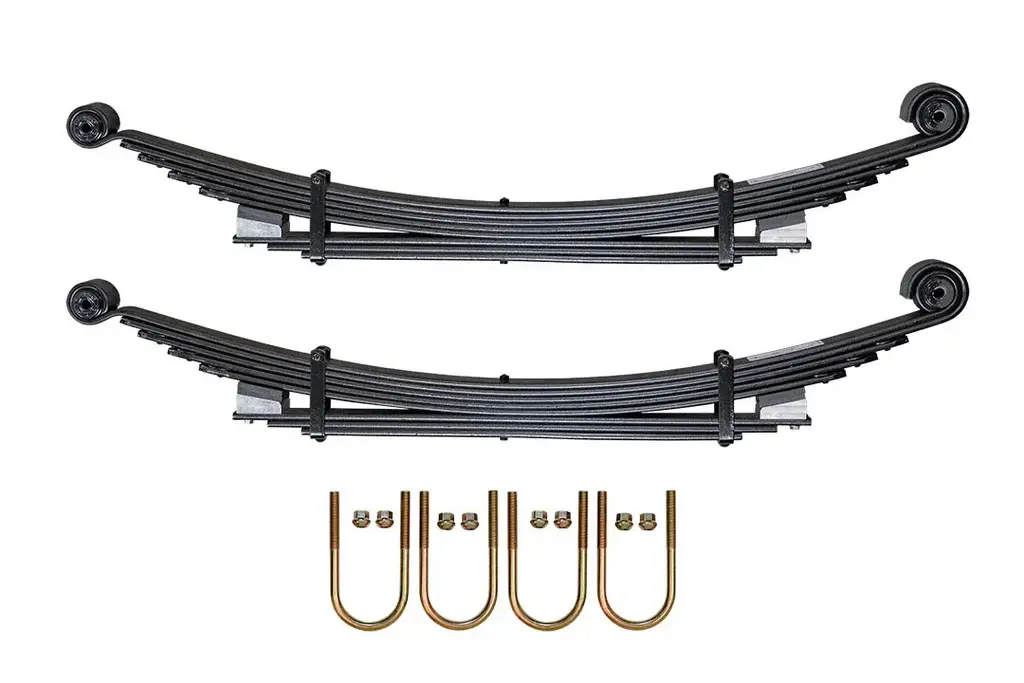

Opti-Rate Full Replacement Rear Leaf Spring System
Dust boots for all 4 shocks

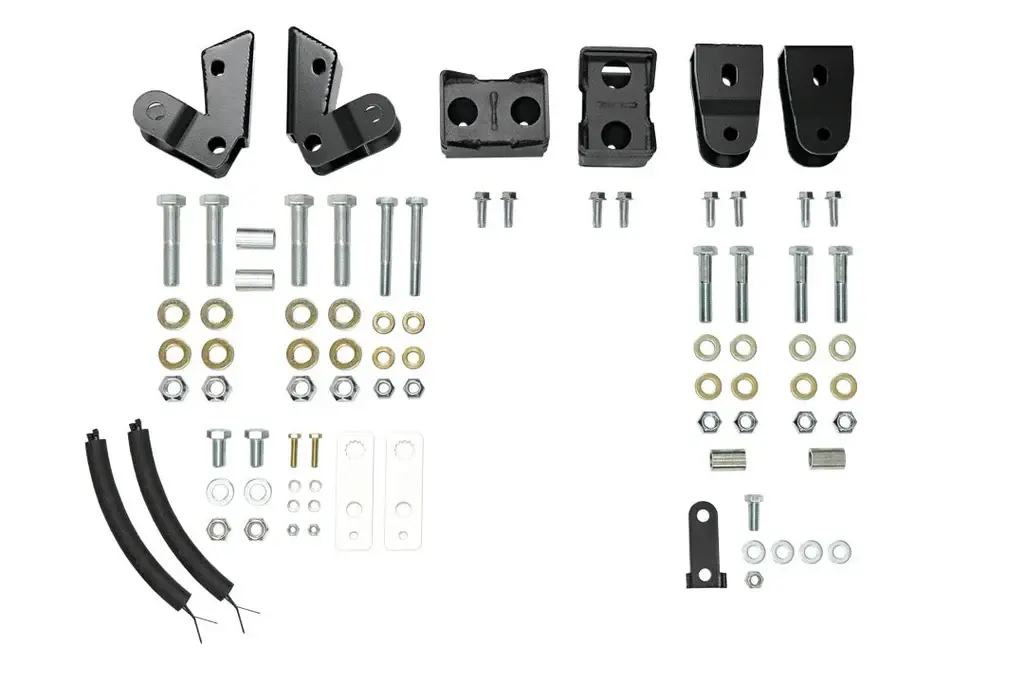

Complete hardware kit and detailed installation instructions
Notes
HD Rear A/C Package: Extra care required when mounting front shocks. Refrigerant lines may need gentle adjustment.
Incompatible with Sumo Spring Rebel kits (SSR-327-47-2, SSR-327-40-2) due to shock clearance conflicts.
Designed for heavy builds and long-haul adventures
Aggressive 2” lift for increased ground clearance
Better handling under load and in crosswinds
Reduced body roll, sway, and bottoming out
Bolt-on installation – no cutting, welding, or special tools required
Proudly made in the USA by Van Compass
2019 VS30 Striker 4x4 Front Lift Kit Installation Instructions
2007+ Sprinter 3500 4WD Rear Lift Kit Installation Instructions
2019+ VS30 4x4 Falcon Front Shock Installation Instructions
Falcon 3.3 DRW Rear Shock Installation Instructions
Sprinter AWD and 4x4 Front Bump Buddies installation instructions
Sprinter 3500 4WD Rear Spring Installation Instructions
Falcon 3.3 Shock Settings Guide
Video: Van Compass Mercedes Sprinter 4X4 (2019-2022, 3500) Stage 6.3 Dually 2" Lift System
