STAGE 6.3 DUALLY 2" LIFT SYSTEM - SPRINTER 3500 AWD, 2023+, FALCON 3.3 - (LIGHT/MID - MID/HEAVY TUNE) - Van Compass

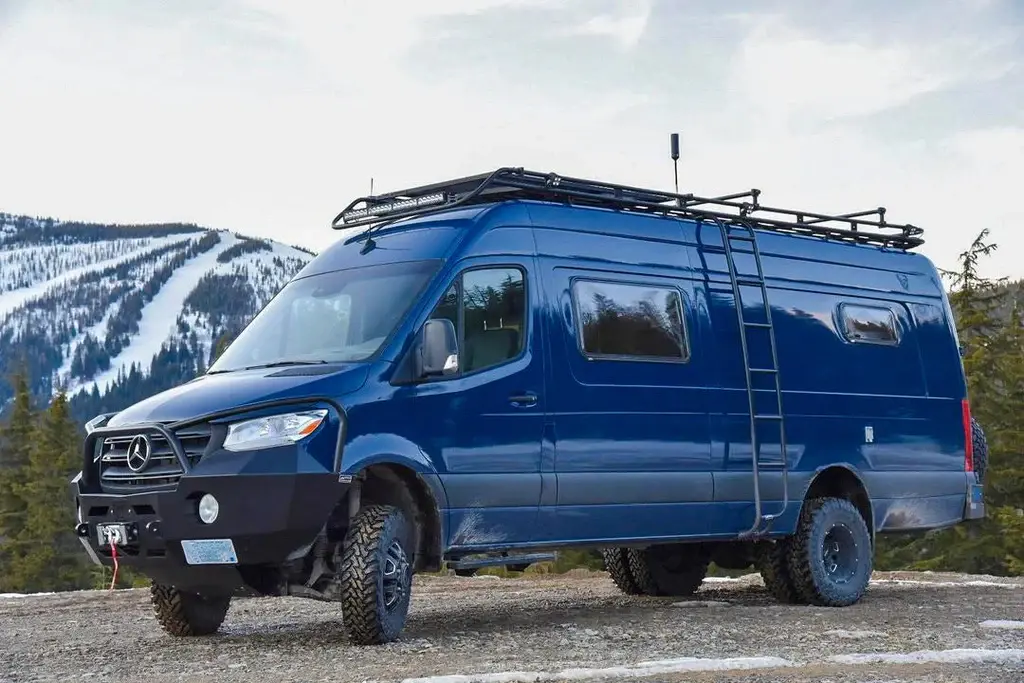

Transform your Mercedes Sprinter 3500 AWD Dually (2023+) into the ultimate adventure-ready machine with the Van Compass STAGE 6.3 DUALLY 2" LIFT SYSTEM - SPRINTER 3500 AWD, 2023+, FALCON 3.3, LIGHT/MID TUNE (7235-LM). Engineered for serious overland, passenger, and conversion builds, this kit delivers true ground clearance, enhanced ride quality, and full suspension adjustability—without compromising factory geometry or comfort.

At the center of the Stage 6.3 Dually system is the Striker 2" Lift Kit, which maintains proper suspension geometry while raising the van’s ride height. This precision-engineered lift significantly improves approach, break-over, and departure angles, enabling the fitment of larger tires and giving your van a tougher, more capable stance.

The system features Van Compass-tuned Falcon 3.3 Fast Adjust Shocks at all four corners. Each shock offers 10 levels of compression adjustment via a large external knob—allowing you to quickly switch between a soft, compliant ride on rough terrain and firm, stable control on the highway. The wide tuning range makes this kit highly adaptable to variable loads and conditions.

A major upgrade comes from the Opti-Rate full replacement rear leaf spring pack, designed specifically for dual rear wheel Sprinters. This spring system restores rear ride height, corrects sag, and improves both payload handling and articulation, while keeping the factory wheel alignment and suspension characteristics intact. It’s ideal for fully built-out vans carrying significant gear or passenger loads.

Rounding out the system are progressive foam Bump Buddy bump stops, which replace the factory rubber units. These improve bottom-out resistance, reduce sway, and smooth out the spring curve—without clunks or harshness.

Note: Vans equipped with the HD Rear AC Package may require slight adjustment of refrigerant lines when installing front shocks.

Note: Not compatible with Sumo Spring Rebel kits SSR-327-47-2 or SSR-327-40-2 due to bracket interference with the shock body.

• True 2" lift for 2023+ Sprinter 3500 AWD Dual Rear Wheel (DRW)

• Maintains factory suspension geometry, alignment, and ride comfort

• VC-tuned Falcon 3.3 shocks with 10-position adjustability

• Opti-Rate rear leaf pack tuned for real-world vehicle weight

• Increased ground clearance and tire fitment

• Enhanced articulation, bottom-out resistance, and stability

• Reduces wind sway and improves high-load handling

• Made in the USA from premium, powder-coated components

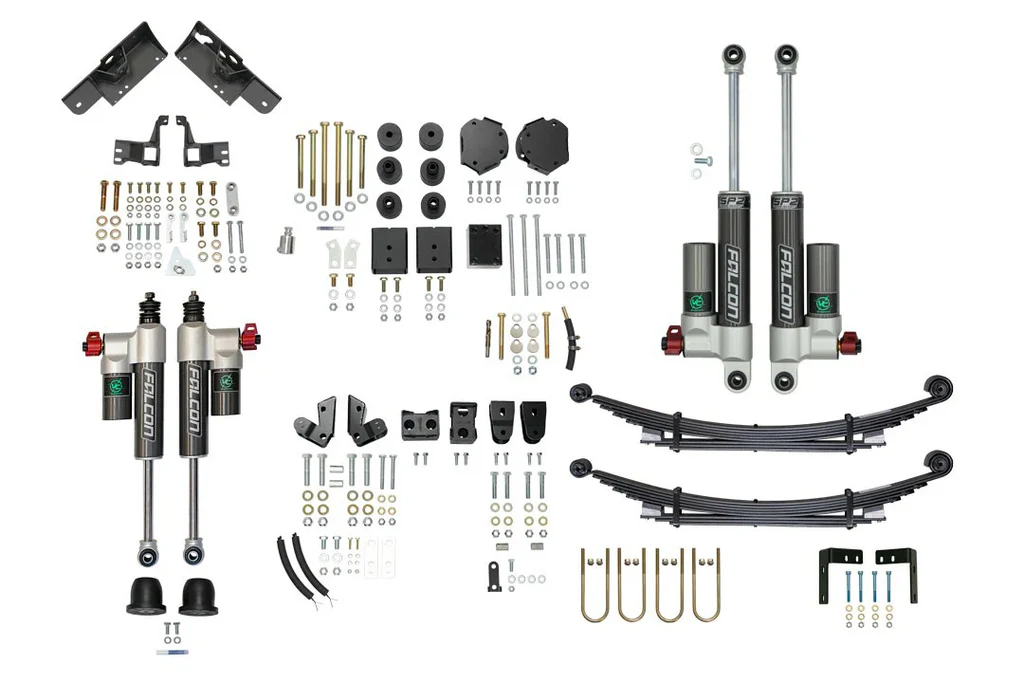

Van Compass STAGE 6.3 DUALLY 2" LIFT SYSTEM - SPRINTER 3500 AWD, 2023+, FALCON 3.3, LIGHT/MID TUNE (7235-LM) Includes:

• Striker 3500 4x4 2" Front and Rear Lift Kit

• Falcon 3.3 Fast Adjust Front Shocks w/ Mounting Brackets

• Front Bump Buddies

• Falcon 3.3 Fast Adjust Rear Shocks w/ SP2

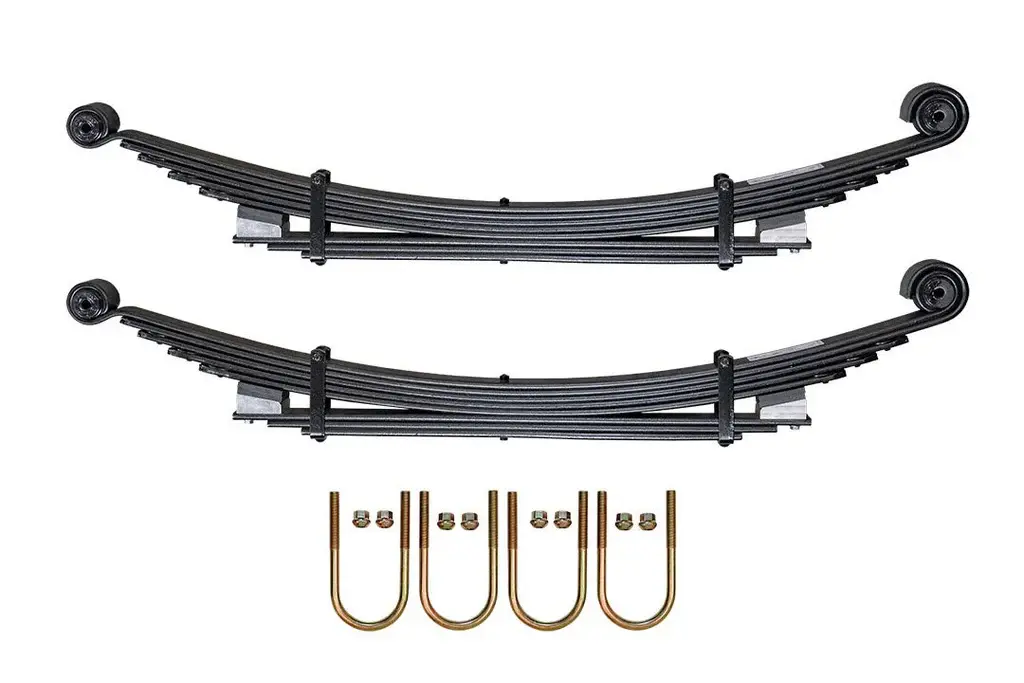

• Opti-Rate Full Replacement Rear Leaf Spring Pack

• Dust boots for all 4 shocks

• All required hardware and installation instructions

2023+ VS30 Striker AWD Front Lift Kit Installation Instructions

2019+ VS30 4x4 Falcon Front Shock Installation Instructions

Sprinter AWD and 4x4 Front Bump Buddies installation instructions

Falcon 3.3 DRW Rear Shock Installation Instructions

Falcon 3.3 Shock Settings Guide

Sprinter 3500 4WD Rear Spring Installation Instructions

Video: Van Compass Mercedes Sprinter AWD (2023+ 3500) Stage 6.3 Dually 2" Lift System

Video: Van Compass 6.3 Kit

Video: opti-Rate Leaf Spring System

How to adjust your Van Compass Falcon Shocks

Engineered for heavy-duty conversion builds, commercial passenger vans, and fully outfitted overland rigs, the Van Compass STAGE 6.3 DUALLY 2" LIFT SYSTEM - SPRINTER 3500 AWD, 2023+, FALCON 3.3, MID/HEAVY TUNE (7235-MH) provides unmatched ride control, clearance, and suspension performance for your 2023+ Mercedes Sprinter 3500 AWD Dually.

This advanced system offers a true 2" lift while preserving factory suspension geometry, ensuring you gain the benefits of improved off-road capability and load handling without sacrificing ride quality or drivability.

At the core of the Stage 6.3 Dually system is the Striker 2" Lift Kit, engineered to precisely maintain stock suspension alignment and handling. The added height improves approach, break-over, and departure angles, while making space for larger tires—essential for rugged terrain, gravel roads, and remote overland travel.

Equipped with Van Compass-tuned Falcon 3.3 Fast Adjust Shocks, this system is optimized for mid to heavy builds—perfect for heavier vans loaded with gear, passengers, or camper conversions. Each shock offers 10-position on-vehicle adjustability via the oversized Fast Adjust knob. Easily switch between soft and plush off-road settings and firm highway damping, depending on terrain and load.

The included Opti-Rate rear leaf spring pack is custom-matched to higher axle loads typical of dual rear wheel vans. It restores lost ride height, counters rear-end sag, and enhances stability under weight. With a design that preserves factory geometry, it also improves suspension travel and overall handling for loaded vehicles. U-bolts and glide pads are included for quiet, hassle-free installation.

To round out the ride performance, Van Compass Bump Buddy jounce bumpers replace the OEM rubber stops with progressive foam units. These offer improved bump compliance, better spring rate progression, and added bottom-out protection—without harsh impacts or clunking.

Note: Vans with HD Rear AC may require careful front shock installation—refrigerant lines may need slight adjustment.

Note: Not compatible with Sumo Spring Rebel kits (SSR-327-47-2, SSR-327-40-2) due to bracket interference with the shock body.

• 2" true lift for Mercedes Sprinter 3500 AWD Dually (2023+)

• Mid/Heavy-tuned Falcon 3.3 Adjustable Shocks (10 firmness settings)

• Increased ground clearance and off-road capability

• Improved approach, break-over, and departure angles

• Opti-Rate full rear leaf spring pack for heavier vehicles

• Enhanced ride quality, cornering stability, and bottom-out resistance

• Factory alignment and suspension geometry preserved

• Ideal for heavy adventure vans, camper builds, or commercial use

• Durable, powder-coated components made in the USA

Van Compass STAGE 6.3 DUALLY 2" LIFT SYSTEM - SPRINTER 3500 AWD, 2023+, FALCON 3.3, MID/HEAVY TUNE (7235-MH) Includes:

• Striker 2" Front and Rear Lift Kit (3500 4x4 Specific)

• Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets

• Front Bump Buddy Progressive Jounce Bumpers

• Falcon 3.3 Fast Adjust Rear Shocks with SP2

• Opti-Rate Full Replacement Rear Leaf Spring Pack

• Dust boots for all four shocks

• Complete hardware kit and installation instructions

2023+ VS30 Striker AWD Front Lift Kit Installation Instructions

2019+ VS30 4x4 Falcon Front Shock Installation Instructions

Sprinter AWD and 4x4 Front Bump Buddies installation instructions

Falcon 3.3 DRW Rear Shock Installation Instructions

Falcon 3.3 Shock Settings Guide

Sprinter 3500 4WD Rear Spring Installation Instructions

Video: Van Compass Mercedes Sprinter AWD (2023+ 3500) Stage 6.3 Dually 2" Lift System

Video: Van Compass 6.3 kit

Video: Van Compass Opti-Rate Leaf spring system

Video: How to adjust your Van Compass Falcon Schocks
