11,972.14 $Stage 6.3 Dually 2" lift system - Sprinter 3500 4x4, 2019-2022 - falcon 3.3, mid/heavy Tune, Opti-Rate - Van Compass
SKU:
2022323582
Designed for 2019–2022 Mercedes-Benz Sprinter 3500 4x4 vans, the Van Compass STAGE 6.3 Dually 2" Lift System is engineered for heavily loaded builds, Class B RVs, and serious overlanding. It combines a true 2" suspension lift, Falcon 3.3 adjustable damping, and an Opti-Rate rear leaf spring system for improved ground clearance, handling, ride comfort, and off-road capability without sacrificing highway stability.
FEATURES
- 2" lift — Improves ground clearance, breakover/departure angles, and allows larger tires.
- Falcon 3.3 Fast Adjust shocks — 10-position adjustment with SP2 secondary tuning for comfort-to-control flexibility.
- Mid/Heavy Tune — Optimized for vans operating near or above GVWR; improves sway control and bottom-out resistance.
- Opti-Rate rear leaf springs — Replaces the factory rear springs, restores up to 1.25" of rear lift, and maintains suspension geometry.
- Progressive front bump stops — Improve spring progression, reduce harsh impacts, and control rebound.
- Glide pads — Reduce spring friction and noise for a quieter, smoother ride.

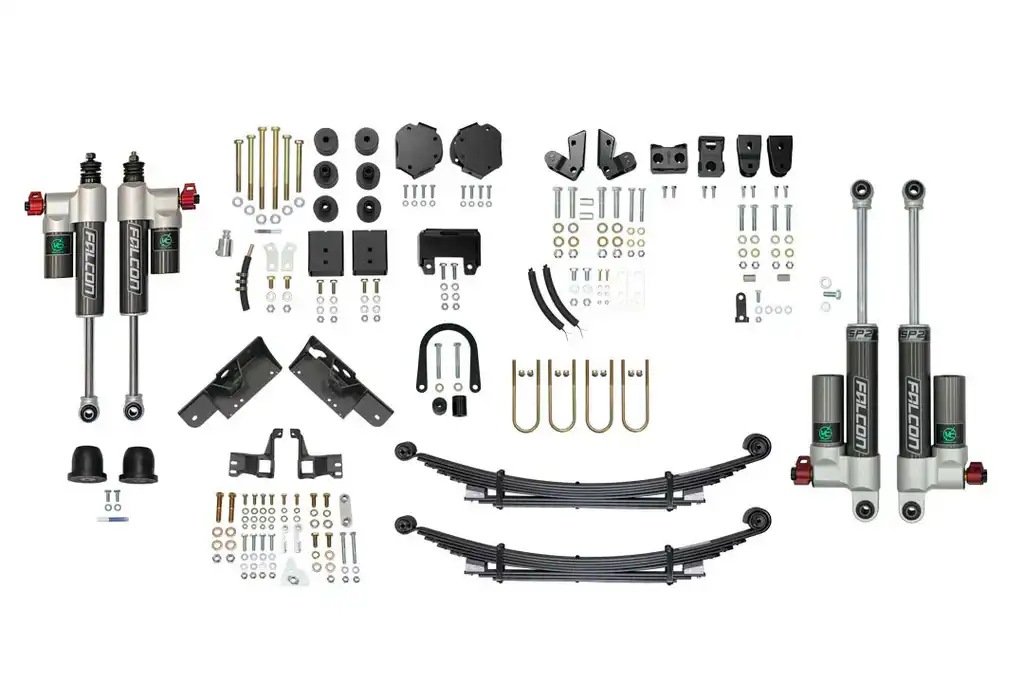

KIT INCLUDES

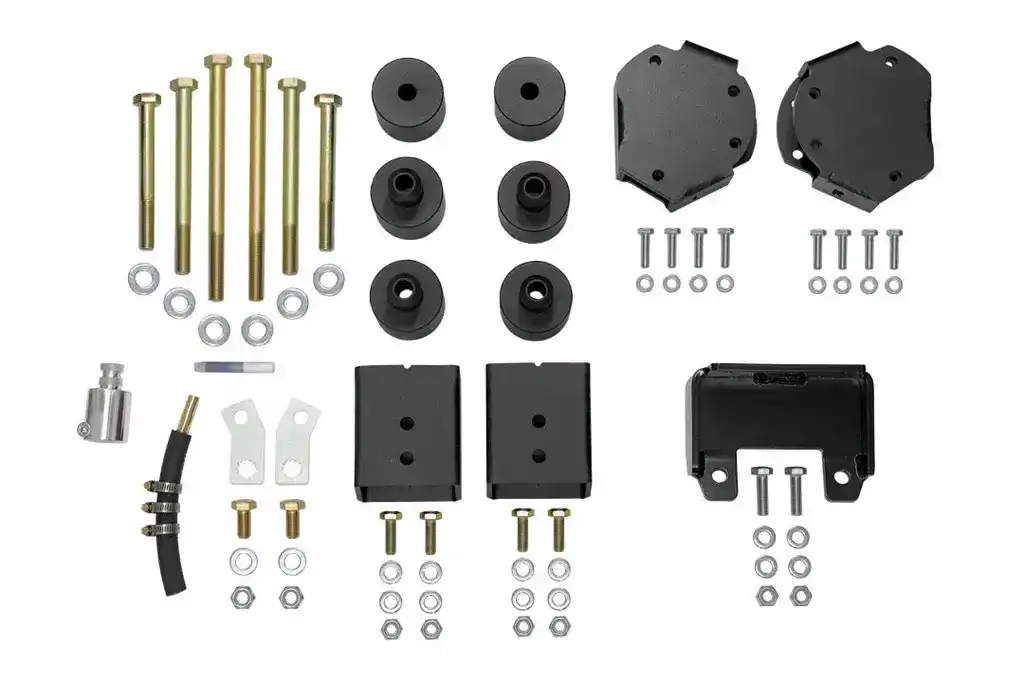

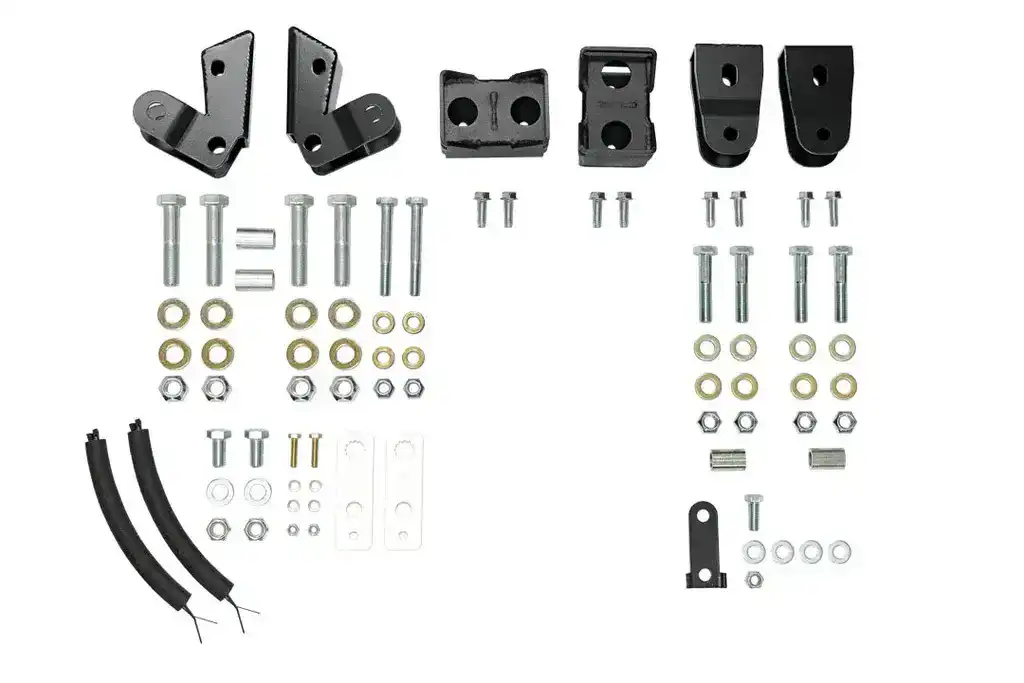

- Striker 3500 4x4 2" lift components, front and rear
- Falcon 3.3 Fast Adjust front & rear shocks with SP2 rear tuning
- Front Bump Buddies

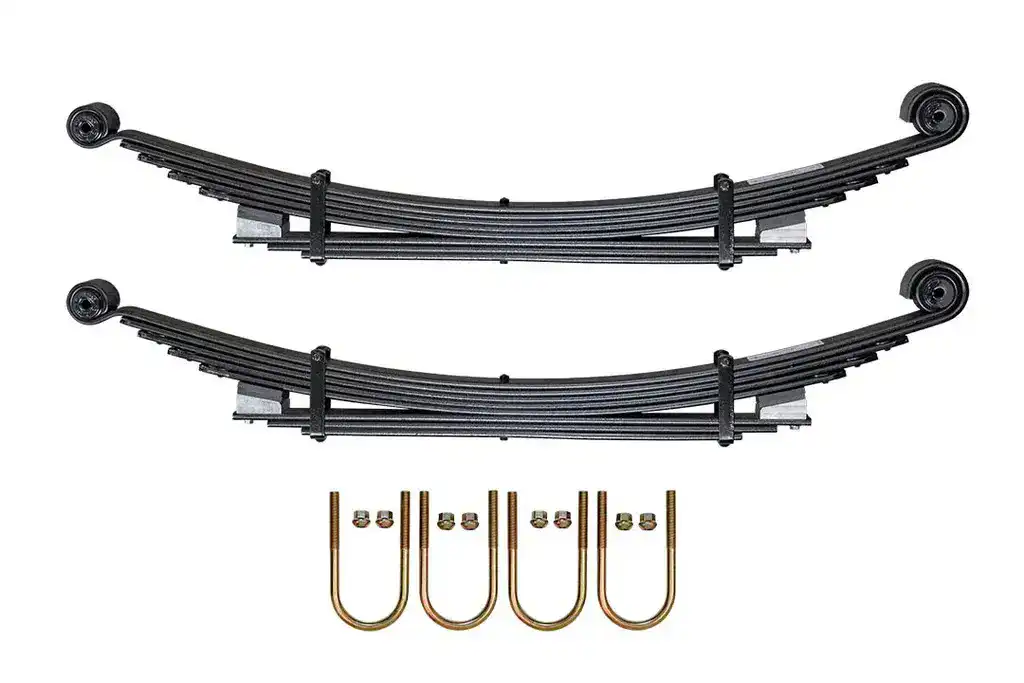

- Opti-Rate full-replacement rear leaf springs
- Shock dust boots, U-bolts, mounting hardware, and installation instructions
Installation:
Bolt-on installation requires no cutting, welding, or special tools. HD Rear A/C Package: Front shock installation may require careful adjustment of refrigerant lines. Not compatible with Sumo Spring Rebel SSR-327-47-2 or SSR-327-40-2 kits due to shock clearance.
2019 VS30 Striker 4x4 Front Lift Kit Installation Instructions
2007+ Sprinter 3500 4WD Rear Lift Kit Installation Instructions
2019+ VS30 4x4 Falcon Front Shock Installation Instructions
Falcon 3.3 DRW Rear Shock Installation Instructions
Sprinter AWD and 4x4 Front Bump Buddies installation instructions
Sprinter 3500 4WD Rear Spring Installation Instructions
Falcon 3.3 Shock Settings Guide
Video: Van Compass Mercedes Sprinter 4X4 (2019-2022, 3500) Stage 6.3 Dually 2" Lift System
