Stage 6.3 System - Sprinter 2500 4x4, 2019-2022 - 2 inch lift - Falcon 3.3 shocks - (light/mid - mid/heavy tune) - Van Compass
SKU:
2022323582
⚠️ SPECIAL ORDER Manufacturing times may vary. Please contact us for more information. NON-EXCHANGEABLE / NON-REFUNDABLE
The Van Compass STAGE 6.3 System is designed for 2019–2022 Mercedes-Benz Sprinter 2500 4x4 vans, providing a true 2" suspension lift, increased ground clearance, improved approach, breakover and departure angles, and enhanced ride control for off-road, overland, and conversion applications. The Striker 2" Lift Kit maintains factory suspension geometry and alignment, while VC-tuned Falcon 3.3 Fast Adjust shocks provide 10-position damping adjustment for improved comfort, stability, and control on trails, rough pavement, highways, and in crosswinds.
FEATURES
- Striker 2" Lift Kit — Provides front and rear lift, improved clearance and larger tire fitment without compromising factory geometry.

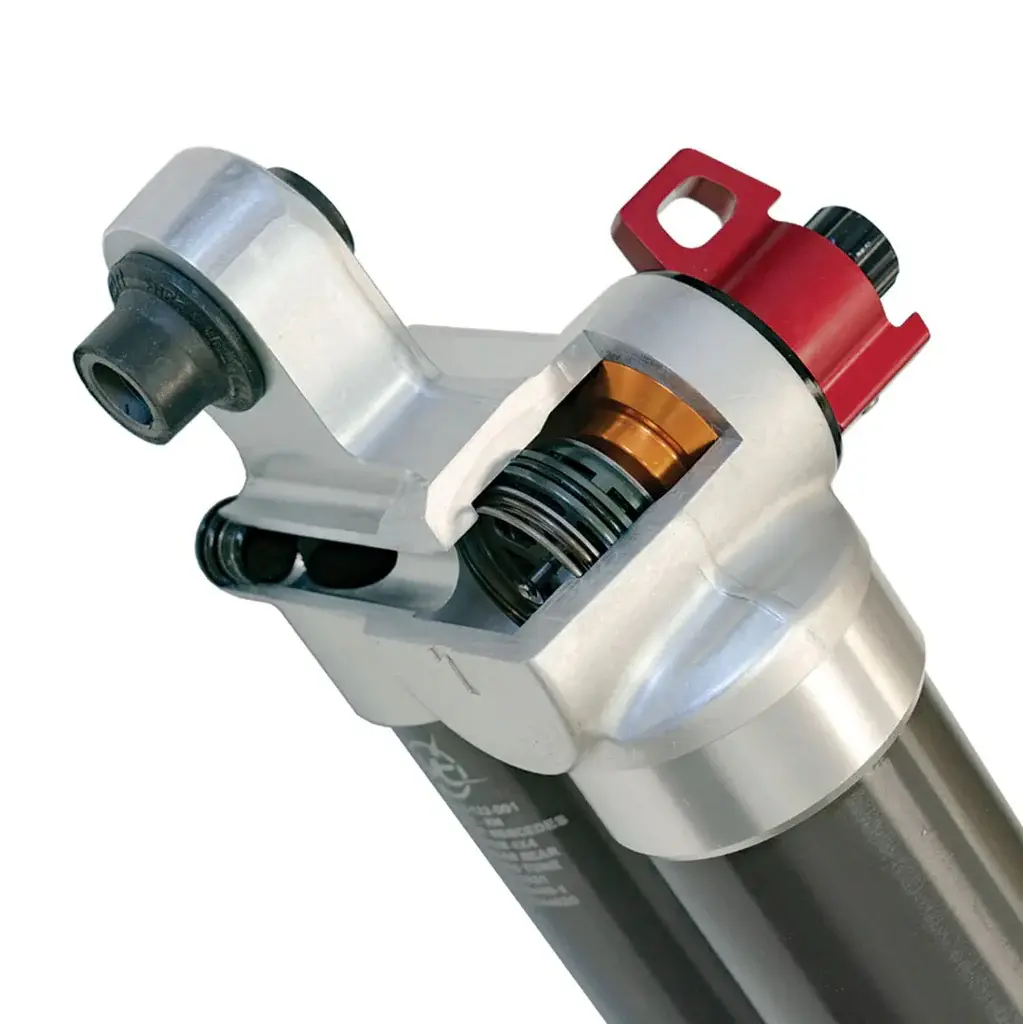

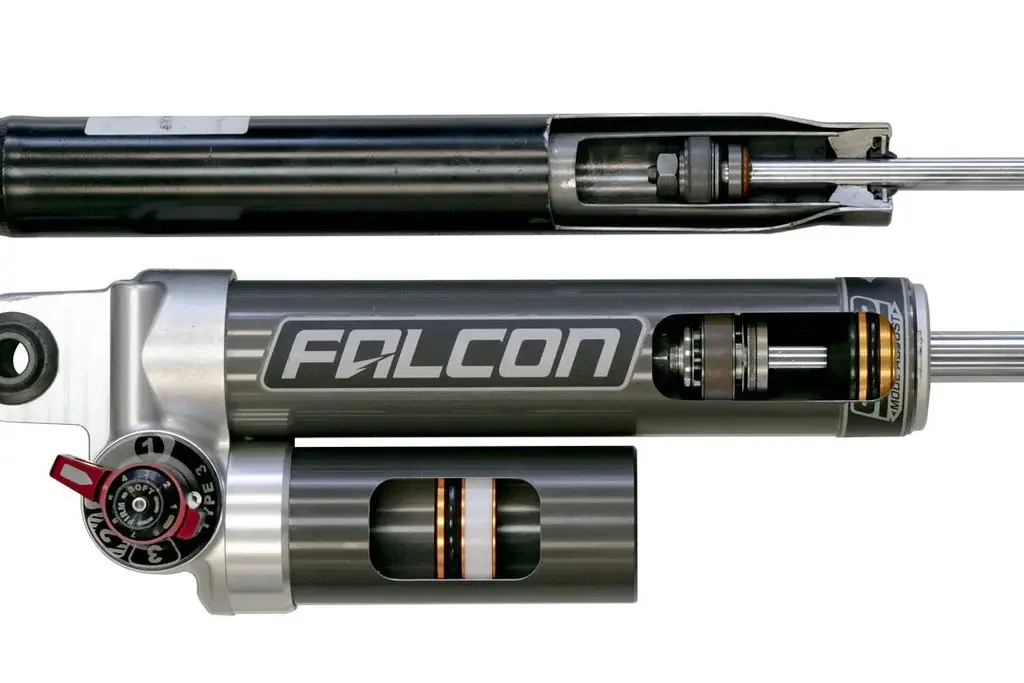

- Falcon 3.3 Fast Adjust Shocks — 10-position external adjustment allows damping to be tuned from compliant off-road comfort to firmer highway control; rear shocks include SP2 adjusters.

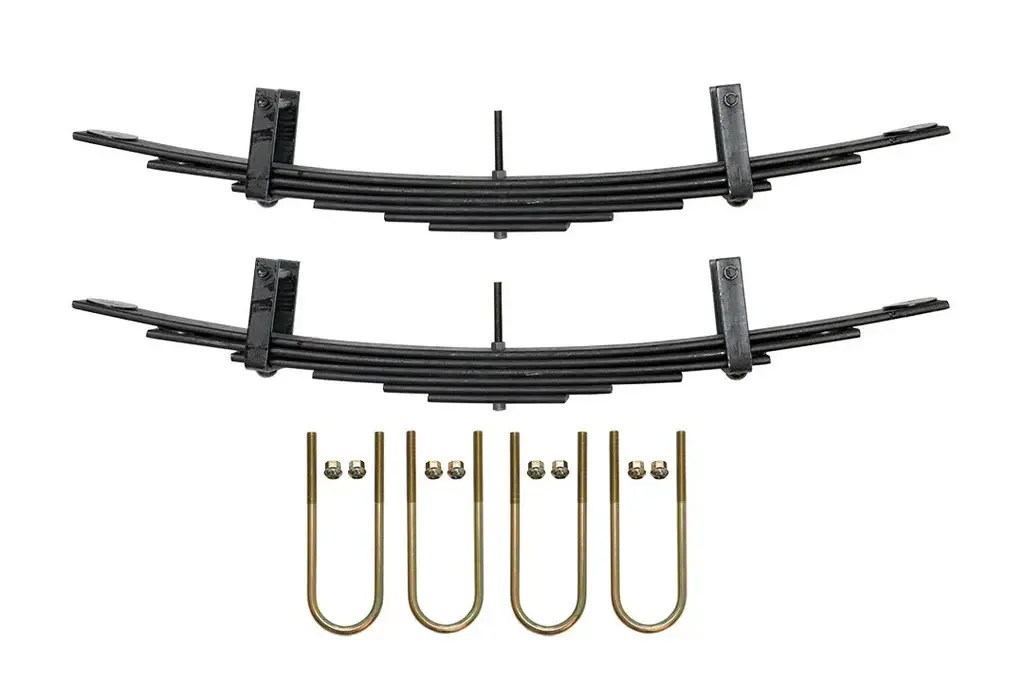

- Rear Mini Leaf Spring Pack — Adds approximately 2" of rear lift, increases spring rate, restores ride height, and reduces sag from heavy loads while preserving factory leaf geometry.
- Bump Buddy progressive jounce bumpers — Improve spring progression, sway control and bottom-out resistance while reducing harsh impacts, noise and clunking.
- Bolt-on design — No cutting, welding, or fabrication required.
TUNING OPTIONS

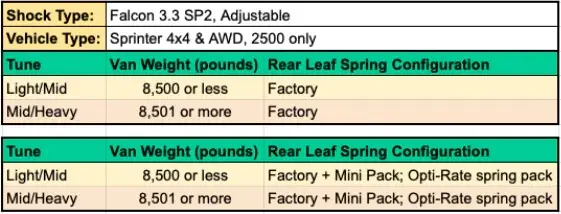

- 7073-LM – Light/Mid Tune: Optimized for light-to-moderately equipped adventure, overland, and conversion vans.
- 7073-MH – Mid/Heavy Tune: Optimized for heavily loaded adventure vans, camper conversions, and overland builds requiring greater damping control and load support.

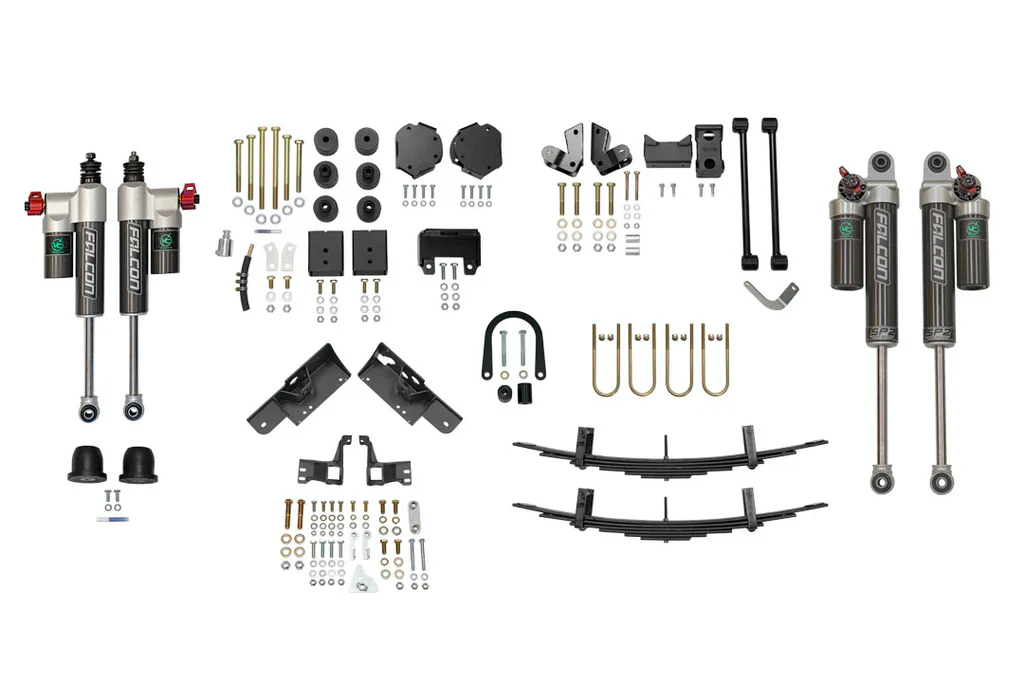

KIT INCLUDES

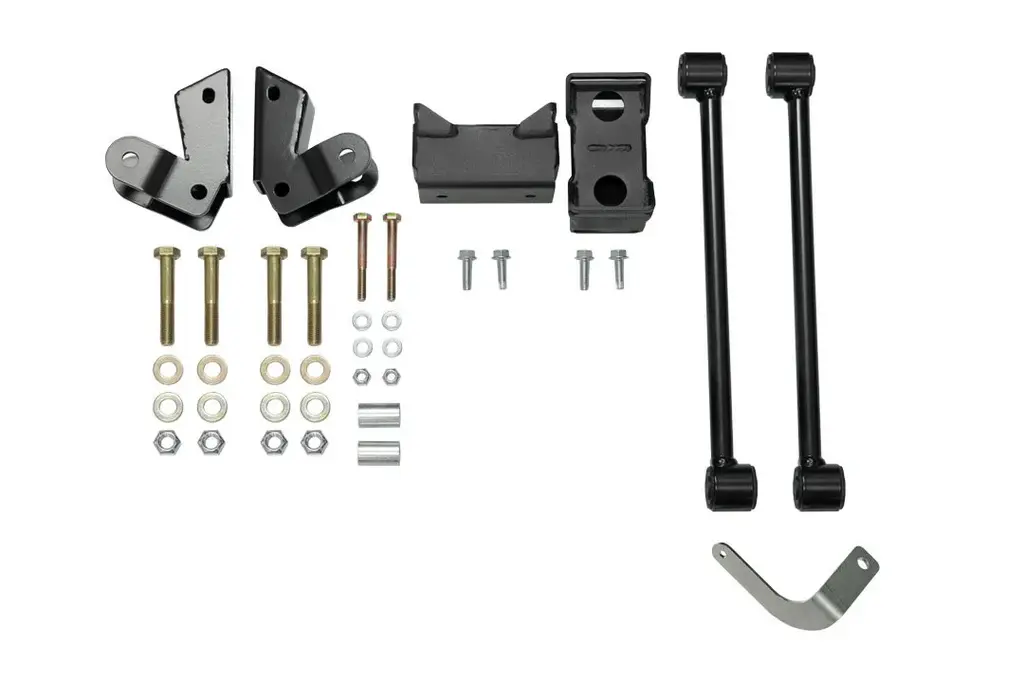

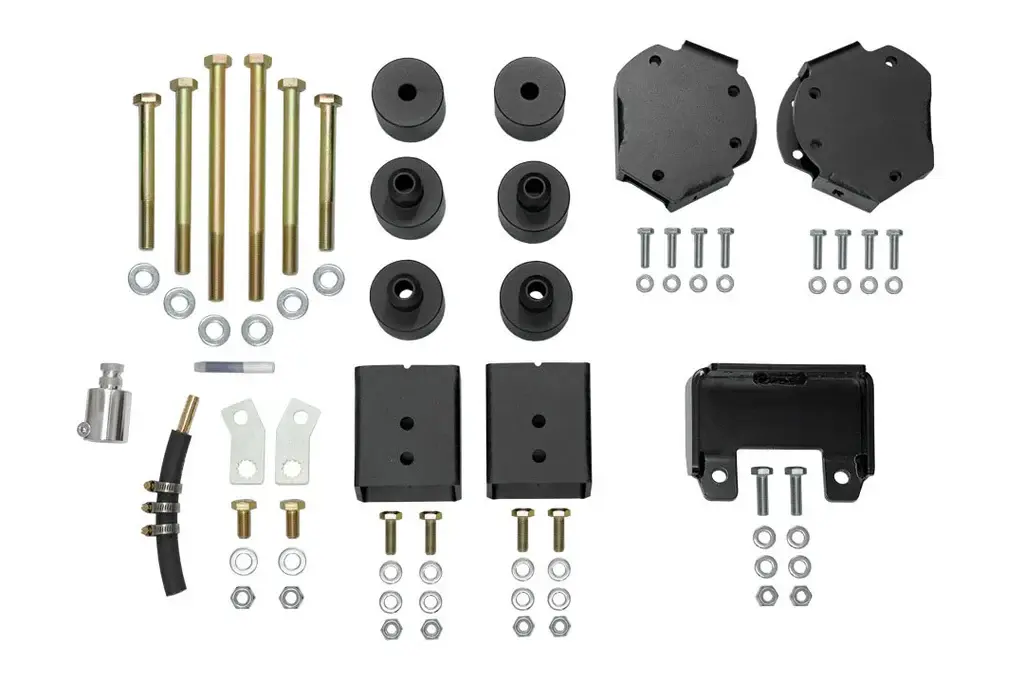

- Striker 2" front & rear lift kit
- Falcon 3.3 Fast Adjust front & rear shocks with mounting brackets and SP2
- Rear Mini Leaf Spring Pack
- Front Bump Buddy progressive jounce bumpers
- Dust boots for all four shocks
- U-bolts, glide pads, required hardware and installation instructions
Installation:
100% bolt-on installation. 2019+ vans with HD rear A/C may require careful routing of refrigerant lines around the shock brackets. Not compatible with Sumo Spring Rebel SSR-327-47-2 or SSR-327-40-2 kits due to interference with the Falcon shocks.
2019+ VS30 4x4 Striker 2" Front Kit Installation Instructions
2019+ VS30 4x4 Striker 2" Rear Kit Installation Instructions
2015+ VS30 4x4 Falcon Front Shock Installation Instructions
NCV3, VS30 Falcon 3.3 Rear Shock Installation Instructions
Sprinter AWD and 4x4 Front Bump Buddies installation instructions
Falcon 3.3 Shock Settings Guide
