Stage 6.3 System - Sprinter 2500 4x4, 2015-2018 - 2" lift - Falcon 3.3 Shocks (light/mid - mid/heavy tune) - Van Compass
SKU:
2022323582
⚠️ SPECIAL ORDER Manufacturing times may vary. Please contact us for more information. NON-EXCHANGEABLE / NON-REFUNDABLE
The Van Compass STAGE 6.3 System is designed for 2015–2018 Mercedes-Benz Sprinter 2500 4x4 vans, providing a true 2" suspension lift, increased ground clearance, improved approach, breakover and departure angles, and significantly enhanced ride control. The system combines the Striker 2" Lift Kit, VC-tuned Falcon 3.3 Fast Adjust shocks, and a Rear Mini Leaf Spring Pack to improve handling, comfort, load support, and off-road capability while preserving factory suspension geometry and wheel placement.
FEATURES
- Striker 2" Lift Kit — Raises the front and rear suspension while maintaining factory geometry, improving clearance and larger tire fitment.
- Falcon 3.3 Fast Adjust Shocks — 10-position external adjustment provides a broad tuning range from compliant off-road damping to firm highway control; rear shocks include SP2 adjusters.
- Rear Mini Leaf Spring Pack — Adds approximately 2" of rear lift, increases spring rate, and helps counteract sag from additional vehicle weight while maintaining OEM wheel position.
- Bump Buddy progressive foam jounce bumpers — Improve spring progression, sway control and bottom-out resistance while reducing harsh impacts and noise.
- Glide pads & U-bolts — Included for smooth, quiet installation.
- Bolt-on design — Requires no cutting, welding, or fabrication.
TUNING OPTIONS
- 7076-LM – Light/Mid Tune: Optimized for adventure vans, passenger vans, overlanders, and light-to-moderately equipped conversions.
- 7076-MH – Mid/Heavy Tune: Optimized for fully built conversions, overland rigs, and vans carrying substantial gear or rooftop equipment, providing increased damping and load control.

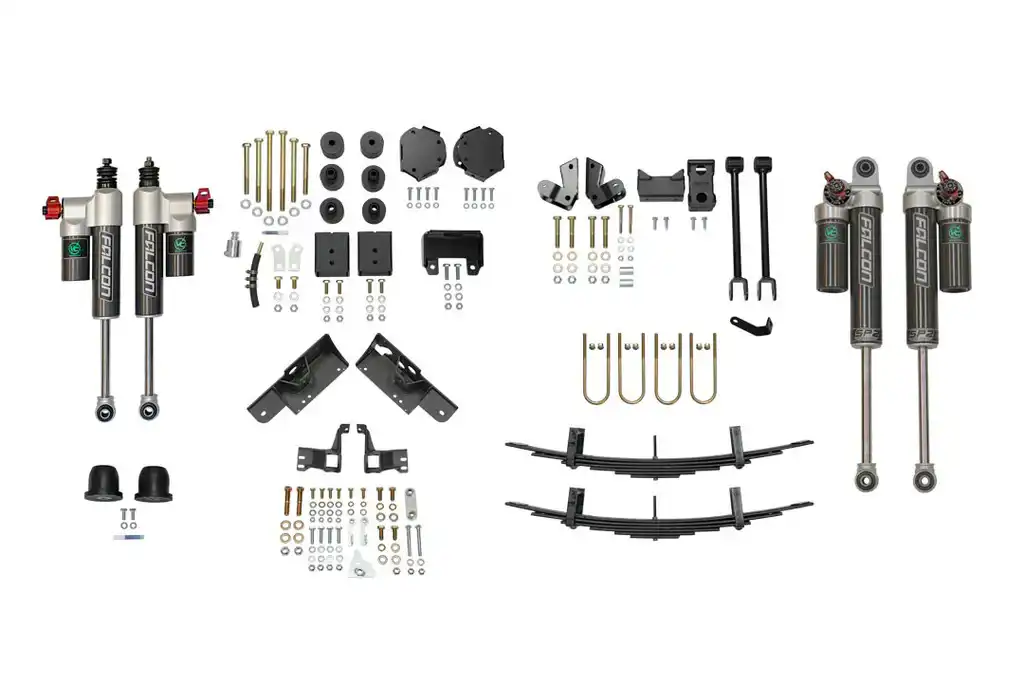

KIT INCLUDES
- Striker 2" front & rear lift kit
- Falcon 3.3 Fast Adjust front & rear shocks with mounting brackets and SP2
- Front Bump Buddy progressive foam jounce bumpers
- Rear Mini Leaf Spring Pack
- Dust boots for all four shocks
- Glide pads, U-bolts, required hardware and installation instructions
Installation & compatibility:
Bolt-on installation. Recommended wheel size is 17" × 8.5", +45 mm offset. Not compatible with Sumo Spring Rebel SSR-327-47-2 or SSR-327-40-2 kits due to bracket interference with the Falcon shock body.
2015-2018 NCV3 4x4 Striker 2" Front Kit Installation Instructions
2015-2018 NCV3 4x4 Striker 2" Rear Kit Installation Instructions
2015+ Sprinter 4x4 Falcon Front Shock Installation Instructions
NCV3, VS30 Falcon 3.3 Rear Shock Installation Instructions
Sprinter AWD and 4x4 Front Bump Buddies installation instructions
Falcon 3.3 Shock Settings Guide
