12V heating under floor film

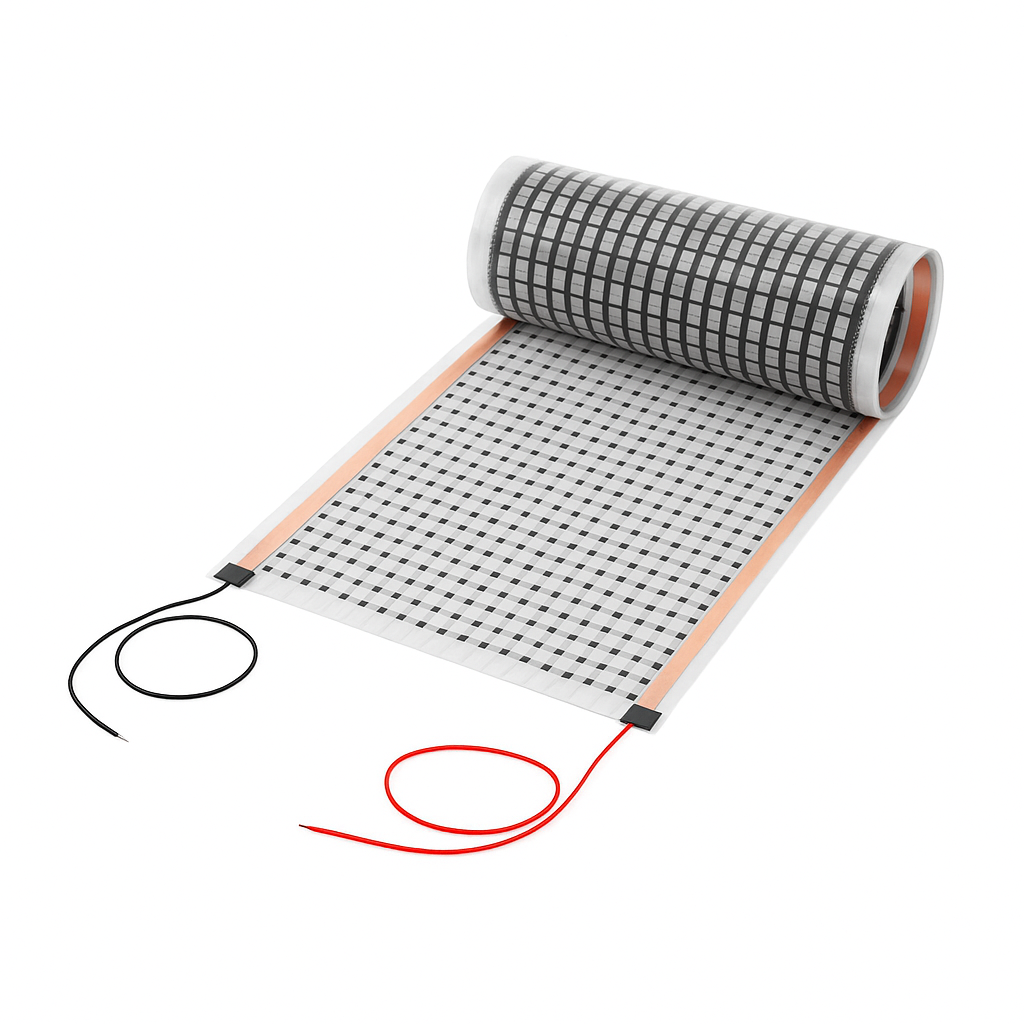

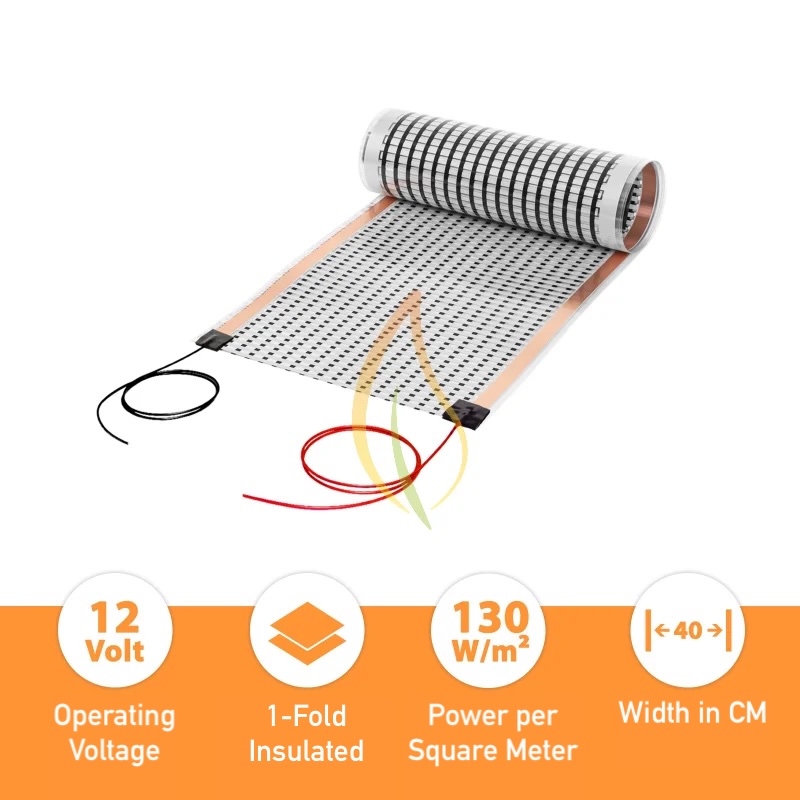

Carbon heating film 12V, 130W/m², 40cm wide

The carbon heating film is the perfect choice for anyone looking for a thin, lightweight and flexible heat source. With a minimum installation height of just 0.366 mm, the heating film can be integrated almost invisibly without compromising the existing room design or height. Thanks to its width of just 40 cm, it offers countless possibilities for realising individual heating projects efficiently and cost-effectively.

With a heat output of 130 W/m² (+/- 10%), the carbon heating film ensures fast and even heat distribution. The energy used is converted into heat with virtually no loss, resulting in an impressive thermal efficiency of 98%. In contrast to conventional heating systems, the heat transfer is based on harmless infrared radiation, which directly heats the objects above it - such as floor coverings or furniture - without swirling the air. This ensures pleasant, healthy and energy-efficient room warmth.

The 12V low-voltage technology not only makes the heating film particularly safe, but also allows it to be used in damp rooms or other sensitive areas. This makes the carbon heating film versatile - from classic underfloor heating systems to specialised technical solutions. Whether in living areas, mobile homes or for creative projects - the carbon heating film is flexible and reliable:

• Underfloor heating under floating floor coverings - also ideal for damp Rooms
• Temperature control of accumulators and batteries in motorhomes and vehicles
• Heating for terrariums, incubators or beehives
• Heating of propagation greenhouses and overwintering of sensitive plants
• Modelling and prototyping - perfect for creative and technical Solutions
• Mould prevention through targeted heating of problematic areas

The application possibilities are almost limitless and offer you the freedom to realise your individual heating Projects.

Features:

• Low installation height and weight - perfect for discreet installations
• Very high energy efficiency (98% thermal efficiency) for low operating Costs
• Easy, quick and safe Installation
• Favourable purchase costs with high Performance
• Flexible, robust and reliable - for long-term use
• Homogeneous heat distribution for a pleasant room Climate
• Long service life - reliable heating performance over many years

Technical data:

Operating voltage: 12 volts

Max. Power consumption: 130Watt/m² +/-10%

Heating surface per m²: approx. 74

Track width: 40cm

Active area: 37cm

IR wavelength: 7-14 micrometres

Temperature resistant: up to 80°C

Efficiency: 98%

Max. Track length: 4 metres in one piece

Can be shortened: Yes, approx. every 2.5 cm

Material thickness: 0.366 mm

-------------------------------------------------

Insulation: 2-ply, 1-layer insulationInfrared floor heating

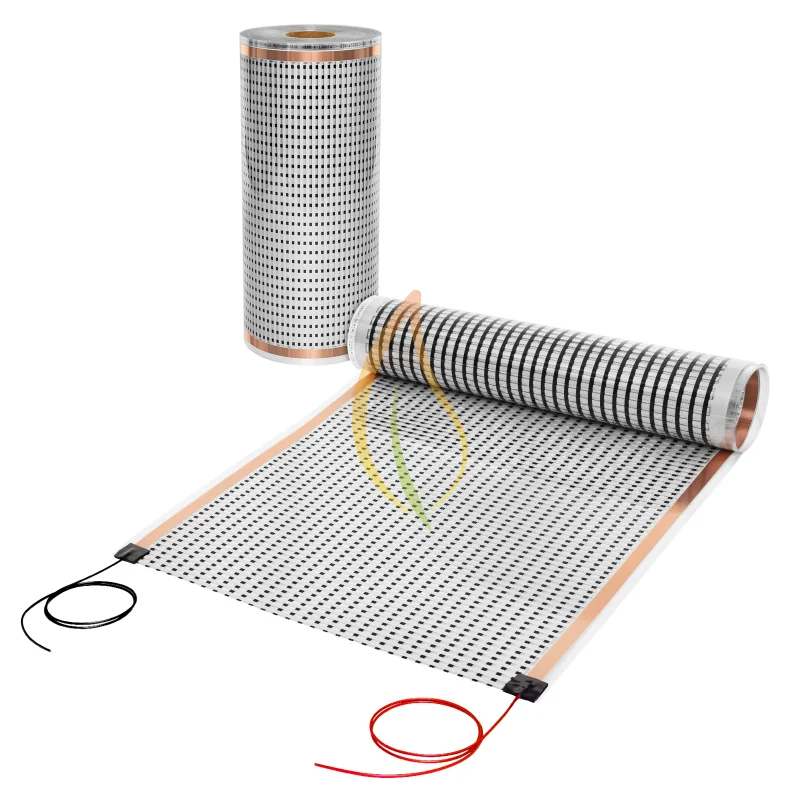

Heating foil also called carbon heating foil, is the thinnest version of electric floor heating.

It consists of two copper strips that supply an electrically conductive coating on a carrier material. Almost the entire surface within the heating foil heats up evenly and thus provides, Over the entire laid surface for pleasantly warm floor.

Compared to other electronic heating systems, the energy used is converted into infrared rays with almost no loss. What makes the infrared heating foil so efficient.

The 12Volt DC version offered here is ideal for use in the car, motor home or camping. The low voltage operation allows the use in own projects.

The surface reaches a temperature of 35-40C°, depending on the substrate and ambient temperature.

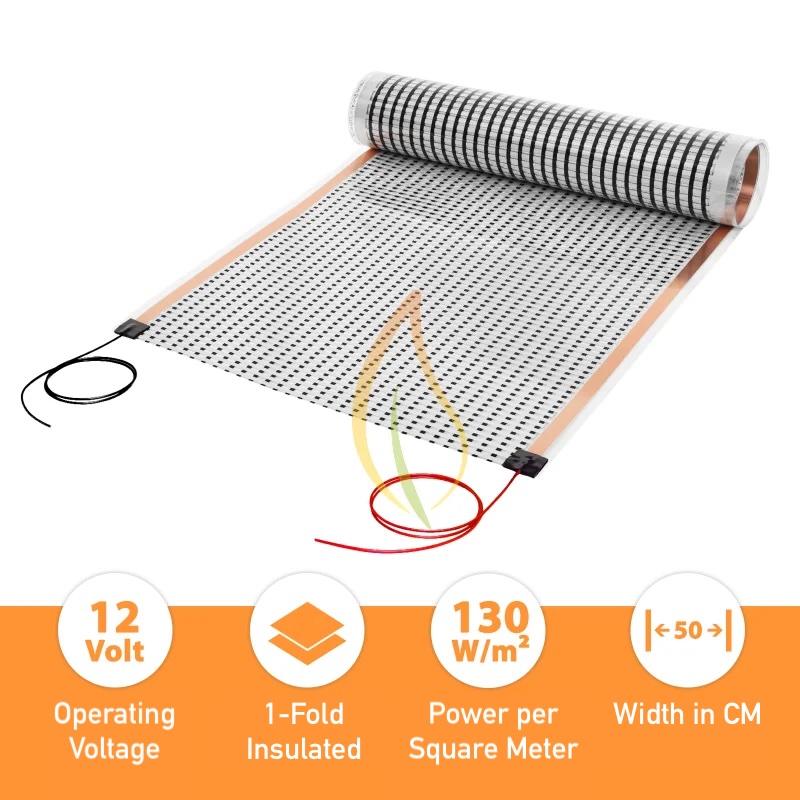

Technical data Heating film 50 CM

• Operating voltage: 12 Volts
• Max. Power consumption: 130 watts/m²
• Heating surface per m²: 74
• Path width: 50cm
• Active area: 47cm
• IR wavelength: 7-14 microns
• Temperature resistance: up to 80°C
• Efficiency: 98%
• Max. Web length: 3 meters in one piece
• Shortenable: Yes, every 2,5cm
• Material thickness: 0,366mm
• Insulation: 2-ply, 1-ply insulated
