M3 thermostat 12V AC/DC, black - For 12V Heating Film

12V AC/DC thermostat - Ideal for electric underfloor heating in caravans / motorhomes

Our M3-12V flush-mounted thermostat offers an ideal solution for precisely controlling the temperature of electric underfloor heating or other low-voltage heating systems. Equipped with both internal and external temperature sensors, it ensures reliable control of the room climate. Thanks to the flexible power supply, which works with both 12 volts DC and AC voltage, the thermostat can switch loads with a maximum current of 20 amps (240 watts).

Its suitability for use in caravans or motorhomes is particularly noteworthy, as it is ideal for retrofitting electric underfloor heating in these vehicles. The simple programming makes operating the thermostat extremely user-friendly. There are three operating modes to choose from - off, eco mode and comfort mode - with individual temperature settings possible for each mode. A practical slide switch makes it easy to select the desired mode.

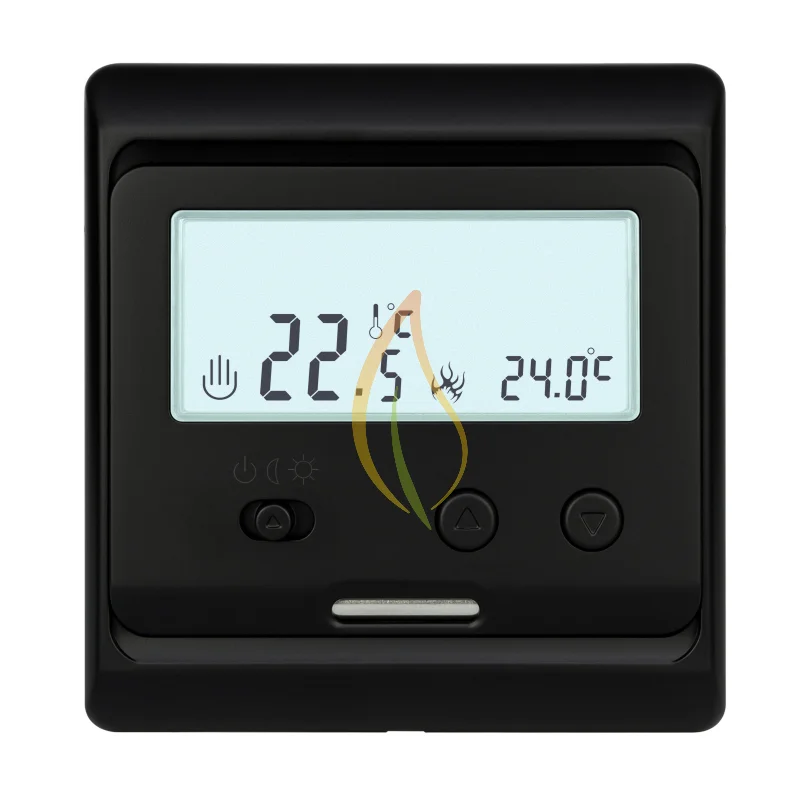

To control and monitor the room climate, the thermostat has a clear LCD display that shows the setpoint and the measured temperature value. It also provides a display for the switching status of the connected consumer so that you are always informed about the operating status. With our M3 flush-mounted thermostat, you can enjoy maximum comfort and control over your indoor climate.

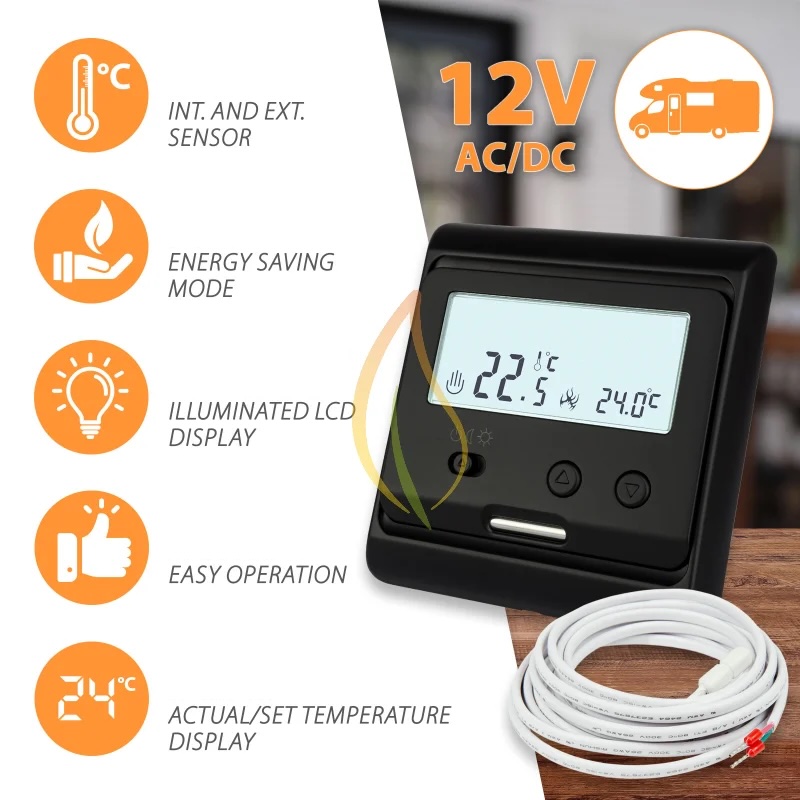

Features:

• 3 operating modes - off, eco mode, comfort mode
• internal and external temperature sensor
• Display of set and actual temperature
• Operation on 12V DC and AC voltage possible
• Powerful relay, loadable up to 20A / 240W

Technical data:

Mounting type: Flush-mounted

Version: Wired

Operating voltage: 12 Volt AC/DC

Max. Switching capacity: 20A / 240W

Control type: Two-point control ON - OFF

Operating temperature: 5-50°C

Sensor: Internal & external

Temperature control range (internal / room sensor): 5-95°C

Temperature control range (external / floor sensor): 5-95°C

Compatible NTC sensors: 10kOhm at 25°C

Frost protection: Yes, 5°C

Floor limitation range: 5-60°C

IP protection class: IP20

Display/illumination: Yes/Yes

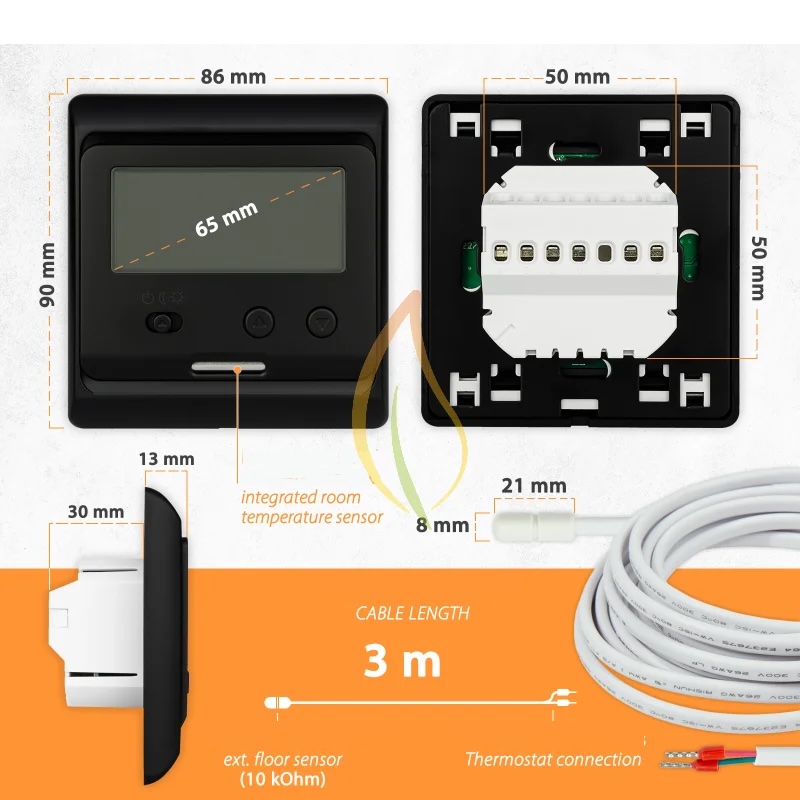

Dimensions: (WxHxD) 80x90x13/43mm

Scope of delivery:

1x Thermostat M3-12V

1x floor sensor NTC 10kOhm

1x operating instructions

1x mounting accessories
