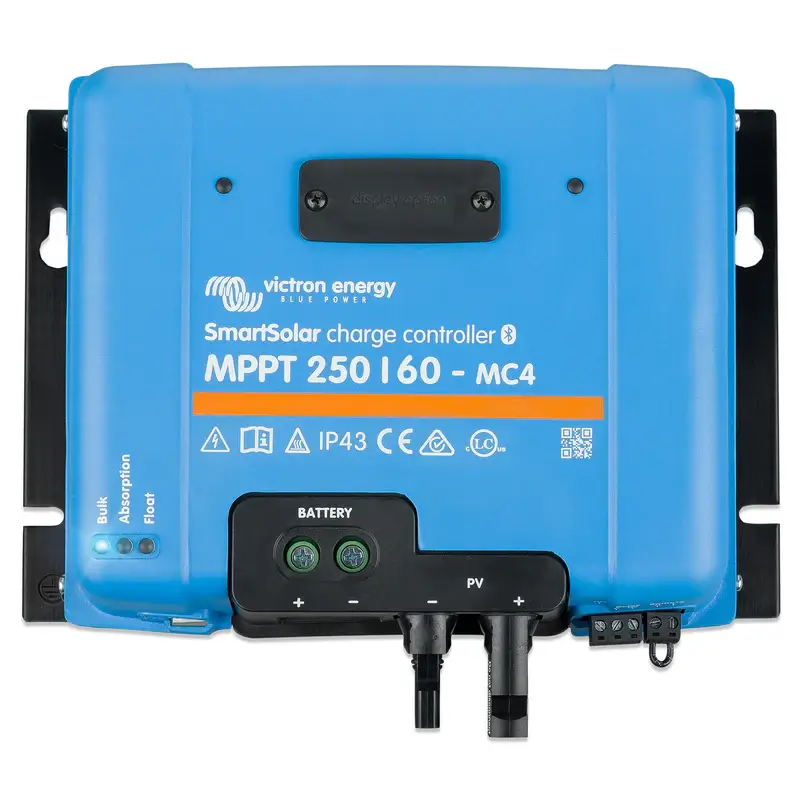

Victron Energy SmartSolar MPPT 250/60-MC4 Solar Charge Controller
100% original guarantee
Return within 30 days for most orders
Free delivery on most orders
BlueSolar and SmartSolar MPPT Charge Controllers Overview
Victron SmartSolar MPPT Charge Controller – Intelligent Solar Charging with Built-In Bluetooth
The Victron SmartSolar MPPT charge controller uses cutting-edge technology to efficiently collect energy from your solar panels and store it in your batteries. With ultra-fast tracking, intelligent shading algorithms, and built-in Bluetooth, it ensures optimal performance and extended battery life—even in challenging conditions.
Key Features
✔ Built-In Bluetooth Smart Technology
- Wirelessly configure, monitor, and update your controller
- Sync multiple units (up to 10) for parallel charging
✔ Ultra-Fast Maximum Power Point Tracking (MPPT)
-
Boosts energy harvest by:
- Up to 30% over PWM controllers
- Up to 10% over slower MPPT models
- Performs especially well in variable light (e.g., cloudy skies)
✔ Advanced MPPT for Partial Shading
- Detects multiple power points on the voltage curve
- Avoids locking onto suboptimal MPPTs
- Maximizes yield even when panels are partially shaded
✔ Exceptional Efficiency & Thermal Performance
- Conversion efficiency exceeds 98%
- Fanless cooling design
- Over-temperature and power derating protection
✔ Programmable Charge Algorithm
- Choose from 8 pre-set profiles via rotary switch
- Fully customizable via Victron software tools
Protection & Monitoring
✔ Extensive Electronic Protections
- PV short circuit, reverse polarity, and reverse current protection
- Over-temperature protection with derating control
- Fully discharged battery recovery — starts charging from 0V
- Compatible with Li-ion batteries with internal BMS
✔ Smart Sensor Compatibility
-
Integrates with:
- Smart Battery Sense
- BMV-712 Smart Monitor
- SmartShunt
- Shares battery voltage, temperature, and current data via Bluetooth
✔ VE.Direct Port
- Connects to Victron GX devices, PCs, and other systems via wired interface
✔ Programmable Relay & Remote On/Off
- Relay can be triggered by alarms or other events
- Remote control compatibility with VE.Bus BMS
✔ Optional Plug-In LCD Display
- Add an LCD display with a simple front plug-in (rubber seal protected)
Ideal For:
- Off-grid solar systems
- RV and marine setups
- Remote cabins and mobile battery banks
- Users seeking wireless monitoring and high-efficiency charging
