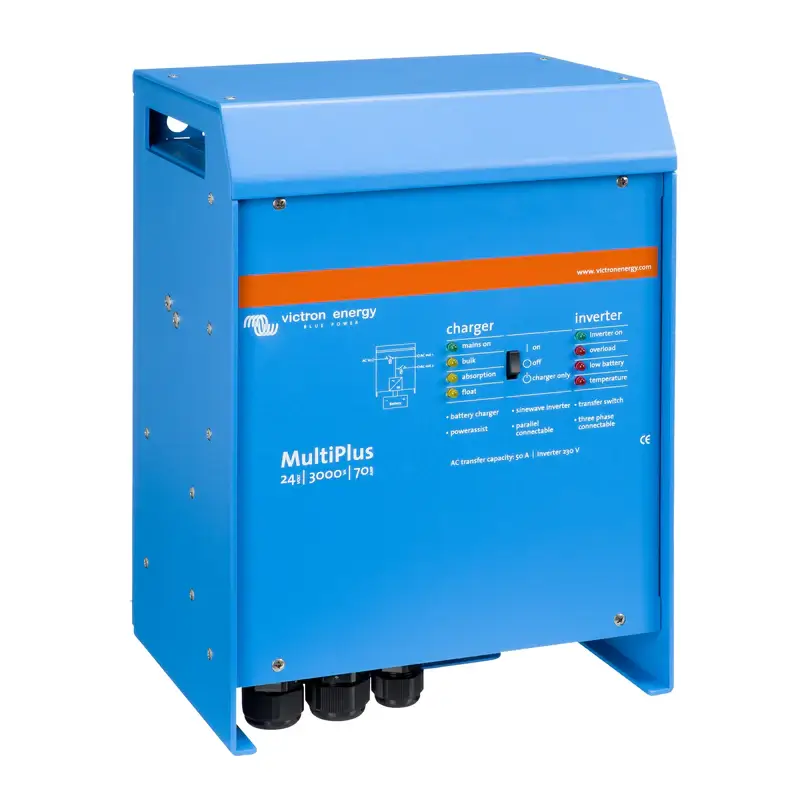

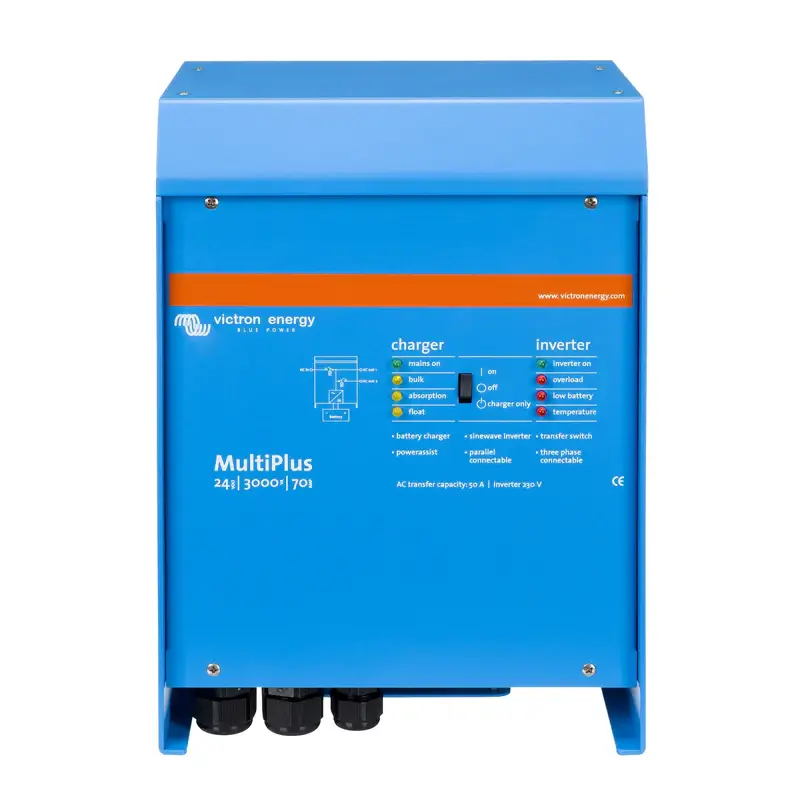

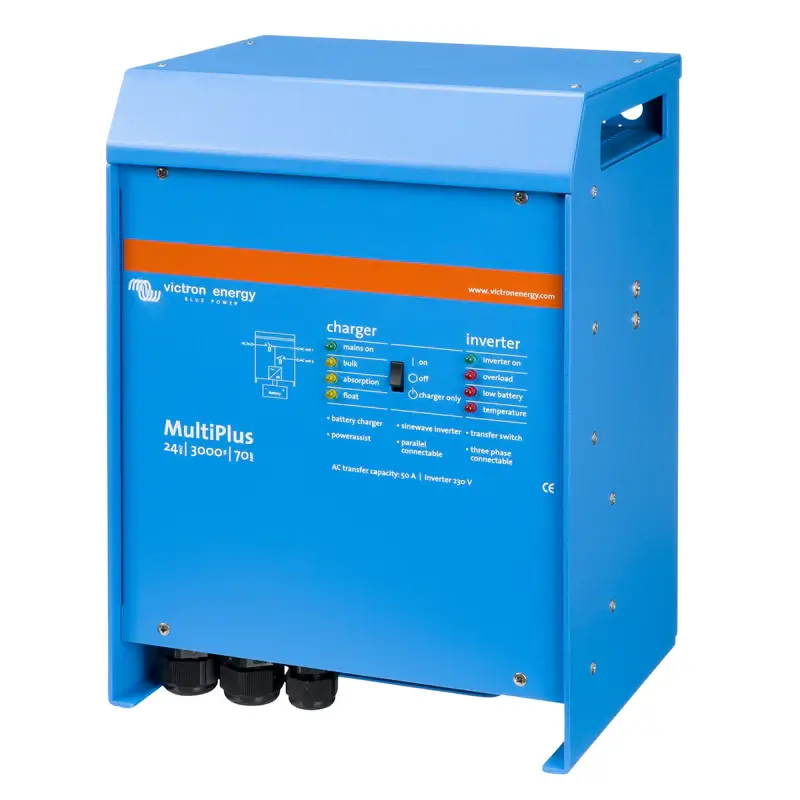

Victron Energy MultiPlus 24/3000/70-50 120V VE.Bus (UL Certified) Inverter/Charger

Datasheets

Manual

Victron Energy MultiPlus Inverter/Charger

Powerful, Adaptive, and Fully Integrated Power Solution

The Victron MultiPlus combines a pure sine wave inverter, advanced battery charger with adaptive charging, and high-speed AC transfer switch—all in one compact unit. Designed for versatility and performance, it's the go-to solution for mobile, off-grid, and backup power systems.

Key Features:

• True Sine Wave Inverter
  Delivers reliable 230V/120V AC output from 12V, 24V, or 48V DC battery systems.
• Advanced Battery Charger with Adaptive Technology
  Optimizes charge cycles to extend battery life. Includes four-stage charging and dual battery bank support.
• High-Speed AC Transfer Switch
  Ensures uninterrupted power (under 20ms switch-over) in the event of a grid or generator failure.

Intelligent Power Management:

• PowerControl
  Limits shore or generator input to prevent overload by dynamically adjusting charger output.
• PowerAssist
  Boosts generator or shore power using energy from the battery during high-demand periods.

Multiple Output Options:

• Dual AC Outputs
  • Primary output: seamless power during outages.
  • Secondary output (3kVA+ models): live only with AC input—ideal for non-critical loads like water heaters.

Scalable System Integration:

• Parallel Capability
  Connect up to 6 units in parallel for increased output—e.g., six 24/3000/70 units deliver 15kW / 18kVA with 420A charge capacity.
• Three-Phase and Split-Phase Ready
  Configure 3 units for 3-phase power, or stack for 120/240V split-phase systems. Expandable up to 45kW / 54kVA.

Flexible Configuration & Control:

• Easy Setup
  Use DIP switches for basic configuration—no PC required. For advanced setup, use VE.Bus Quick Configure or System Configurator tools.
• Remote Monitoring & Control
  Connect to GX devices (like Cerbo GX) for full system visibility and remote management via the VRM Portal.

Applications:

Perfect for RVs, marine systems, off-grid homes, mobile workstations, and backup systems that demand intelligent and seamless energy management.
